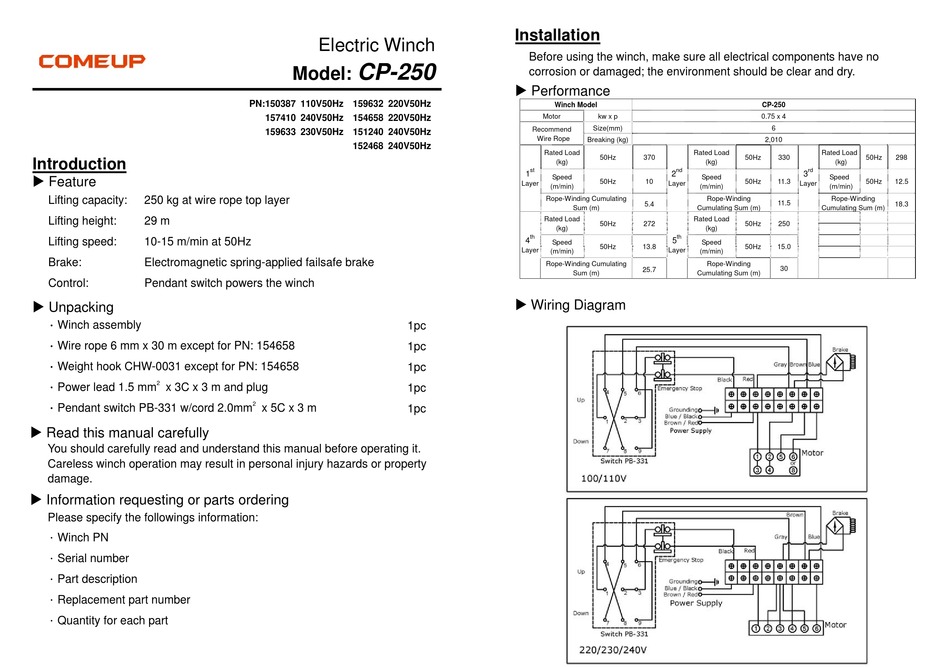

Comeup CP-250 Manual

Introduction
 Feature
Lifting capacity: 250 kg at wire rope top layer
Lifting height: 29 m
Lifting speed: 10-15 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m except for PN: 154658
．Weight hook CHW-0031 except for PN: 154658
2
．Power lead 1.5 mm
x 3C x 3 m and plug
．Pendant switch PB-331 w/cord 2.0mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

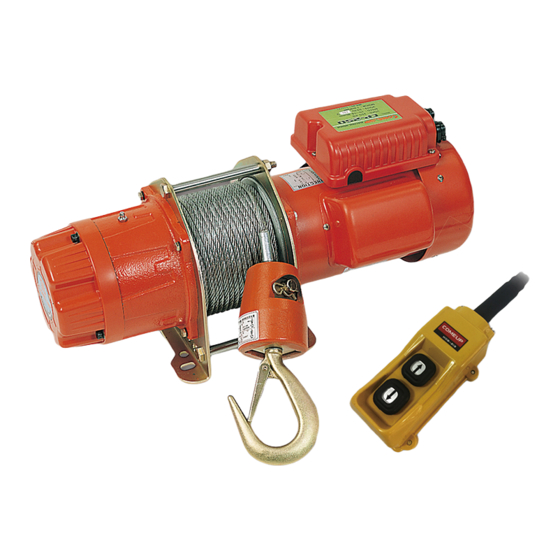

Electric Winch
CP-250
Model:
PN:150387 110V50Hz 159632 220V50Hz
157410 240V50Hz 154658 220V50Hz
159633 230V50Hz 151240 240V50Hz
152468 240V50Hz
1pc
1pc
1pc
1pc
2
x 5C x 3 m 1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load Rated Load
50Hz 370
(kg)
st nd
1 2
Speed
50Hz 10
Layer Layer
(m/min)
Rope-Winding Cumulating
5.4
Sum (m)
Rated Load Rated Load
50Hz 272
(kg)
th th
4 5
Speed
50Hz 13.8
Layer Layer
(m/min)
Rope-Winding Cumulating
25.7
Sum (m)
 Wiring Diagram
CP-250
0.75 x 4
6
2,010
Rated Load
50Hz 330 50Hz
(kg) (kg)
rd
3
Speed Speed
50Hz 11.3 50Hz
Layer
(m/min) (m/min)
Rope-Winding Rope-Winding
11.5
Cumulating Sum (m) Cumulating Sum (m)
50Hz 250
(kg)
Speed
50Hz 15.0
(m/min)
Rope-Winding
30
Cumulating Sum (m)
298
12.5
18.3
