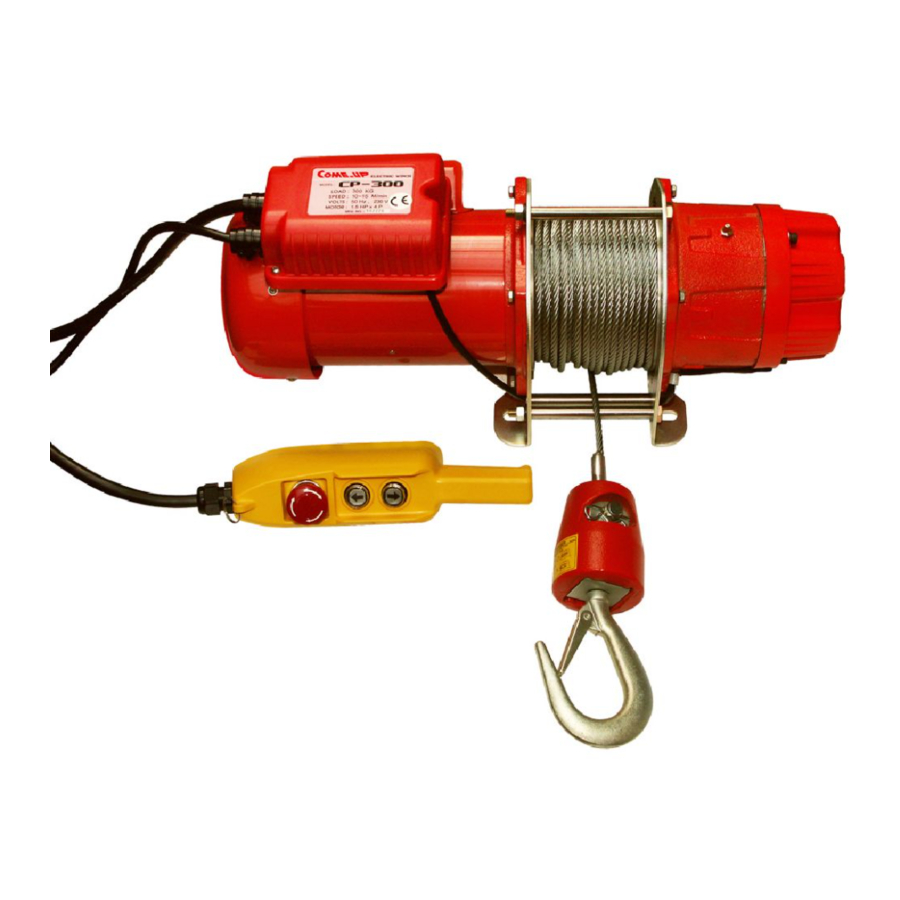

Comeup CP-300 Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 29 m
Lifting speed: 10-15 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 30 m except for PN:155252
．Wire rope 6 mm x 30 m A7x19 for PN:152383
．Weight hook CHW-0031 except for PN:155252
2
．Power lead 1.5 mm
x 3C x 3 m and plug
．Pendant switch PB-331 w/cord 2 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
．Serial number
．Replacement part number
Electric Winch
CP-300
Model:
PN: 153333 240V50Hz 154422 230V50Hz
155240 240V50Hz 155352 220V50Hz
155252 220V50Hz 152383 230V50Hz
152438 240V50Hz
1pc
1pc
1pc
1pc
1pc
2
x 5C x 3 m
1pc

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size(mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load
50Hz 444
(kg)
st nd
1 2
Speed
50Hz 10
Layer Layer
(m/min)
Rope-Winding Cumulating
5.4
Sum (m)
Rated Load
50Hz 327
(kg)
th th
4 5
Speed
50Hz 13.8
Layer Layer
(m/min)
Rope-Winding Cumulating
25.7
Sum (m)
 Wiring Diagram
CP-300
1.1 x 4
6
2,010
Rated Load Rated Load
50Hz 396 50Hz
(kg) (kg)
rd
3
Speed Speed
50Hz 11.3 50Hz
Layer
(m/min) (M/min)
Rope-Winding Rope-Winding
11.5
Cumulating Sum (m) Cumulating Sum (m)
Rated Load
50Hz 300
(kg)
Speed
50Hz 15
(m/min)
Rope-Winding
30
Cumulating Sum (m)
358
12.5
18.3
