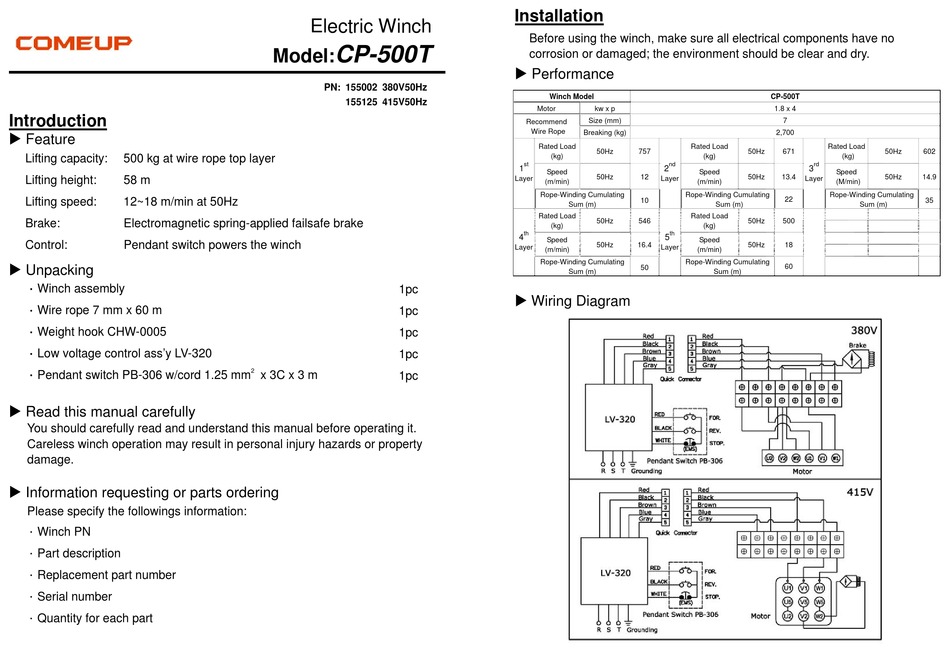

Comeup CP-500T Manual

Introduction
 Feature
Lifting capacity: 500 kg at wire rope top layer
Lifting height: 58 m
Lifting speed: 12~18 m/min at 50Hz
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 7 mm x 60 m
．Weight hook CHW-0005
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Replacement part number
．Serial number
．Quantity for each part
Electric Winch
CP-500T
Model:
PN: 155002 380V50Hz
155125 415V50Hz
1pc
1pc
1pc
1pc
2
x 3C x 3 m 1pc
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor kw x p
Size (mm)
Recommend
Wire Rope
Breaking (kg)
Rated Load Rated Load
50Hz 757
(kg)
st nd
1 2
Speed
50Hz 12
Layer Layer
(m/min)
Rope-Winding Cumulating Rope-Winding Cumulating
10
Sum (m)
Rated Load Rated Load
50Hz 546
(kg)
th th
4 5
Speed
50Hz 16.4
Layer Layer
(m/min)
Rope-Winding Cumulating Rope-Winding Cumulating
50
Sum (m)
 Wiring Diagram
CP-500T
1.8 x 4
7
2,700
Rated Load
50Hz 671
(kg) (kg)
rd
3
Speed Speed
50Hz 13.4
Layer
(m/min) (M/min)
Rope-Winding Cumulating
22
Sum (m) Sum (m)
50Hz 500
(kg)
Speed
50Hz 18
(m/min)
60
Sum (m)
50Hz 602
50Hz 14.9
35
