Summary of Contents for Trotec PAE 30

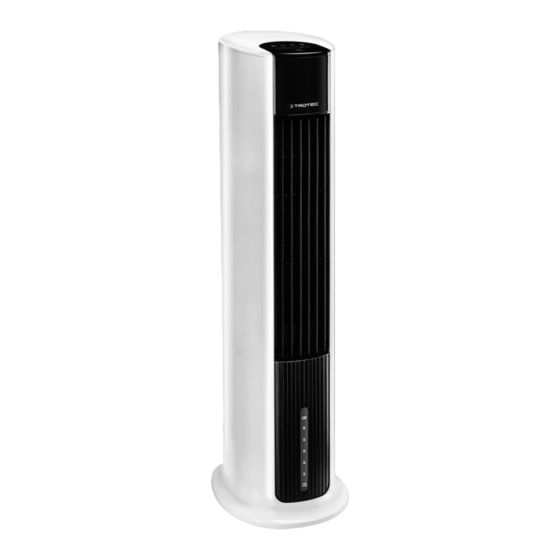

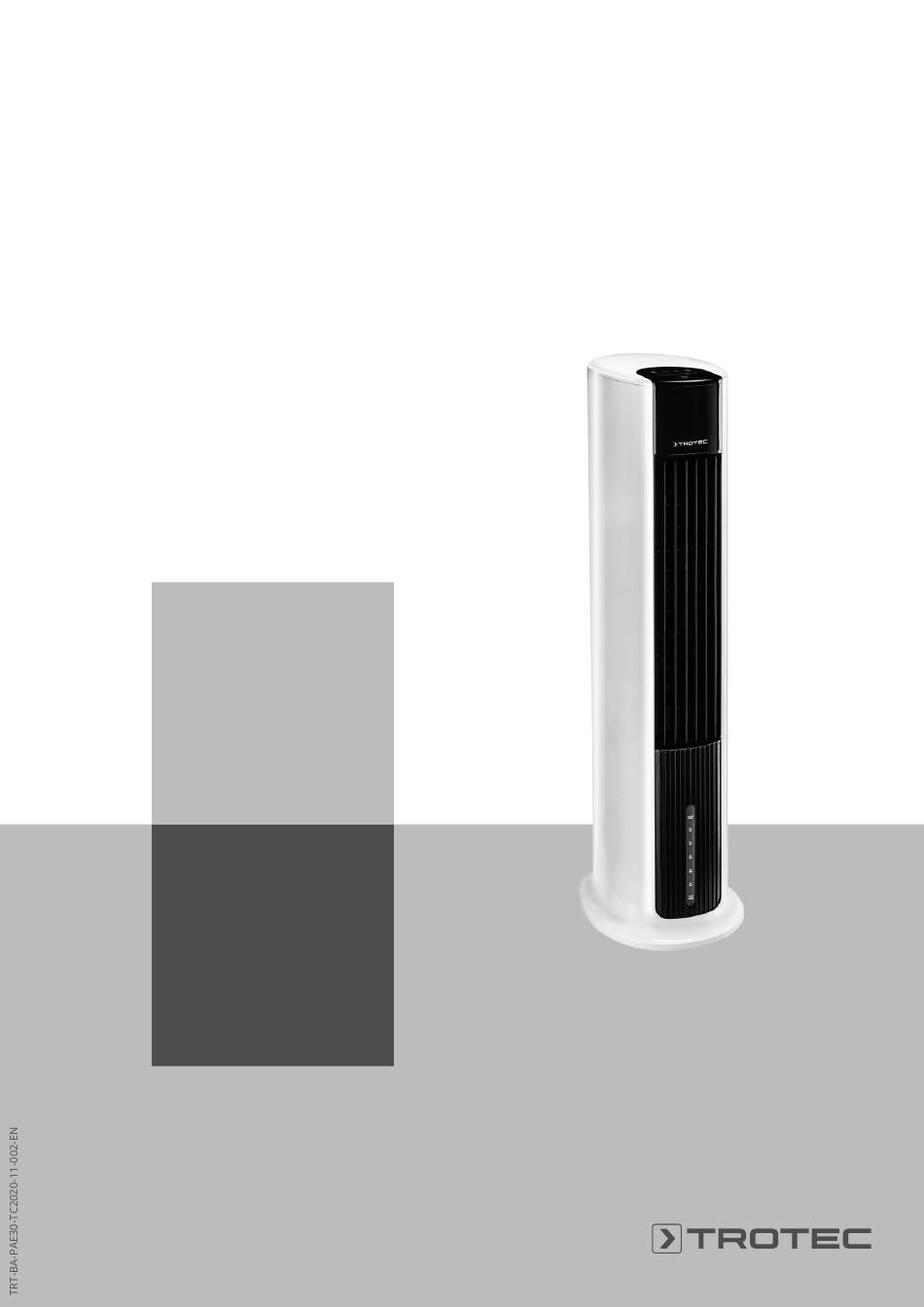

- Page 1 PAE 30 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
Follow the manual • Never insert any objects or limbs into the device. Information marked with this symbol indicates that the operating manual must be observed. Wear safety glasses Wear appropriate eye protection when working with the device. air cooler PAE 30... - Page 3 • Only transport the device in an upright position with an emptied water tank. • Empty the water tank before transport and storage. Do not drink the water. Health hazard! • Note that high humidity levels may enhance the growth of biological organisms in the environment. air cooler PAE 30...
- Page 4 2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. air cooler PAE 30...
-
Page 5: Information About The Device
Air inlet with air filter, holder for air filter and evaporation filter Locking clip for water tank Water tank with filling level indicator Power cable holder Holder for air filter Air filter Evaporation filter Ice packs Remote control air cooler PAE 30... -
Page 6: Transport And Storage
• with a cover to protect it from invasive dust, if necessary • Place no further devices or objects on top of the device to prevent it from being damaged. • Remove batteries from the remote control. air cooler PAE 30... - Page 7 4. Release the pump and remove it from the water tank by turning the locking lever 90° in counter-clockwise Info direction. When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. air cooler PAE 30...
- Page 8 11. Make sure that the device is neither damp nor wet on the ð Observe the minimum and maximum filling level at the outside. Otherwise wipe it dry. filling level indicator. The water tank must be filled up at least to minimum filling level to enable pump operation. air cooler PAE 30...
- Page 9 Upon delivery the drip catcher is already Info preassembled. An acoustic signal will be emitted; the device is now in • Make sure that both the evaporation and the air filter are standby mode. installed before switching the device on. air cooler PAE 30...
-
Page 10: Operation
0.5 hours (0.5 h to 3 h) or in increments of 1 hour (3 h to 10 h) Setting the Automatic switch-off timer function in increments of 0.5 hours (0.5 h to 3 h) or in increments of 1 hour (3 h to 10 h) air cooler PAE 30... - Page 11 ð The set fan speed is indicated on the segment • automatic switch-off upon expiry of a preset number of display (24). hours. The number of hours can be set in increments of 0.5 hours (0 h to 3 h) or in increments of 1 hour (3 h to 10 h). air cooler PAE 30...
- Page 12 ð The number of hours flashes on the segment Setting the Automatic switch- display (24) for approx. 5 s. off timer function in increments of 0.5 hours (0.5 h to 3 h) or in increments of 1 hour (3 h to 10 h) On / Off button Switching the device on or off air cooler PAE 30...
- Page 13 When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. 1. Disconnect the device from the mains before refilling water or putting ice packs into the device. air cooler PAE 30...
- Page 14 • Hold onto the mains plug while pulling the power cable out of the mains socket. • Empty and clean the water tank (see chapter Maintenance). • Clean the device according to the Maintenance chapter. • Store the device according to the Storage chapter. air cooler PAE 30...
-
Page 15: Available Accessories
Your device still does not operate correctly after these device is not starting, have the electrics checked by a checks? specialist company or by Trotec. Please contact the customer service. If necessary, bring the The device works with reduced or no capacity: device to an authorised specialist electrical company or to •... -
Page 16: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 30... - Page 17 Before a longer period of non-use or storage the water tank should be drained. 1. Release the water tank by turning the clip from its vertical position into the horizontal position. 2. Pull the water tank out a little from the device. air cooler PAE 30...
- Page 18 8. Dry the inside of the tank with a lint-free cloth. 9. Fill the water tank with fresh drinking water if you want to continue operation (see chapter Adding water). 10. Refit the water tank into the device. air cooler PAE 30...
- Page 19 1. Remove the air filter from the device. 9. Close the filter lock. 2. Open the filter lock. 10. Reinsert the air filter into the device. 3. Remove the evaporation filter from the air filter. 4. Remove the air filter from the retainer. air cooler PAE 30...
- Page 20 1. Remove the holder for the air filter from the device. 5. Insert the new evaporation filter into the holder for the air filter. 2. Open the filter lock. 6. Close the filter lock. air cooler PAE 30...
-
Page 21: Technical Annex
If you do not intend to use the device for a considerable time: other objects: • Store the device according to the Storage chapter. top (A): 100 cm rear (B): 100 cm sides (C): 100 cm front (D): 100 cm Remote control batteries Type AAA 1.5 V air cooler PAE 30... -
Page 22: Disposal
For further return options provided by us please refer to our website https://de.trotec.com/shop/. The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms... - Page 23 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
