Summary of Contents for Trotec PAE 22

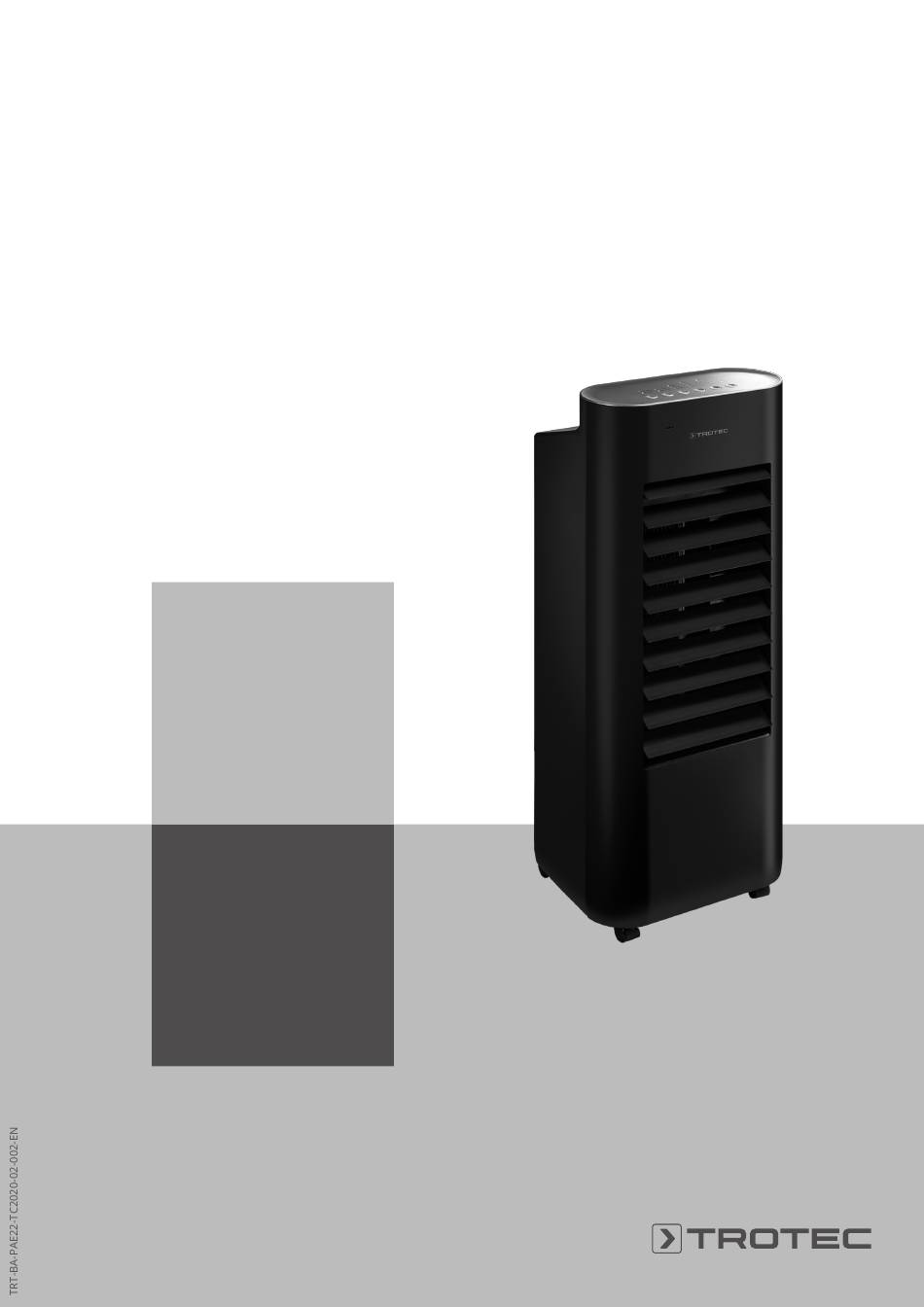

- Page 1 PAE 22 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
Do not leave the device unattended during operation. • Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. air cooler PAE 22... - Page 3 • Make sure that the water in the water thank is replaced every 3 days. Otherwise there is a risk of microorganisms growing in the water tank which presents a health hazard if they get into the air or water. air cooler PAE 22...
- Page 4 2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. air cooler PAE 22...
-
Page 5: Information About The Device
Air outlet with adjustable ventilation flaps and ventilation flaps with swing function Transport handle Water tank with filling level indicator Locking button for water tank Water filter Evaporation filter Air filter Holder for air filter Ice packs Remote control air cooler PAE 22... -
Page 6: Transport And Storage
• Only put up the device in an upright, stable position on firm ground. • Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. air cooler PAE 22... - Page 7 ð Observe the minimum and maximum filling level at the filling level indicator. The water tank must be filled up at least to minimum filling level to enable pump operation. air cooler PAE 22...
- Page 8 7. Lock the water tank by pressing in the water tank's locking • Insert the mains plug into a properly secured mains button (7). socket. 8. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 22...
-
Page 9: Operation
When Air cooling mode is activated, the air and the On / Off button. evaporation filter must not be removed, otherwise the Humidify button Switching the air cooling mode on water from the filter will drip down into the device. or off air cooler PAE 22... - Page 10 • automatic switch-on upon expiry of a preset number of hours. • automatic switch-off upon expiry of a preset number of hours. The number of hours can be between 1 and 15 and can be adjusted in increments of 1 h. air cooler PAE 22...
- Page 11 Low Water LED (14). In this case, the water tank must be refilled. The device requires fresh drinking water for air cooling: Note Fill the device with fresh drinking water only. The water temperature must not exceed 40 °C. air cooler PAE 22...
-
Page 12: Available Accessories
Designation Article number Evaporation filter PAE 22 7.710.000063 6. Reinsert the water tank (6) and lock it by pressing in the water tank's locking button (7). 7. Make sure that the device is neither damp nor wet on the outside. -
Page 13: Errors And Faults
• Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a Your device still does not operate correctly after these specialist company or by Trotec. checks? The device works with reduced or no capacity: Please contact the customer service. -
Page 14: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 22... - Page 15 Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. air cooler PAE 22...
- Page 16 8. Slide the water tank (6) back into the device. 9. Lock the water tank by pressing in the water tank's locking button (7). ð Make sure that the tank is pushed in entirely, otherwise the pump will not work. air cooler PAE 22...
- Page 17 The evaporation filter should be replaced in case of heavy soiling. In standard operation, the interval for replacing the evaporation filter is approx. 1 year. Allow the evaporation filter to dry before removing it from the device. air cooler PAE 22...
-
Page 18: Technical Annex
If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. air cooler PAE 22... -
Page 19: Disposal
For further return options provided by us please refer to our website https://de.trotec.com/shop/. The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms... - Page 20 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
