Summary of Contents for Trotec PAE 31

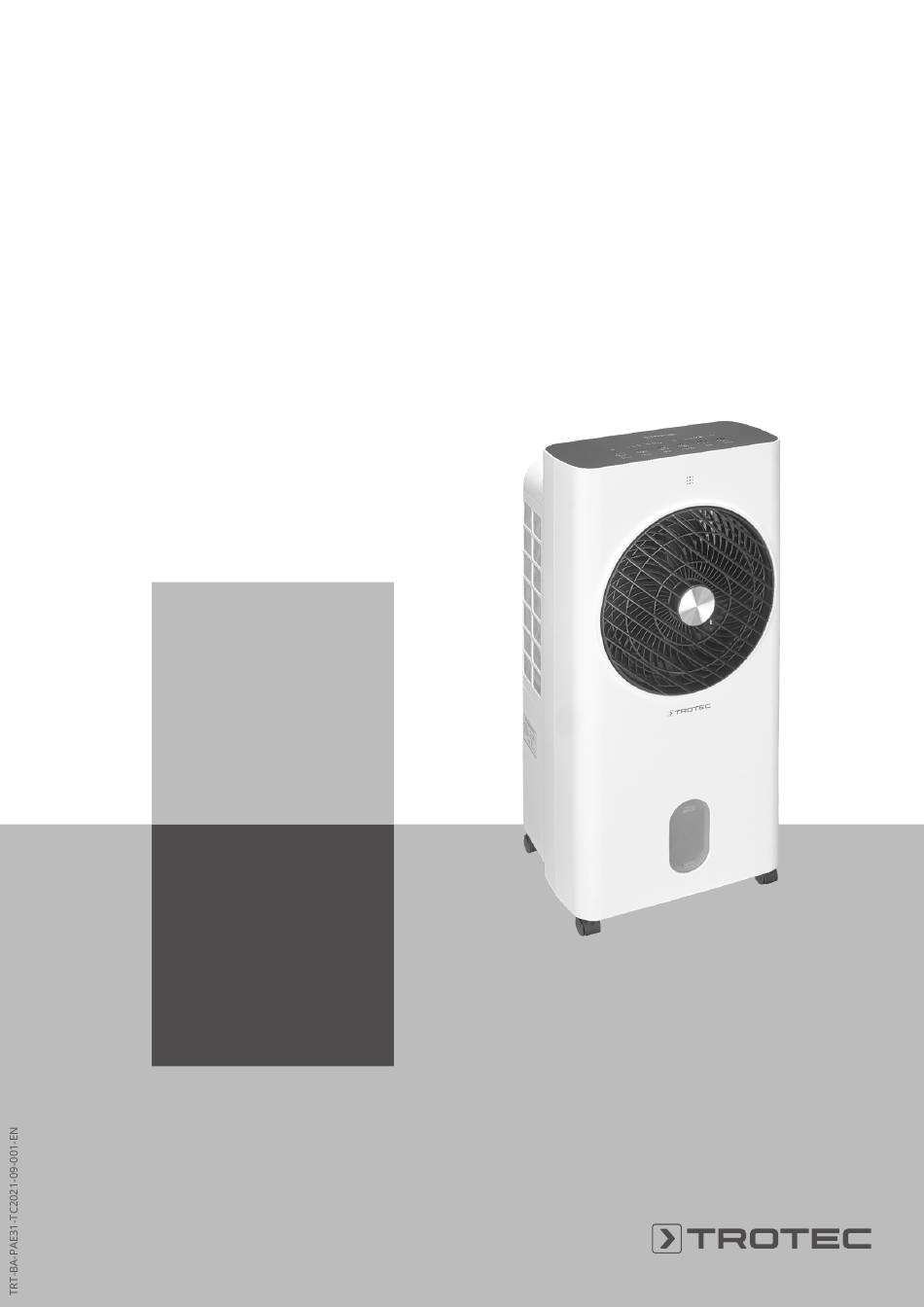

- Page 1 PAE 31 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
• Never insert any objects or limbs into the device. Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the operating manual must be observed. air cooler PAE 31... - Page 3 • Only transport the device in an upright position with an emptied water tank. • Empty the water tank before transport and storage. Do not drink the water. Health hazard! • Note that high humidity levels may enhance the growth of biological organisms in the environment. air cooler PAE 31...
-
Page 4: Information About The Device
Do not operate the device without an air filter inserted into the air inlet! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. air cooler PAE 31... - Page 5 Transport handle with compartment for the remote control Air inlet with air filter and evaporation filter Water tank with locking clips Air filter (front) Evaporation filter (front) Air filter (right side) Evaporation filter (side) Air filter (left side) Ice packs Remote control air cooler PAE 31...
-
Page 6: Transport And Storage
• Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. • Only put up the device in an upright, stable position on firm ground. air cooler PAE 31... - Page 7 • Put the ice packs into the water tank before filling water into the tank. Info When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. air cooler PAE 31...
- Page 8 Connecting the power cable horizontal position into the vertical position. • Insert the mains plug into a properly secured mains socket. 8. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 31...
-
Page 9: Operation
Mode button Selection button for ventilation, air freshening and night mode Speed button Increase or decrease fan speed air cooler PAE 31... - Page 10 The function can be set in addition in all operating modes. The number of hours can be set to 1 h, 2 h, 4 h or 8 h. Screen button Switching the LEDs on the control panel on or off air cooler PAE 31...
- Page 11 Do not touch the mains plug with wet or damp hands. Hold onto the mains plug while pulling the power cable out of the mains socket. Info If possible, change the water every 3 days to prevent bacterial growth. air cooler PAE 31...
-
Page 12: Available Accessories
Designation Article number Evaporation filter PAE 31 7.710.000.064 Air filter PAE 31 7.710.000.065 8. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 31... -
Page 13: Errors And Faults
• Check whether the distance between remote control and specialist company or by Trotec. device is too large and reduce it if necessary. The device works with reduced or no capacity: •... -
Page 14: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 31... - Page 15 Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. air cooler PAE 31...
- Page 16 3. Clean the filters using a slightly damp, soft, lint-free cloth. If the filters are heavily contaminated, clean them with warm water mixed with a neutral cleaning agent. 4. Allow the filters to dry completely. Do not put any wet filters into the device! air cooler PAE 31...
- Page 17 In standard operation, the interval for replacing the evaporation filter is approx. 1 year. Allow the evaporation filter to dry before removing it from the device. 1. Remove the front air filter (8) from the device. 6. Reinsert the front air filter (8) into the device. air cooler PAE 31...
- Page 18 4. Remove both side evaporation filters (11) from the device. 3. Remove both side air filters (10 and 12) from the device. 5. Dispose of used evaporation filters according to the national regulations. 6. Insert the new side evaporation filters (11) into the device. air cooler PAE 31...
- Page 19 If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. air cooler PAE 31...
-
Page 20: Technical Annex
220-240 V / 50 Hz administration. You can also find out about other return options Nominal current consumption 0.3 A that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an Power consumption 60 W official recycling centre for electronic and electrical equipment Sound pressure level (1 m... - Page 21 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
