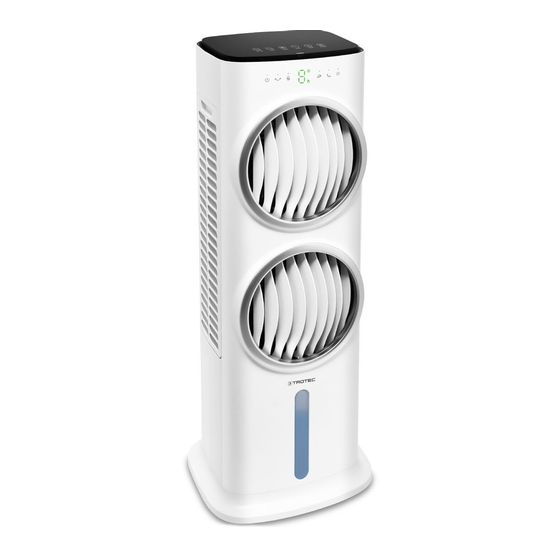

PAE 45
EN
OPERATING MANUAL
AIR COOLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAE 45 and is the answer not in the manual?

Questions and answers

Related Manuals for Trotec PAE 45

Summary of Contents for Trotec PAE 45

  • Page 1 PAE 45 OPERATING MANUAL AIR COOLER...

  • Page 2: Table Of Contents

    • Never insert any objects or limbs into the device. Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the operating manual must be observed. air cooler PAE 45...
  • Page 3 • Only transport the device in an upright position with an emptied water tank. • Empty the water tank before transport and storage. Do not drink the water. Health hazard! • Note that high humidity levels may enhance the growth of biological organisms in the environment. air cooler PAE 45...
  • Page 4 The following label is attached to the device in English. Before filling water into the water tank, make sure that you do not pull out the water tank beyond the horizontal line indicated by arrows (1) on both sides. Otherwise the device may tip over. air cooler PAE 45...

  • Page 5: Information About The Device

    2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. air cooler PAE 45...
  • Page 6 Filling level indicator of the water tank Transport handle with compartment for the remote control Air inlet with air filter and evaporation filter Water tank with locking clips Evaporation filter (both sides) Air filter (both sides) Ice packs Remote control Air filter (rear) Evaporation filter (rear) air cooler PAE 45...

  • Page 7: Transport And Storage

    • Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. • Only put up the device in an upright, stable position on firm ground. air cooler PAE 45...
  • Page 8 • Put the ice packs into the water tank before filling water into the tank. Info When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. air cooler PAE 45...
  • Page 9 The water tank (7) must be filled up at least to minimum filling level to enable pump operation. 8. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. 6. Refit the water tank (7) completely back into the device. air cooler PAE 45...
  • Page 10 • Make sure that both the evaporation and the air filter are installed before switching the device on. Connecting the power cable • Insert the mains plug into a properly secured mains socket. air cooler PAE 45...

  • Page 11: Operation

    Air cooling Switching the air cooling mode on or button Ventilation LED Illuminated when ventilation mode is activated Night mode LED Illuminated when night mode is activated Air freshening Illuminated when air freshening mode is activated air cooler PAE 45...
  • Page 12 ð The segment display (23) indicates the set number of hours and the h symbol. ð The timer programming is activated. ð The timer setting equals the desired number of hours. ð The device switches off automatically after the set number of hours has elapsed. air cooler PAE 45...
  • Page 13 Any activated timer will not be saved in the device. Air cooling button Switching the air cooling mode on or off Screen button Switching the LEDs on the control panel on or off air cooler PAE 45...
  • Page 14 2. Release the water tank (7) by turning both clips from their filling level indicator. vertical position into the horizontal position. The water tank (7) must be filled up at least to minimum filling level to enable pump operation. air cooler PAE 45...

  • Page 15: Available Accessories

    7. Lock the water tank (7) by turning the clips from their horizontal position into the vertical position. Designation Article number Evaporation filter PAE 45 7.710.000.067 Air filter PAE 45 7.710.000.066 8. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 45...

  • Page 16: Errors And Faults

    • Check whether the device is set up in a stable and upright device is not starting, have the electrics checked by a position. specialist company or by Trotec. The device does not respond to the infrared remote control: The device works with reduced or no capacity: •...

  • Page 17: Maintenance

    10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 45...
  • Page 18 Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. air cooler PAE 45...
  • Page 19 5. Thoroughly rinse the water tank in a sink or similar. 6. Thoroughly rinse the water tank with household vinegar (descaling agent). 7. Then rinse the inside of the device with water. 8. Dry the inside of the water tank with a lint-free cloth. air cooler PAE 45...
  • Page 20 Ensure that the air filters are neither worn nor damaged. The corners and edges of the air filters must not be deformed or rounded. Before reinserting the air filters, make sure that they are undamaged and dry! air cooler PAE 45...
  • Page 21 3. Clean the filters using a slightly damp, soft, lint-free cloth. If the filters are heavily contaminated, clean them with warm water mixed with a neutral cleaning agent. 4. Allow the filters to dry completely. Do not put any wet filters into the device! air cooler PAE 45...
  • Page 22 6. Insert the new rear evaporation filter (13) on the device. 7. Reinsert the rear air inlet (12) with air filter back on the device. 3. Remove the air inlets (9) with air filters from both sides of the device. air cooler PAE 45...

  • Page 23: Technical Annex

    If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. air cooler PAE 45...

  • Page 24: Disposal

    You can also find out about other return options that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an official recycling centre for electronic and electrical equipment authorised for your country.
  • Page 25 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
