Summary of Contents for Trotec PAE 40

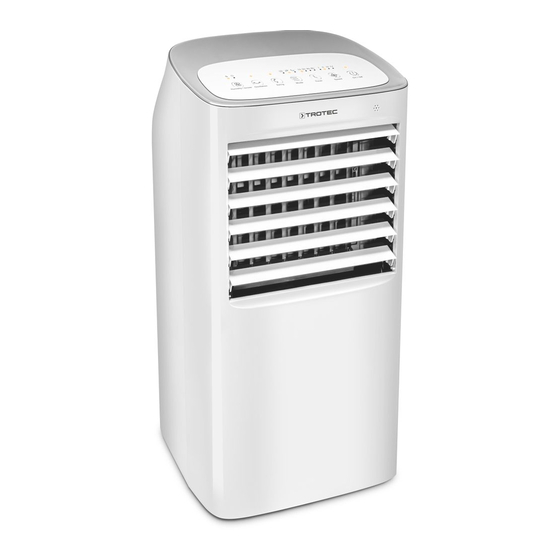

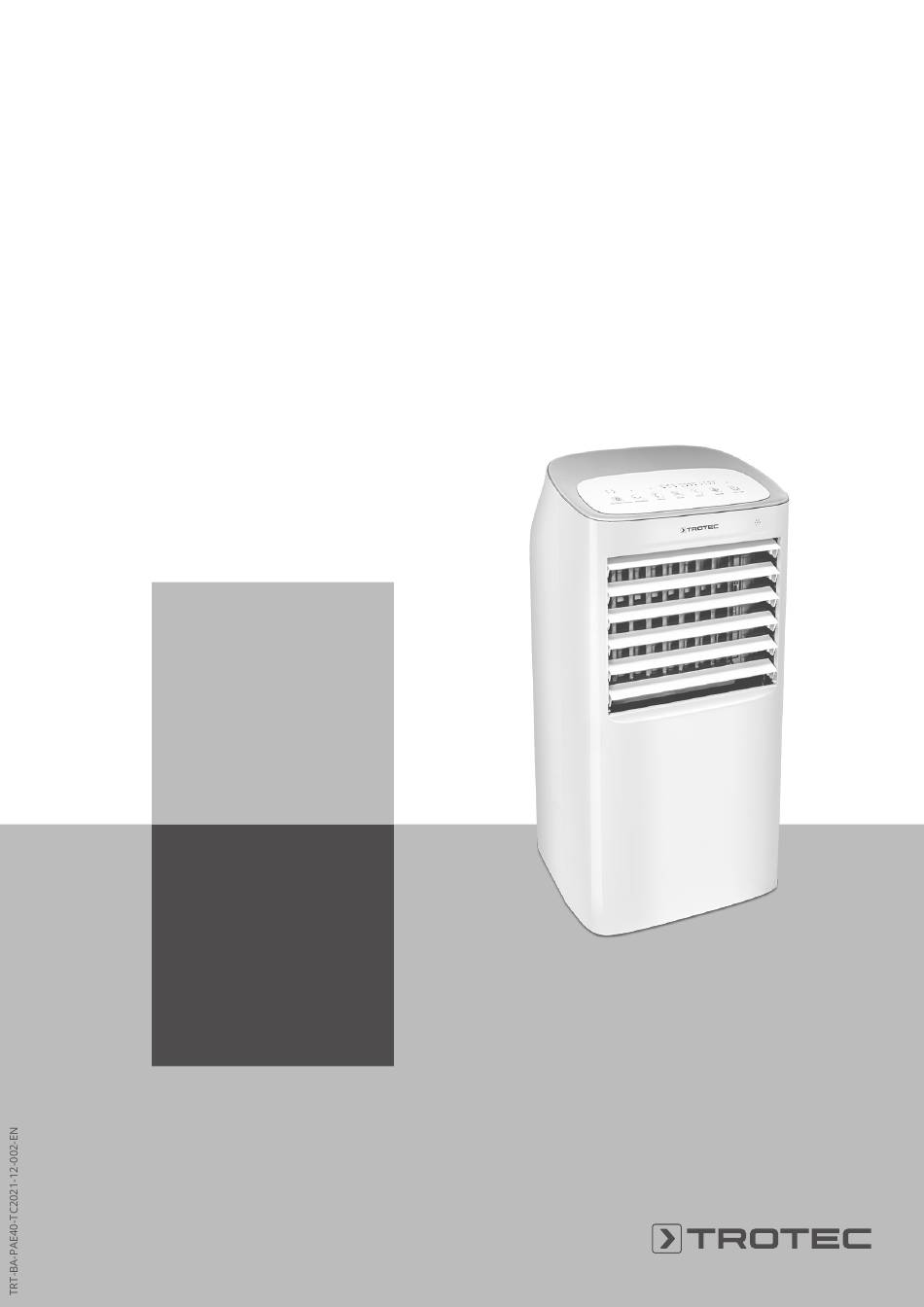

- Page 1 PAE 40 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
Do not leave the device unattended during operating manual must be observed. operation. • Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. air cooler PAE 40... - Page 3 • Make sure that the water in the water thank is replaced every 3 days. Otherwise there is a risk of microorganisms growing in the water tank which presents a health hazard if they get into the air or water. air cooler PAE 40...
- Page 4 2. In an emergency, disconnect the device from the mains feed-in: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. air cooler PAE 40...
-
Page 5: Information About The Device
Water tank with filling level indicator Wheels Transport handle (with compartment for the remote control) Air inlet with holder, air filter and evaporation filter Water outlet with rubber stopper Evaporation filter Air filter Ice packs Remote control air cooler PAE 40... -
Page 6: Transport And Storage
• Only put up the device in an upright, stable position on firm ground. • Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. air cooler PAE 40... - Page 7 Note If the device has been in continuous operation for 15 h, it will automatically switch off after 15 h. 1. Disconnect the device from the mains before refilling water or putting ice packs into the device. air cooler PAE 40...
- Page 8 Without the air filter, the inside of the device will be heavily contaminated. This could reduce the Info performance and result in damage to the device. An acoustic signal will be emitted; the device is now in standby mode. air cooler PAE 40...
-
Page 9: Operation
1h, 2h, 4h and/or 8h Speed LEDs Fan speed indication: Stage 1 = low Stage 2 = medium Stage 3 = high Stage 4 = very high On/Off LED Illuminated when the device is switched on air cooler PAE 40... - Page 10 Notes regarding automatic switch-on and switch-off: ð The corresponding Speed LED (21) will be illuminated. • Pressing the On/Off button (23) deactivates the automatic switch-on and switch-off function. • If the power supply is interrupted, the timer will be deactivated. air cooler PAE 40...
- Page 11 Ionization can be switched on in any operating mode. 1. Press the Oscillation button (28) to switch the horizontal swing function on or off. ð The Oscillation LED (15) is illuminated. air cooler PAE 40...
- Page 12 Note If the device has been in continuous operation for 15 h, it will automatically switch off after 15 h. 1. Disconnect the device from the mains before refilling water or putting ice packs into the device. air cooler PAE 40...
-
Page 13: Available Accessories
• Hold onto the mains plug while pulling the power cable out of the mains socket. • Empty and clean the water tank (see chapter Maintenance). • Clean the device according to the Maintenance chapter. • Store the device according to the Transport and storage chapter. air cooler PAE 40... -
Page 14: Errors And Faults
The device still does not operate correctly after these device is not starting, have the electrics checked by a checks: specialist company or by Trotec. Please contact the customer service. If necessary, bring the The device works with reduced or no capacity: device to an authorised specialist electrical company or to •... -
Page 15: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 40... - Page 16 Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. air cooler PAE 40...
- Page 17 If the filter is heavily contaminated, clean it with warm water mixed with a neutral cleaning agent. 12. Fill the water tank with fresh drinking water if you want to continue operation (see Adding water). air cooler PAE 40...
- Page 18 1. Remove the holder, air filter and evaporation filter (7) from the device. 2. Remove the evaporation filter (9) and air filter (10) from the 6. Insert the holder, air filter and evaporation filter (7) into the holder (7). device. air cooler PAE 40...
- Page 19 Allow the evaporation filter to dry before removing it from the device. 1. Remove the holder, air filter and evaporation filter (7) from the device. 3. Dispose of used evaporation filter according to the national regulations. 4. Insert the new evaporation filter into the holder (7). air cooler PAE 40...
-
Page 20: Technical Annex
You can also find out about other return options that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an official recycling centre for electronic and electrical equipment authorised for your country. - Page 21 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
