- Page 1 PAE 21 INSTRUCTIONS AIR COOLER...
-
Page 2: Table Of Contents
• Occasionally observe the device during operation. • Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. air cooler PAE 21... - Page 3 • Do not make any unauthorised modifications, alterations or materials such as carpeting, curtains, sheers or tablecloths structural changes to the device. will not become damp. • Note that high humidity levels may enhance the growth of biological organisms in the environment. air cooler PAE 21...
- Page 4 Never use the device in areas where dripping, spraying 3. Do not reconnect a defective device to the mains. or running water can enter the device! Never immerse the device in water! air cooler PAE 21...
-
Page 5: Information About The Device

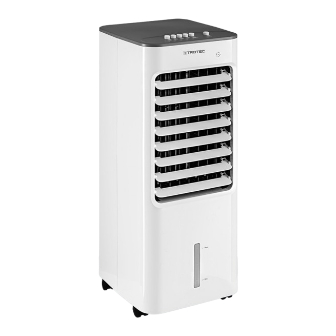

The device can be operated via the control panel at the device. Transport handle Device depiction Air inlet with air filter and evaporation filter Water tank with filling level indicator Wheels with parking brake Air filter Evaporation filter Ice packs air cooler PAE 21... -
Page 6: Transport And Storage
• If required, use a cover to protect the device from invasive dust. • Place no further devices or objects on top of the device to prevent it from being damaged. air cooler PAE 21... - Page 7 Observe the following before operating the device after a period of non-use or after the device has been stored: • Clean the housing and the water tank prior to recommissioning (see chapter Maintenance). air cooler PAE 21...
- Page 8 ð Observe the minimum and maximum filling level at the or putting ice packs into the device. filling level indicator. 2. Release the water tank by turning the clip upwards. The water tank must be filled up to minimum filling level to enable pump operation. air cooler PAE 21...
- Page 9 • Make sure that both the evaporation and the air filter are position into the vertical position. installed before switching the device on. 10. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 21...
-
Page 10: Operation
1. Press one of the fan speed buttons (13). ð The device activates ventilation at the corresponding fan speed. 2. Press the Off button (12) to switch off ventilation. Notice Please note that the device does not switch off automatically. air cooler PAE 21... - Page 11 Continue with step 6 in this case. Version B: Completely remove the water tank from the device and then fill the water tank. To do so, follow steps 4 and 5. air cooler PAE 21...
- Page 12 Hold onto the mains plug while doing so. • Empty and clean the water tank (see chapter Maintenance). • Clean the device according to the Maintenance chapter. • Store the device according to the Transport and storage chapter. air cooler PAE 21...
-
Page 13: Available Accessories
Only then switch the device back on. Designation Article number The device does not start: Evaporation filter PAE 21 7.710.000.865 • Check the power connection. • Check the power cable and mains plug for damage. • Check the on-site fusing. -
Page 14: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ 13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ air cooler PAE 21... - Page 15 8. Fill the water tank with fresh drinking water if you want to continue operation (see chapter Adding water). 9. Secure the pump in the water tank by inserting the pump into the retainer and turning the locking lever 90° clockwise. air cooler PAE 21...
- Page 16 Before reinserting the air filter, make sure that it is undamaged and dry! 8. Reinsert the air filter into the device. 1. Remove the air filter from the device. 2. Remove the evaporation filter from the air filter. air cooler PAE 21...
- Page 17 • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. 2. Remove the evaporation filter from the air filter. air cooler PAE 21...
-
Page 18: Technical Annex
/min)/W Standby mode power consumption Fan sound power level 58.15 dB(A) Maximum air velocity 1.07 Measurement standard EN ISO 5801:2017 for service value Contact details for Trotec GmbH ∙ Grebbener Straße 7 ∙ obtaining more 52525 Heinsberg information air cooler PAE 21... - Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
