Summary of Contents for Trotec PAE 35 HEPA

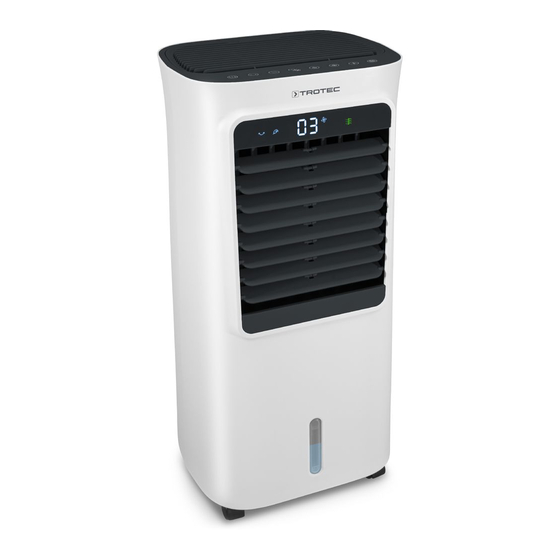

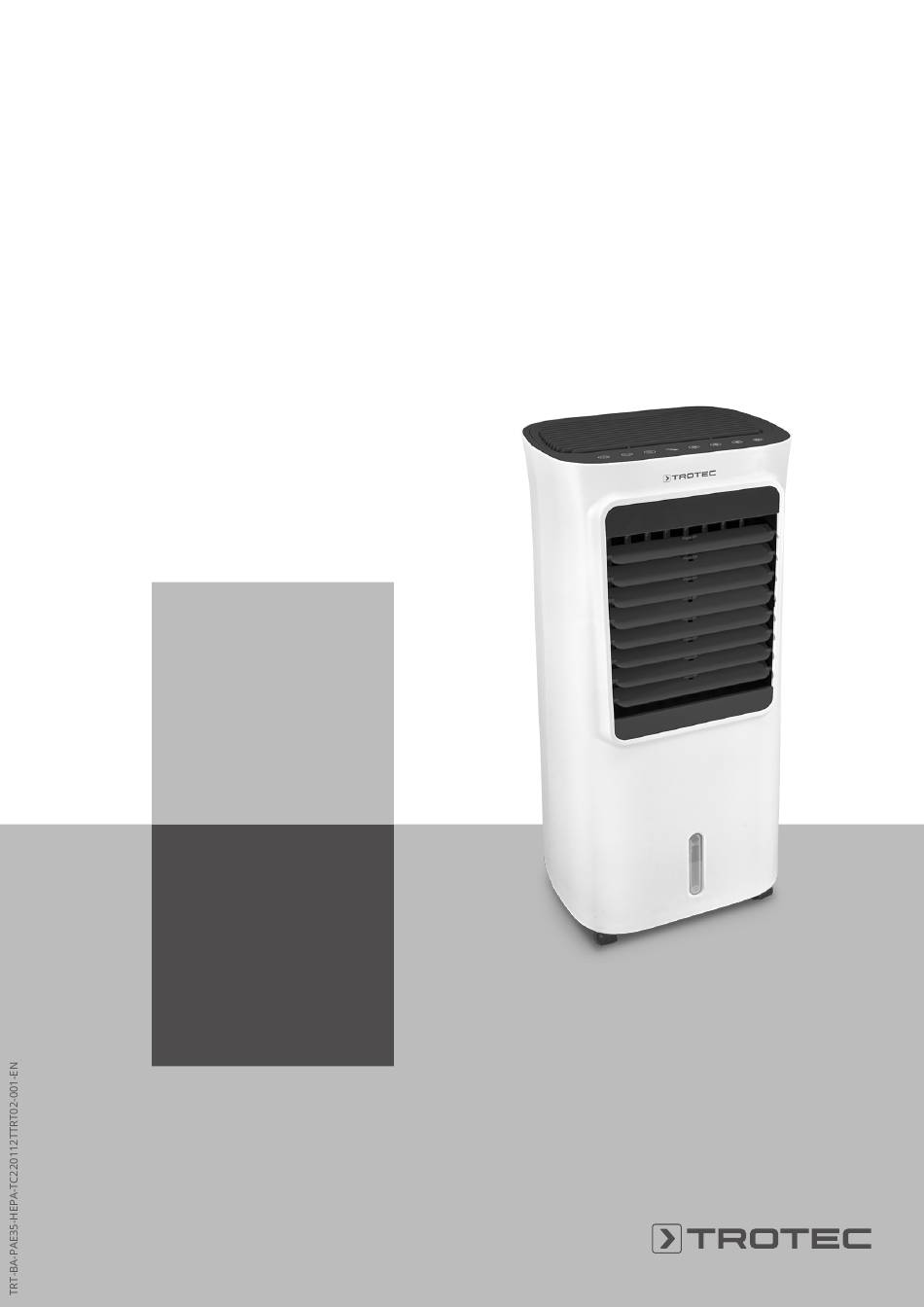

- Page 1 PAE 35 HEPA OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the operating manual must be observed. • Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts. air cooler PAE 35 HEPA... - Page 3 Ensure that absorbent materials such as carpeting, curtains, sheers or tablecloths will not become damp. • Note that high humidity levels may enhance the growth of biological organisms in the environment. air cooler PAE 35 HEPA...
- Page 4 Hold onto the mains plug while pulling the power Disconnect the device from the mains before cable out of the mains socket. cleaning the water tank. 3. Do not reconnect a defective device to the mains. air cooler PAE 35 HEPA...
-
Page 5: Information About The Device
Transport handle with compartment for the remote control Air quality sensor Air inlet with air filter and evaporation filter Water tank with locking clips Wheels (rear wheels wheels with parking brakes) HEPA filter Evaporation filter Air filter Ice pack Remote control air cooler PAE 35 HEPA... -
Page 6: Transport And Storage
• Remove batteries from the remote control. • Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service. air cooler PAE 35 HEPA... - Page 7 1. Disconnect the device from the mains before refilling water or putting ice packs into the device. 2. Release the water tank (9) by turning both clips from their vertical position into the horizontal position. air cooler PAE 35 HEPA...
- Page 8 Optionally, you can add ice cubes made of drinking water for additional cooling. ð Observe the minimum and maximum filling level at the filling level indicator (5). The water tank (9) must be filled up at least to minimum filling level to enable pump operation. air cooler PAE 35 HEPA...
- Page 9 Adjusting the ventilation flaps • Prior to switching the device on, adjust the ventilation flaps at the air outlet. Connecting the power cable • Insert the mains plug into a properly fused mains socket. air cooler PAE 35 HEPA...
-
Page 10: Operation
Filter LED Illuminated when the HEPA filter needs to be replaced Automatic air Illuminated when the automatic purification LED air purification function is activated Air purification LED Illuminated when air purification is activated air cooler PAE 35 HEPA... - Page 11 If there is only a small quantity or no water in the water tank, the air cooling mode is switched off after 45 seconds and an acoustic warning signal is emitted. air cooler PAE 35 HEPA...
- Page 12 If you activate air cooling, an alarm signal will be number of hours has elapsed. emitted when the water tank is empty, even in night Notes regarding automatic switch-on and switch-off: mode. • Pressing the on/off button (17) deactivates the automatic switch-on and switch-off function. air cooler PAE 35 HEPA...
- Page 13 ð The air quality sensor measures the air quality within 2. Press the On/Off button on the control panel or the remote one minute. The Automatic air purification LED (26) is lit control (17) if you like to terminate the evaporation filter in corresponding colours. drying function prematurely. air cooler PAE 35 HEPA...
-
Page 14: Available Accessories
• Check whether the distance between remote control and Designation Article number device is too large and reduce it if necessary. Evaporation filter PAE 35 HEPA 7,710,000,079 • Make sure there are no obstacles, such as furniture or Air filter PAE 35 HEPA 7,710,000,068 walls, between the device and the remote control. -
Page 15: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 35 HEPA... - Page 16 (e.g. if the unit has been stored for several months and is dusty). 1. Release the water tank (9) by turning the clips from their vertical position into the horizontal position. air cooler PAE 35 HEPA...
- Page 17 9. In doing so, make sure that the water tank (9) is inserted continue operation (see Adding water). correctly, for otherwise the device cannot be switched 7. Slide the water tank (9) completely back into the device. back on. air cooler PAE 35 HEPA...
- Page 18 3. Allow the filter to dry completely. Do not insert a wet filter into the device! 4. Reinsert the air inlet with air filter (13) into the device. 2. Dispose of used evaporation filters according to the national regulations. air cooler PAE 35 HEPA...
- Page 19 • Make sure that the HEPA filter is installed before switching the device on. 5. Place the grille (34) back onto the upper part of the device. 6. Press the Air purification button for 3 seconds (23) to carry out the filter reset. ð The Filter LED (25) goes out. air cooler PAE 35 HEPA...
-
Page 20: Technical Annex
100 cm sides (C): 100 cm Accumulators Regulations 2009 (2009/890), power tools that are no longer usable must be collected separately and disposed front (D): 100 cm of in an environmentally friendly manner. Remote control batteries 3 V CR2032 air cooler PAE 35 HEPA... - Page 21 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
