Summary of Contents for Trotec PAE 29

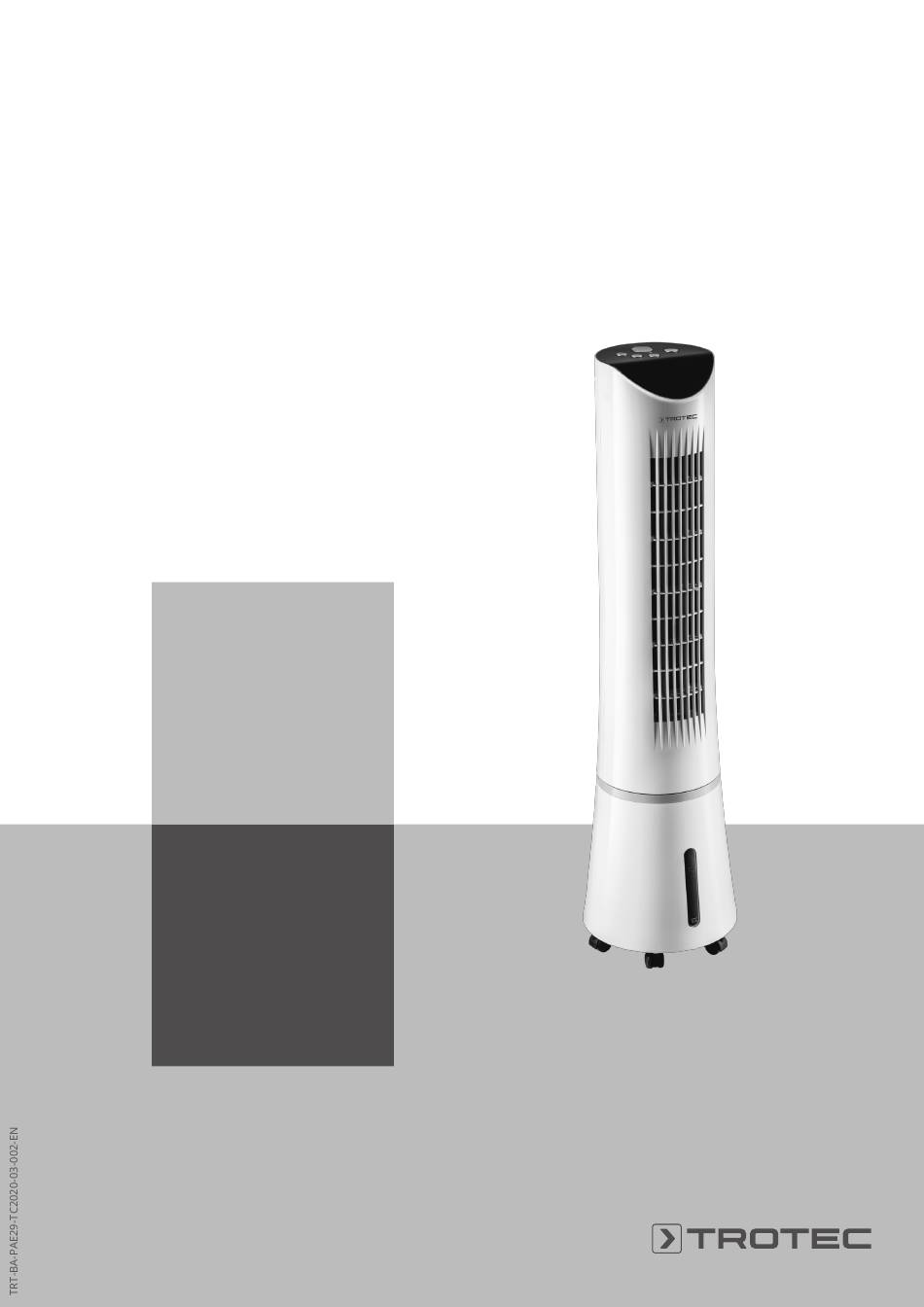

- Page 1 PAE 29 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
• Do not sit on the device. Wear safety glasses • This appliance is not a toy! Keep away from children and Wear appropriate eye protection when working with animals. Do not leave the device unattended during the device. operation. air cooler PAE 29... - Page 3 If moisture is present, the output must be reduced. If the output cannot be reduced, the device must only be operated in intervals. Absorbent materials such as carpeting, curtains, sheers or tablecloths must not become damp. air cooler PAE 29...
-
Page 4: Information About The Device
Dangers can occur at the device when it is used by untrained people in an unprofessional or improper way! Observe the personnel qualifications! Warning The device is not a toy and does not belong in the hands of children. air cooler PAE 29... - Page 5 Water tank with filling level indicator Wheels Transport handle and compartment for the remote control Air inlet with air filter and evaporation filter Water funnel Water outlet with rubber stopper Evaporation filter Air filter Ice packs Remote control air cooler PAE 29...
-
Page 6: Transport And Storage
• with a cover to protect it from invasive dust, if necessary • Place no further devices or objects on top of the device to prevent it from being damaged. • Remove batteries from the remote control. air cooler PAE 29... - Page 7 • Put the ice packs into the water tank before filling water into the tank. Info When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. air cooler PAE 29...
- Page 8 Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. • Make sure that both the evaporation and the air filter are installed before switching the device on. air cooler PAE 29...
-
Page 9: Operation
1 h – 9 h Fan speed LEDs Stage 1 = low Stage 2 = medium Stage 3 = maximum LED Air cooling Air cooling switched on Air freshening LED Air freshening switched on air cooler PAE 29... - Page 10 LED (22) changes. air circulation. 1. Press the Swing button (15) to switch the swing function on or off. ð With activated swing function, the Swing function LED (20) is illuminated. air cooler PAE 29...
- Page 11 • Hold onto the mains plug while pulling the power cable out of the mains socket. • Empty and clean the water tank (see chapter Maintenance). • Clean the device according to the Maintenance chapter. • Store the device according to the Storage chapter. air cooler PAE 29...
-
Page 12: Available Accessories
Article number The device does not respond to the infrared remote control: • Check whether the distance between remote control and Evaporation filter PAE 29 7.710.000.041 device is too large and reduce it if necessary. • Make sure there are no obstacles, such as furniture or Errors and faults walls, between the device and the remote control. -
Page 13: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... air cooler PAE 29... - Page 14 Before a longer period of non-use or storage the water tank should be drained. 1. Carefully transport or wheel the device to a suitable location for discharging the water (e.g. a drain) or position a suitable collection container underneath the water outlet. air cooler PAE 29...
- Page 15 7. Fill the water tank with fresh drinking water if you want to continue operation (see chapter Adding water). 2. Clean the filter using a slightly damp, soft, lint-free cloth. If the filter is heavily contaminated, clean it with warm water mixed with a neutral cleaning agent. air cooler PAE 29...
- Page 16 In standard operation, the interval for replacing the evaporation filter is approx. 1 year. Allow the evaporation filter to dry before removing it from the device. 1. Remove the air filter and the evaporation filter from the device. air cooler PAE 29...
-
Page 17: Technical Annex
If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. air cooler PAE 29... -
Page 18: Disposal
For further return options provided by us please refer to our website https://de.trotec.com/shop/. The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms... - Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
