Summary of Contents for Trotec PAE 51

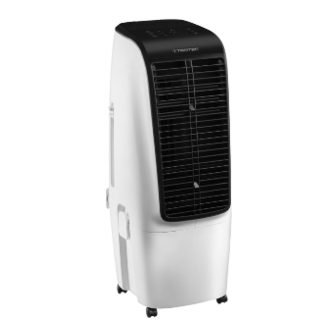

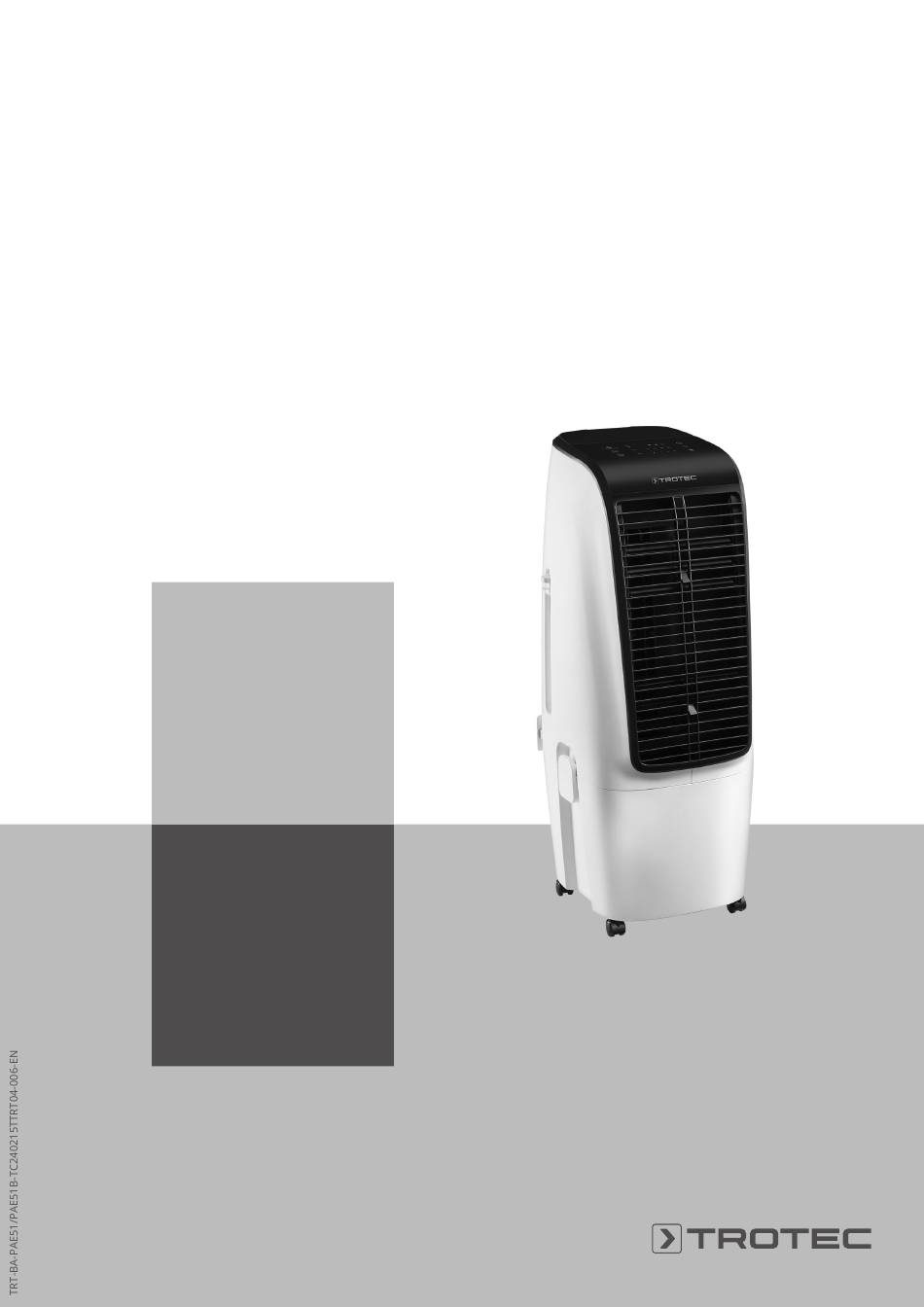

- Page 1 PAE 51 / PAE 51 B INSTRUCTIONS AIR COOLER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that you • Do not use the device with wet or damp hands. should wear eye protection. • Do not expose the device to directly squirting water. air cooler PAE 51 / PAE 51 B... - Page 3 • Never leave water in the water tank when the appliance is not in use. • Keep new and used batteries and an open battery compartment away from children. air cooler PAE 51 / PAE 51 B...
- Page 4 Before any work on the device, remove the mains plug from the mains socket! Do not touch the mains plug with wet or damp hands. Hold onto the mains plug while pulling the power cable out of the mains socket. air cooler PAE 51 / PAE 51 B...
-
Page 5: Information About The Device
2. Disconnect the device from the mains: Hold onto the mains plug while pulling the power cable out of the mains socket. 3. Do not reconnect a defective device to the mains. air cooler PAE 51 / PAE 51 B... - Page 6 Ice packs Remote control Air filter Stopper for slider Locking clasp for water tank Slider for pump Remote control receiver Water funnel Please note the warnings on the labels attached to the device. air cooler PAE 51 / PAE 51 B...
-
Page 7: Transport And Storage
• Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. air cooler PAE 51 / PAE 51 B... - Page 8 • Put the ice packs into the water tank before filling water into the tank. Info When using ice packs at high outside temperatures, condensation may form at the water tank and drip onto the floor. air cooler PAE 51 / PAE 51 B...
- Page 9 Optionally, you can add ice cubes made of drinking water for additional cooling. ð Observe the minimum and maximum filling level at the filling level indicator. The water tank must be filled up to minimum filling level to enable pump operation. air cooler PAE 51 / PAE 51 B...
- Page 10 Notice Always secure the slider in its upper position by means of the stopper before lifting off the top section of the device. Otherwise the pump and the mechanism might be damaged. air cooler PAE 51 / PAE 51 B...
-
Page 11: Operation
On / Off LED Illuminated during operation Oscillation LED Illuminated when swing function is activated On / Off button Switching the device on or off Oscillation button Switching the swing function on or air cooler PAE 51 / PAE 51 B... - Page 12 • A power failure during operation does not deactivate the automatic switch-off function. air cooler PAE 51 / PAE 51 B...
- Page 13 If you switch the device back on from standby, a perhaps previously set timer and fan stage will have been stored by the device which starts in ventilation mode. air cooler PAE 51 / PAE 51 B...
-
Page 14: Available Accessories
5. Close the flap for the water funnel (17) or put the upper section back onto the water tank and shut the locking clasps (14). 6. Make sure that the device is neither damp nor wet on the outside. Otherwise wipe it dry. air cooler PAE 51 / PAE 51 B... -
Page 15: Errors And Faults
• The swing function motor might be defective. Please contact the customer service. The device is loud or vibrates: • Check whether the device is set up in a stable and upright position. air cooler PAE 51 / PAE 51 B... -
Page 16: Maintenance
11. Date: ........12. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ 13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ........ Signature: ........ Signature: ........ air cooler PAE 51 / PAE 51 B... - Page 17 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. air cooler PAE 51 / PAE 51 B...
- Page 18 4. Allow the filter to dry completely. Do not insert a wet filter into the device! air cooler PAE 51 / PAE 51 B...
- Page 19 Allow the evaporation filter to dry before removing it from the 6. Reattach the screw to the device. device. 1. Loosen the screw at the air filter. 2. Remove the air filter from the device. air cooler PAE 51 / PAE 51 B...
- Page 20 If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. air cooler PAE 51 / PAE 51 B...
-
Page 21: Technical Annex
Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. air cooler PAE 51 / PAE 51 B... - Page 22 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
