- Page 1 PAE 20 OPERATING MANUAL AIR COOLER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the operating manual must be observed. You can download the current version of the operating manual and the EU declaration of conformity via the following link: Operating manual – air cooler PAE 20... - Page 3 Do not operate the device without an inserted air filter! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. Operating manual – air cooler PAE 20...
-
Page 4: Information About The Device

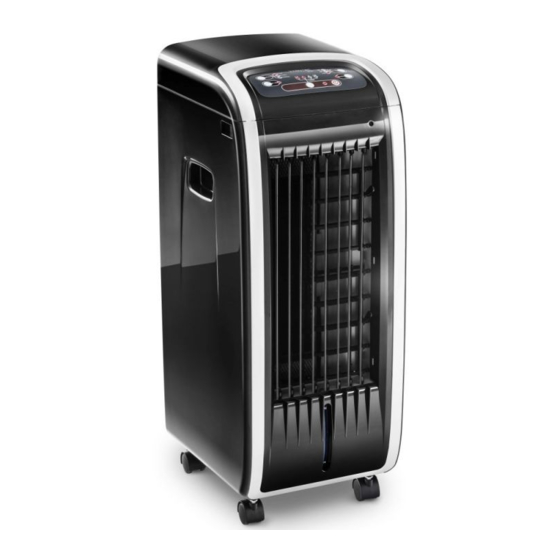

Water tank with filling level indication and water outlet with rubber stopper (not depicted) Wheels Air inlet with air filter and honeycomb filter Air filter Honeycomb filter Remote control Filter retainer Power cable holder Operating manual – air cooler PAE 20... -
Page 5: Transport And Storage
• 1 x remote control Prior to initial start-up, insert the batteries in the remote control. • 1 x honeycomb filter • 1 x filter retainer • 1 x air filter • 1 x manual Operating manual – air cooler PAE 20... - Page 6 5. Make sure that the device is neither damp nor wet on the there might be uncontrolled water leakage. outside. Otherwise wipe it dry. Info Optionally, you can put ice packs into the water tank for additional cooling. Operating manual – air cooler PAE 20...
- Page 7 Connecting the power cable • Insert the mains plug into a properly secured mains socket. • The LEDs at the control panel light up briefly. The device is now in standby mode. Operating manual – air cooler PAE 20...
-
Page 8: Operation
1. Press the MODE button (13) until the NATURAL LED (14) for WIND button Switching the swing function on and off air freshening is illuminated. ð The fan stages are automatically adjusted. Info An acoustic signal is emitted each time a setting is activated. Operating manual – air cooler PAE 20... - Page 9 1. Press the WIND button (24) to switch on the swing function. ð The WIND LED (23) is illuminated. 2. Press the WIND button (24) again to switch the swing function off. ð The WIND LED (23) goes out. Operating manual – air cooler PAE 20...
- Page 10 ð Observe the minimum and maximum filling level at the filling level indicator. The water tank must be filled up to minimum filling level to enable pump operation. 4. Close the water tank (5) again. Operating manual – air cooler PAE 20...
-
Page 11: Available Accessories
• Check the air filter for dirt. If necessary, clean or replace the air filter. • Check the minimum distance to walls or other objects. Position the device a little more in the room's centre if required. Operating manual – air cooler PAE 20... -
Page 12: Maintenance
11. Date: ......12. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......13. Date: ......14. Date: ......15. Date: ......16. Date: ......Signature: ......Signature: ......Signature: ......Signature: ......Operating manual – air cooler PAE 20... - Page 13 3. Check the inside of the device for dirt. 4. If you see a thick layer of dust, have the inside of the device cleaned by a specialist electrical company or by Trotec. 5. Put the air filter back in.
- Page 14 3. Allow the filter to dry completely. Do not insert a wet filter 6. Fill the water tank (5) with fresh drinking water if you want into the device! to continue operation (see chapter Refilling water). 7. Close the water tank (5) again. Operating manual – air cooler PAE 20...
- Page 15 In standard operation, the interval for replacing the honeycomb into the device. filter is approx. 1 year. Allow the honeycomb filter to dry before removing it from the device. 1. Remove the air filter (8) from the device. Operating manual – air cooler PAE 20...
-
Page 16: Technical Annex
Directive 2006/66/EC of the European Parliament and of the Council of 6 September 2006 on batteries and accumulators. Please dispose of batteries and accumulators according to the relevant legal requirements. Operating manual – air cooler PAE 20... - Page 18 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
