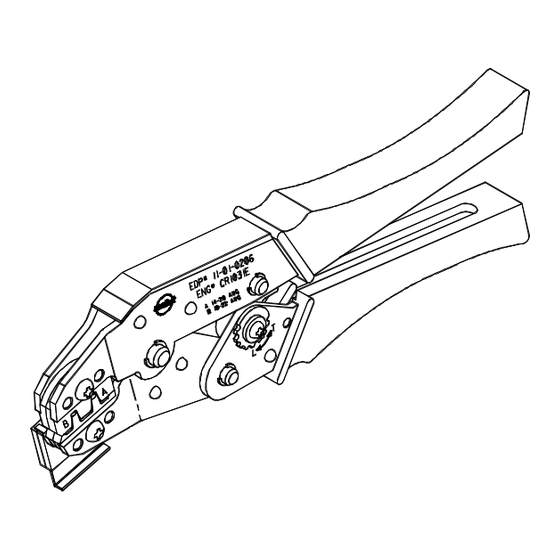

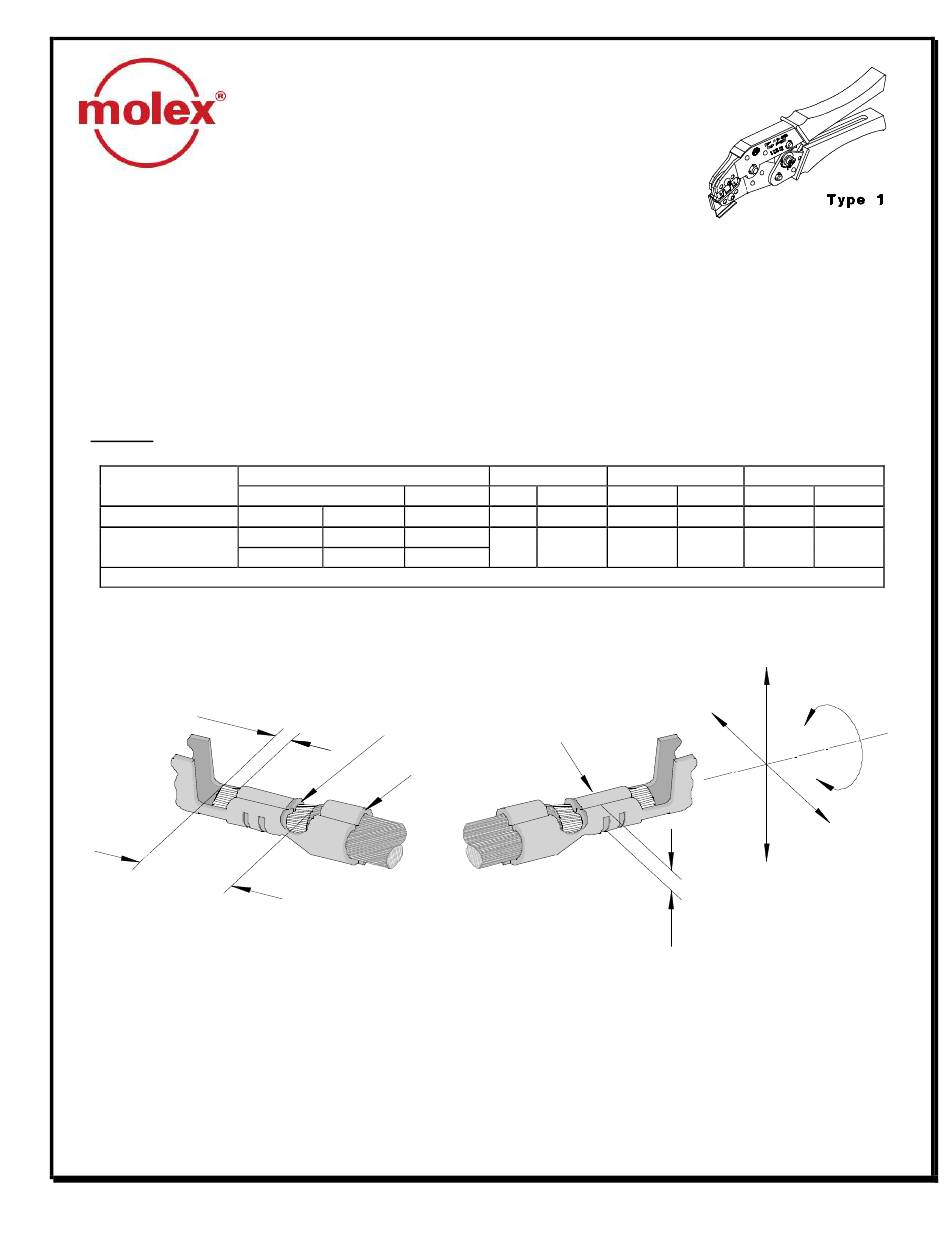

Hand Crimp Tool for 2.00mm (.079") Pitch Crimp Terminals
FEATURES
Small handle spread which make this style tool ideally suited for end users
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Products: 2.00mm (.079") Pitch Crimp Terminals, 24-30 AWG.
Terminal Series No.
50212
59354
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS- 638111200
Revision: G
HAND CRIMP TOOL
Operating Instruction and
Specification Sheet
Order No. 63811-1200
Terminal Order No.
Loose Piece
50212-8100 39-00-0424 50212-8000 24-30 0.20-0.05 0.80-1.40 .031-055 1.30-1.80 .051-.071
59354-8181
59354-8081
59354-8099
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
Release Date: 03-06-98
Revision Date: 04-15-08
Wire Size
Insulation Diameter
Reel
AWG
mm²
24-30 0.20-0.05 0.80-1.40 .031-055 1.30-1.80 .051-.071
CONDUCTOR
CRIMP
UNCONTROLLED COPY
Strip Length
mm
In.
mm
BEND UP
BEND
DOWN
CRIMP HEIGHT
In.
ROLLING
TWISTING
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for molex 59354
Summary of Contents for molex 59354
- Page 1 Terminal Series No. Loose Piece Reel mm² 50212 50212-8100 39-00-0424 50212-8000 24-30 0.20-0.05 0.80-1.40 .031-055 1.30-1.80 .051-.071 59354-8181 59354-8081 59354 24-30 0.20-0.05 0.80-1.40 .031-055 1.30-1.80 .051-.071 59354-8099 Customer to cut off terminal from reel: 0.20mm (.008”) maximum Cut-off Tab. DEFINITION OF TERMS...
-
Page 2: Operation
1.34 .053 1.10 0.20 0.55-0.65 .022-.026 1.34 .053 29.4 6.60 X 0.12 0.53-0.64 .021-.025 1.34 .053 19.6 4.40 X 59354 0.08 0.53-0.64 .021-.025 1.34 .053 2.20 0.05 0.51-0.61 .020-.024 1.34 .053 1.10 OPERATION PRE-STRIPPED WIRE Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open. -
Page 3: Maintenance
Hand Crimp Tool for 2.00mm (.079") Pitch Crimp Terminals Maintenance It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps: 1. Remove dust, moisture, and other contaminants with a clean brush, or soft, lint free cloth. 2. - Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
-
Page 5: Parts List
2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS- 638111200 Release Date: 03-06-98 Page 5 of 5 Revision: G Revision Date: 04-15-08...
