PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator Assembly
(Supplied with
Die Assembly)
Front of Tool
(Locator Side)
Die Assembly
The PRO-CRIMPER III Hand Crimping Tool is a Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 series specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1-800-722-1111.
TE Die Assembly
TE Locator Assembly
58605-2
{
}
Supplied with die assembly, also available separately.
Contact the Tooling Assistance Center or the Product Information Center at the numbers listed below for specific contact part numbers.
1. INTRODUCTION
PRO–CRIMPER III Hand Crimping Tool Assembly
58605–1 consists of Die Assembly 58605–2 and
PRO–CRIMPER III Hand Crimping Tool Frame
354940–1. The die assembly consists of crimping
dies and a locator assembly.
Read these instructions thoroughly before crimping
any contacts.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO-CRIMPER* III Hand
Crimping Tool Assembly 58605-1
with Die Assembly 58605-2
Moving Jaw
Ratchet Adjustment Wheel
{
Contact Family
Junior Power
58516-1
Timer Seal

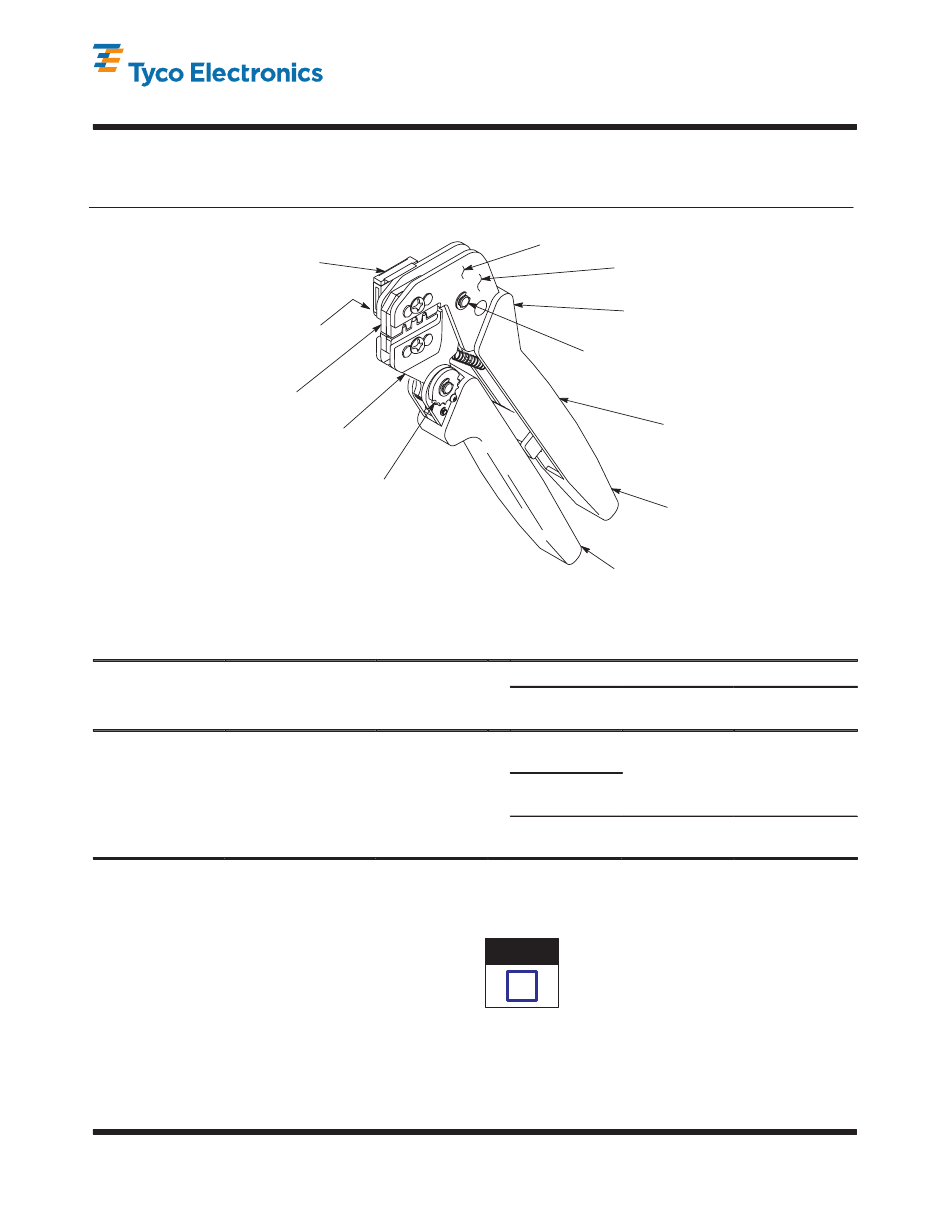

Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Back of Tool
(Wire Side)
Tool Marking (3)
Pivot Pin
Moving Handle
}
2
Size (mm
)
(Color)
2.5
(Yellow)
1.5
(Blue)
1.0
(Red)
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
Reasons for revision can be found in Section 11,
REVISION SUMMARY.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-4344
29 MAY 09
Rev A
PRO-CRIMPER III Hand
Crimping Tool Frame
354940-1
(408-9930)
Stationary Handle
Wire
Insul Dia
Strip Length
(mm [in.])
(mm [in.])
3.4
4.3-5.1
[.134]
[.169-.200]
3.4
3.8-4.6
[.134]
[.150-.181]
1 of 5
