Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Front of Tool
Die Assembly
The PRO-CRIMPER III Hand Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 application specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1-800-722-1111.
DIE ASSEMBLY DIE ASSEMBLY
PART NUMBER
Ultra-Fast FASTON*
58630-2 58630 2
Straight Receptacle
}
Contact the Tooling Assistance Center at the number listed at the bottom of this page for specific receptacle part numbers.

1. INTRODUCTION

PRO–CRIMPER III Hand Tool Assembly 58630–1
consists of Die Assembly 58630–2 and
PRO–CRIMPER III Hand Tool Frame 354940–1. The
tool is used to crimp the receptacles onto the wire
sizes listed in Figure 1. Read these instructions
thoroughly before crimping any receptacles.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for reference only and are
not drawn to scale.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

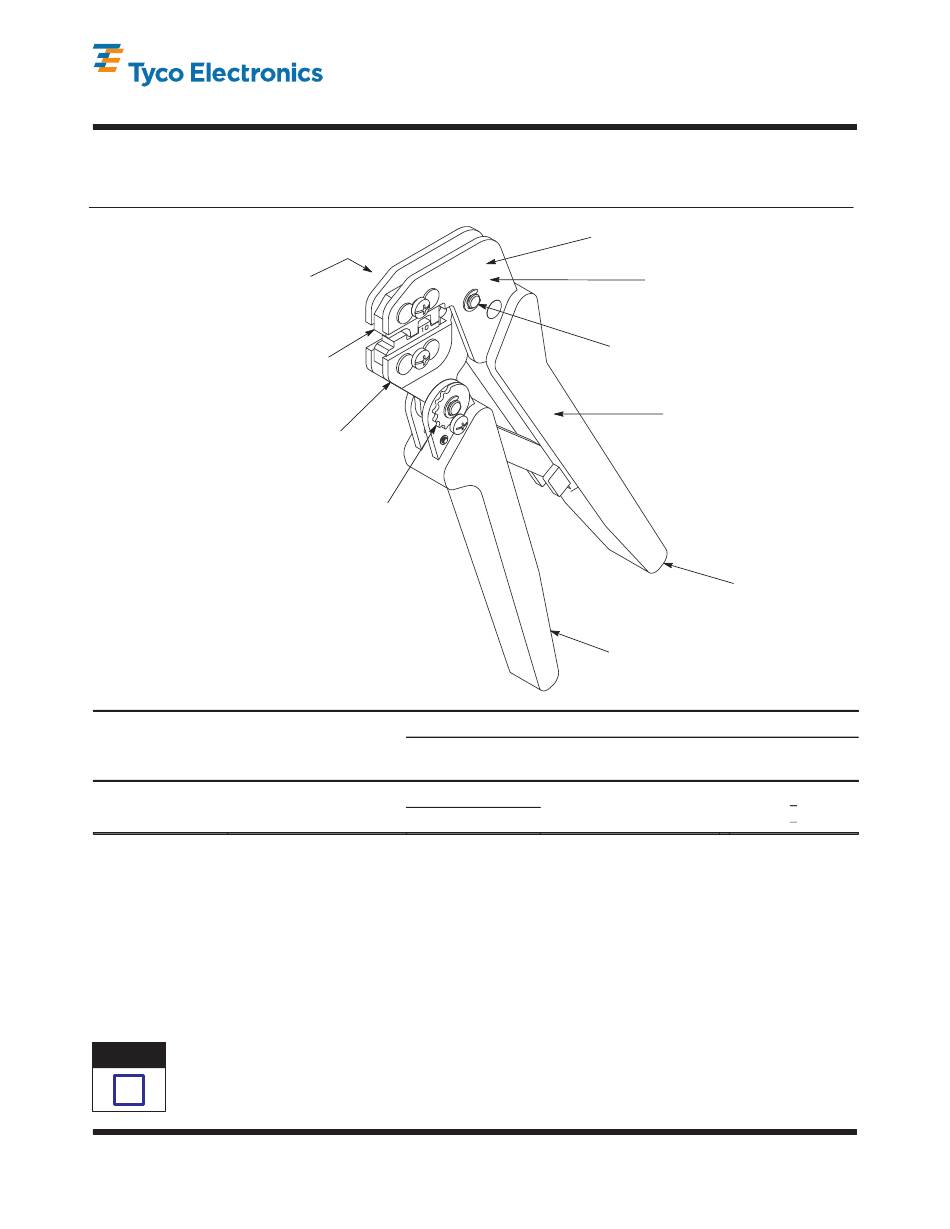

PRO-CRIMPER* III Hand
Tool Assembly 58630-1
with Die Assembly 58630-2
Moving Jaw
Ratchet Adjustment
Wheel
PRODUCT PRODUCT }
SIZE
FAMILY
(AWG)
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Pivot Pin
Moving
Handle
WIRE
INSULATION
DIA MAX
12
8.13
[.320]
10

2. DESCRIPTION

(Figures 1 and 2)
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full crimping. The tool
frame holds a die assembly with two crimping
chambers.
The die assembly features an anvil die and a crimper
die. Die retaining pins and die retaining screws are
used to position and secure the dies in the tool
frame.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-4453
27 AUG 08 Rev A
Back of Tool
(Wire Side)
PRO-CRIMPER III Hand
Tool Frame 354940-1 (See
Instruction Sheet 408-9930)
Stationary
Handle
STRIP
LENGTH
7.92+0.41
[.312+.016]
1 of 4
