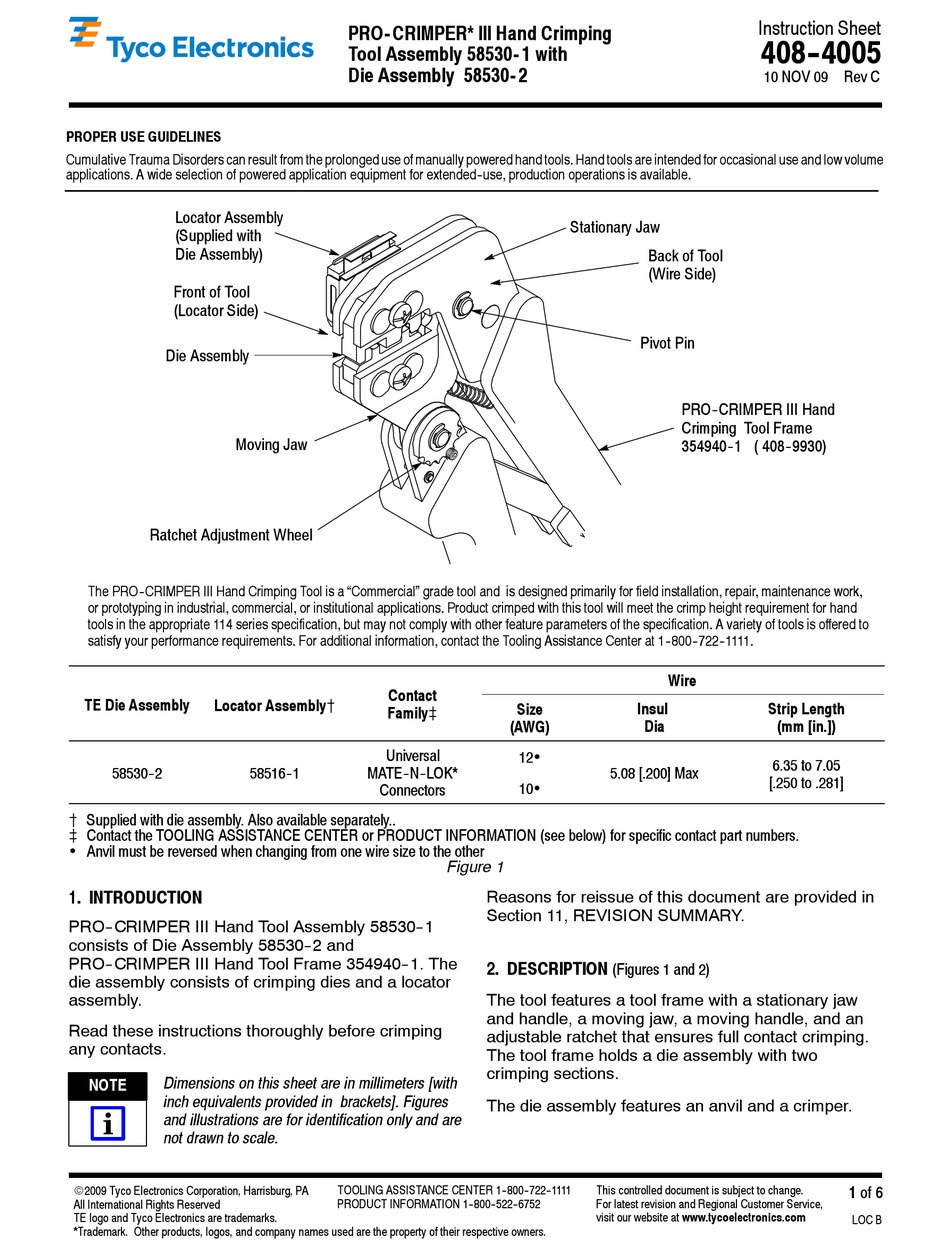

Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Locator Assembly
(Supplied with
Die Assembly)
Front of Tool
(Locator Side)
Die Assembly
Moving Jaw
Ratchet Adjustment Wheel
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade tool and is designed primarily for field installation, repair, maintenance work,
or prototyping in industrial, commercial, or institutional applications. Product crimped with this tool will meet the crimp height requirement for hand
tools in the appropriate 114 series specification, but may not comply with other feature parameters of the specification. A variety of tools is offered to
satisfy your performance requirements. For additional information, contact the Tooling Assistance Center at 1- - 800- - 722- - 1111.
TE Die Assembly Locator Assembly{
58530 2 58530--2
{ Supplied with die assembly. Also available separately..
} Contact the TOOLING ASSISTANCE CENTER or PRODUCT INFORMATION (see below) for specific contact part numbers.
 Anvil must be reversed when changing from one wire size to the other
1. INTRODUCTION
PRO--CRIMPER III Hand Tool Assembly 58530--1
consists of Die Assembly 58530--2 and
PRO--CRIMPER III Hand Tool Frame 354940--1. The
die assembly consists of crimping dies and a locator
assembly.
Read these instructions thoroughly before crimping
any contacts.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand Crimping
Tool Assembly 58530- 1 with
Die Assembly 58530- 2
Contact Contact
Family}
Universal
58516--1 58516 1 MATE--N--LOK* MATE N LOK*
Connectors
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Size
(AWG)
12
5 08 [ 200] Max 5.08 [.200] Max
10
Figure 1
Reasons for reissue of this document are provided in

Section 11, REVISION SUMMARY.

2. DESCRIPTION
(Figures 1 and 2)
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full contact crimping.
The tool frame holds a die assembly with two
crimping sections.
The die assembly features an anvil and a crimper.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4005
10 NOV 09 Rev C
Back of Tool
(Wire Side)
Pivot Pin
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 ( 408- - 9930)
Wire
Insul Strip Length
Dia (mm [in.])
6.35 to 7.05 6.35 to 7.05
[.250 to .281]
1 of 6
LOC B
