Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Front of Tool
Die Assembly
217212-2
The PRO-CRIMPER III Hand Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 Application Specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1-800-722-1111.
CLOSED-END
DIE
SPLICE
ASSEMBLY
CRIMPING
PART
CHAMBER
NUMBER
Outer 35115
Center 328730
Inner 35653
1. INTRODUCTION
PRO–CRIMPER III Hand Tool Assembly 217212–1
consists of Die Assembly 217212–2 and
PRO–CRIMPER III Hand Tool Frame 354940–1. The
die assembly consists of two crimping dies. Read
these instructions thoroughly before crimping any
splices.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO-CRIMPER* III
Hand Tool Assembly 217212-1
with Die Assembly 217212-2
Moving
Jaw
SIZE RANGE CIRCULAR MIL
TYPE
(AWG) AREA RANGE
ECV
22-14 509-5,180
ECN
ECV
22-10 3,248-13,100
ECN
ECN 22-10 3,248-13,100

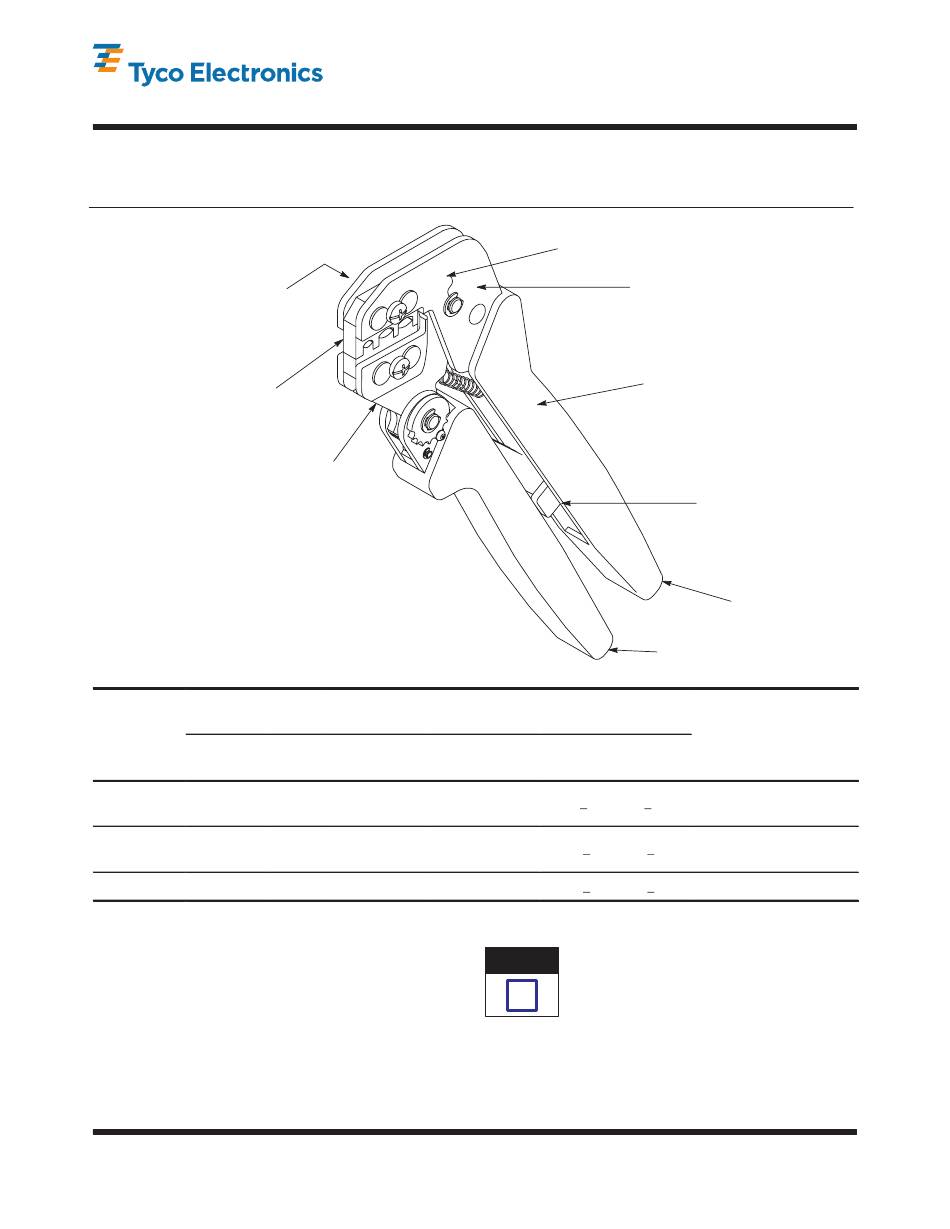

Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary
Jaw
Back of Tool
(Wire Side)
PRO-CRIMPER III Hand Tool
Frame 354940-1
(See Instruction Sheet 408-9930)
WIRE
STRIP LENGTH
8.76 +0.38 [.345 +.016]
11.12 +0.38 [.438 +.016]
11.12 +0.38 [.438 +.016]
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 9, REVISION SUMMARY.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-4145
20 MAR 09 Rev D
CERTI-CRIMP*
Ratchet
Stationary
Handle
Moving
Handle
SOLID OR STRANDED
WIRE COMBINATION
TABLE SHOWN ON
(INSTRUCTION SHEET)
(408-1271)
(408-1003)
(408-1021)
1 of 4
LOC B
