PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator Assembly
(Supplied with Die
Assembly)
Front of Tool
(Locator Side)
Die Assembly
Moving Jaw
The PRO-CRIMPER III Hand Crimping Tool is a Commercial" grade tool
and is designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 application specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1-800-722-1111.
DIE ASSEMBLY
LOCATOR ASSY
PART NUMBER
PART NUMBER
91367-2
58515-1
{
Supplied with die assembly, also available separately.
1. INTRODUCTION
PRO–CRIMPER III Hand Crimping Tool
Assembly 91367–1 consists of Die Assembly
91367–2 and PRO–CRIMPER III Hand Tool Frame
354940–1. The die assembly consists of crimping
dies and a locator assembly.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO-CRIMPER* III Hand
Crimping Tool Assembly 91367-1
with Die Assembly 91367-2
Ratchet
Adjustment
Wheel
CONTACT
{
}
FAMILY
1 mm System
Automotive Socket
Contacts

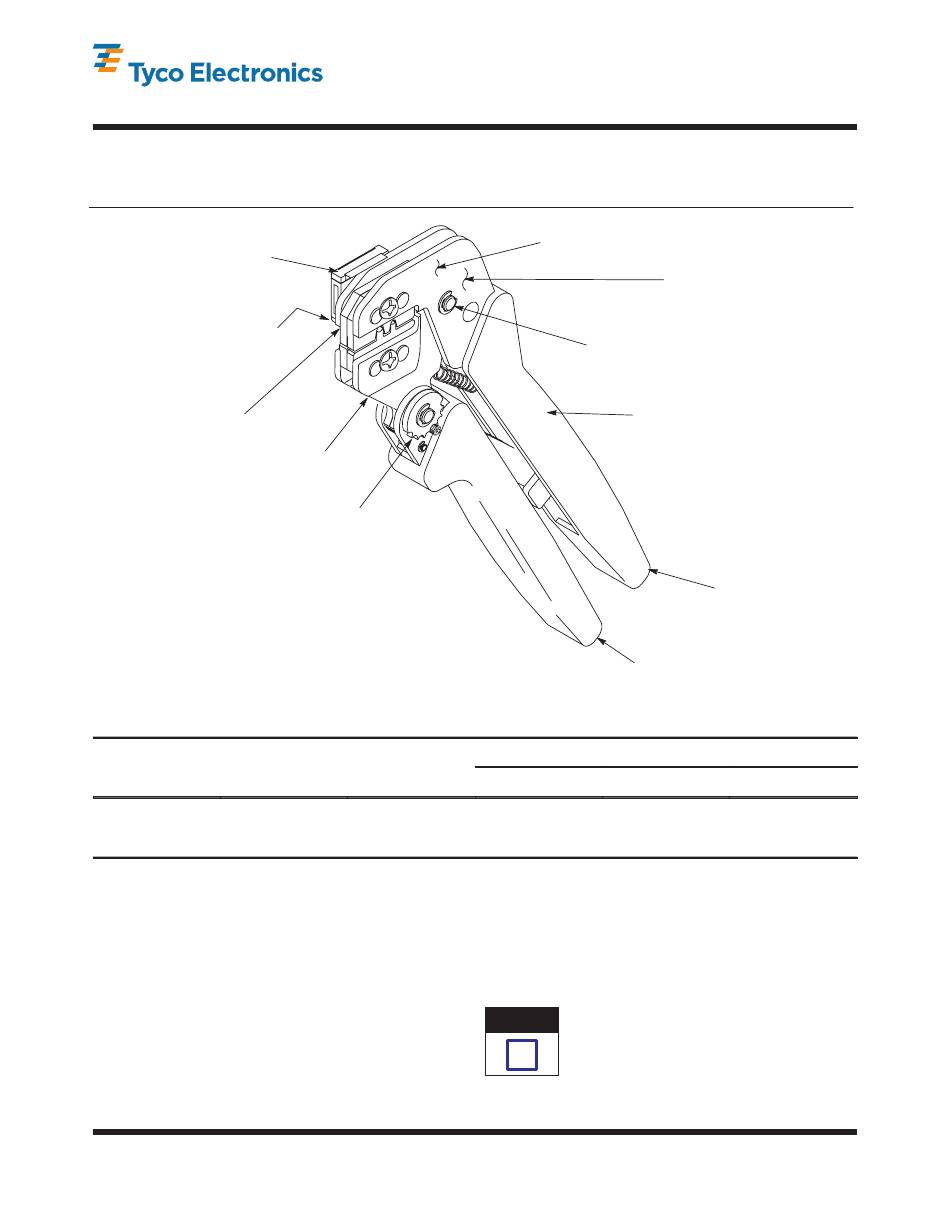

Figure 1
Read these instructions thoroughly before crimping
any contacts.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Back of Tool
(Wire Side)
Pivot Pin
PRO-CRIMPER III Hand
Crimping Tool Frame 354940-1
(See Instruction Sheet 408-9930)
Moving Handle
WIRE
SIZE (AWG)
INSUL DIA
2.49-2.77
14-16
[.098-.109]
}
Contact the Tooling Assistance Center (see below) for specific
contact part numbers.
Dimensions given on this document are in
NOTE
millimeters [with inch equivalents provided in
i
brackets]. Figures and illustrations are for
identification only and are now drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-8777
16 APR 09
Rev A
Stationary Handle
STRIP LENGTH
3.95-4.45
[.156-.175]
1 of 5
LOC B
