Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
The PRO-CRIMPER III Hand Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate Application Specification (114-series), but may not comply
with other feature parameters of the specification. A variety of tools are offered
to satisfy your performance requirements. For additional information, contact
the Tooling Assistance Center at 1-800-722-1111.
DIE ASSEMBLY
58483-1
1. INTRODUCTION
PRO–CRIMPER III Hand Tool Assembly 58499–1
consists of PRO–CRIMPER III Hand Tool Frame
354940–1 and Die Assembly 58483–1. The tool
assembly is used to crimp the ferrule of the
connectors listed in Figure 1. In this use, the die
assembly does not provide for crimping of the center
contact.
Read these instructions thoroughly before using the
tool assembly.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Arrow.com.
Downloaded from

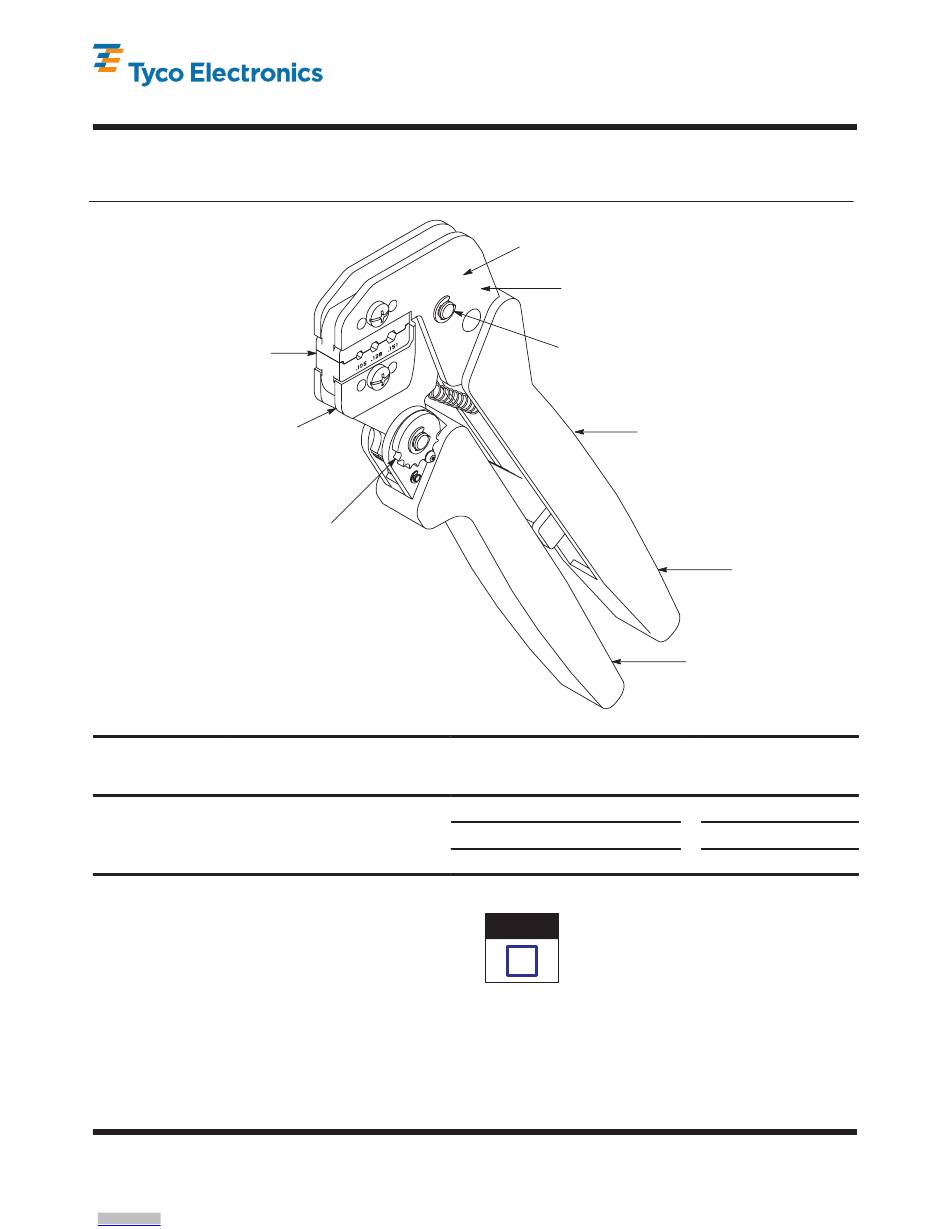

PRO-CRIMPER* III Hand Tool Assembly
58499-1 with Die Assembly 58483-1
Die Assembly
Moving Jaw
Ratchet Adjustment
Wheel
PRODUCT
FAMILY
SMB Straight Cable
Plug Connectors Plug Connectors
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary
Jaw
Back of Tool
(Wire Side)
Pivot Pin
FLEXIBLE COAXIAL
CABLE SIZE (RG/U)
178, 196
174, 179, 187, 188, 316
174, 188, 316 (All Double Braid)
Figure 1
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures are
i
not drawn to scale.
For additional information on the hand tool frame,
refer to 408–9930. Refer to the applicable connector
instruction sheet for assembly of the connector.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-9830
08 AUG 07 Rev E
PRO-CRIMPER III Hand Tool
Frame 354940-1 (See Instruction
Sheet 408-9930)
Stationary Handle
Moving Handle
DIE ASSEMBLY
CRIMPING CHAMBER
MARKING
.105 (A)
.128 (B)
.151 (C)
1 of 3
LOC B
