Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
The PRO-CRIMPER III Hand Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate 114 Application Specification, but may not comply with other
feature parameters of the specification. Tyco Electronics offers a variety of
tools to satisfy your performance requirements. For additional information,
contact the Tooling Assistance Center at 1-800-722-1111.
DIE ASSEMBLY MODULAR
PART NUMBER
58560-2
Modular Plug
1. INTRODUCTION
PRO–CRIMPER III Hand Tool Assembly 58560–1
consists of Die Assembly 58560–2, and hand tool
frame 354940–1. The die assembly consists of an
insulation stuffer, housing support, housing guides,
die retaining pins, and mounting hardware.
For additional information on the Modular
NOTE
Interconnection System, see Catalog 82066 or
i
contact the Technical Assistance Center at
1-800-722-1111.
All dimensions are in millimeters [with inches in
NOTE
brackets]. Figures and illustrations are for
i
identification only, and are not drawn to scale.
E
2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

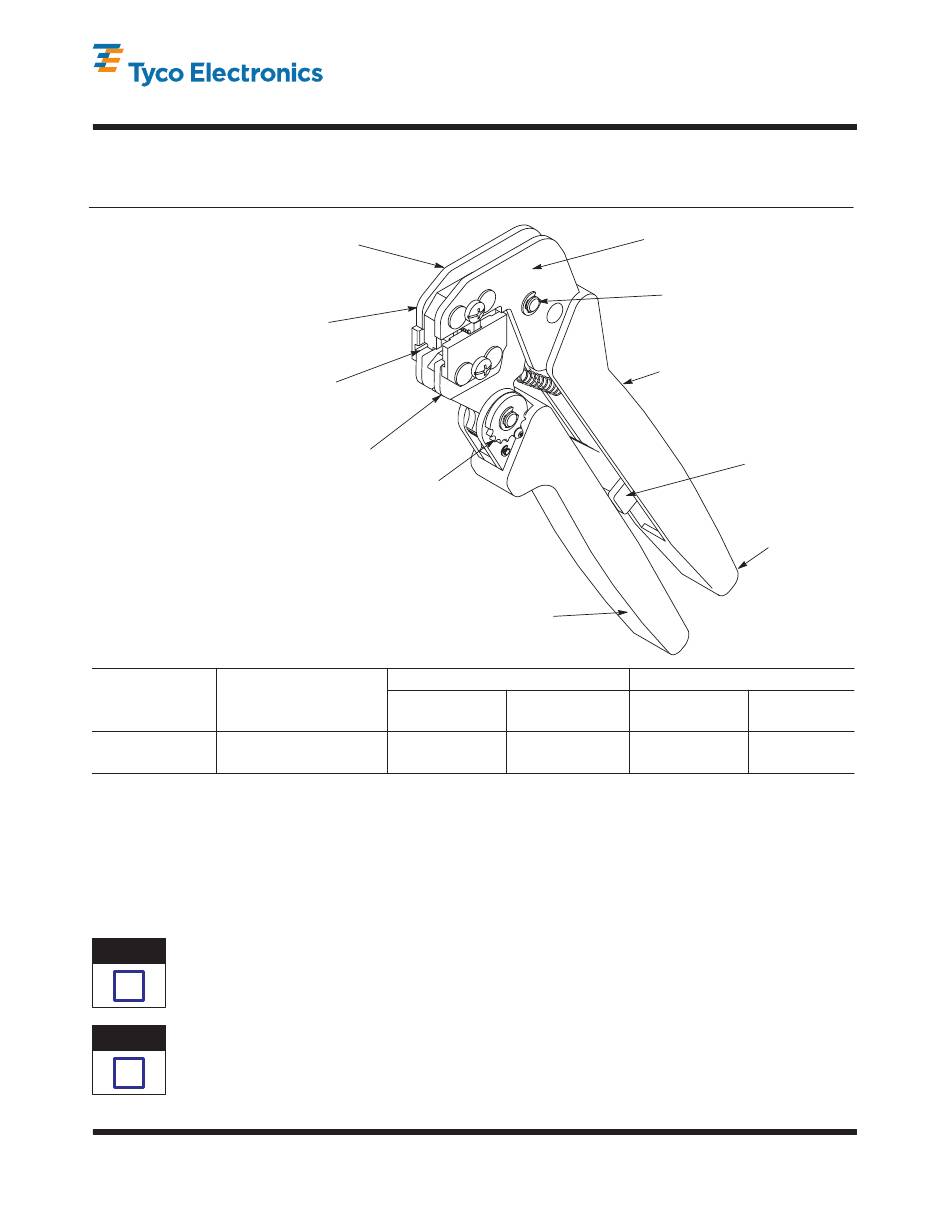

PRO-CRIMPER* III
Hand Tool Assembly 58560-1
and Die Assembly 58560-2
Stationary
Jaw
Front of
Tool
Die
Assembly
Moving Jaw
Ratchet
Adjustment
Wheel
SIZE
PLUG
(AWG)
10 Position 28-24 AWG
7 Strand Wire
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Back of Tool
Moving
Handle
CONDUCTOR
INSUL. DIA
(mm [IN.])
.74 - .99
[.029 - .039]
2. DESCRIPTION
(Figures 1 and 2)
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full crimping. The tool
frame holds a die assembly with insulation and
contact stuffers.
The die assembly features an insulation stuffer, a wire
stuffer, a housing support, housing guides, die
retaining pins, and die retaining screws which secure
the die set in the tool frame. Attached to the outside
of the frame are the housing guides. A nut is used on
the lower die retaining screw to secure the housing
guides in place.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-4093
23 MAR 09 Rev A
Pivot Pin
PRO-CRIMPER III Hand Tool
Frame 354940-1 (See
Instruction Sheet 408-9930)
CERTI-CRIMP*
Ratchet
Stationary
Handle
CABLE
O.D.
STRIP LENGTH
(mm [IN.]) (mm [IN.])
5.46 12.7 - 14.3
[.215] [.50 - .56]
1 of 4
LOC B
