Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Locator Assembly
(Supplied with Die Assembly)
Front of Tool (Locator Side)
Die Assembly
The PRO-CRIMPER III Hand Tool is a Commercial" grade tool and is
designed primarily for field installation, repair, maintenance work, or
prototyping in industrial, commercial, or institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate application specification, but may not comply with other feature
parameters of the specification. Tyco Electronics offers a variety of tools to
satisfy your performance requirements. For additional information, contact the
Tooling Assistance Center at 1-800-722-1111.
DIE ASSEMBLY DIE ASSEMBLY LOCATOR ASSY LOCATOR ASSY
PART NUMBER
PART NUMBER
1976141 2 1976141-2 58515 1 58515-1
{
Supplied with die assembly, also available separately.
for specific contact part numbers.
1. INTRODUCTION
PRO–CRIMPER III Hand Tool Assembly 1976141–1
consists of Die Assembly 1976141–2 and
PRO–CRIMPER III Hand Tool Frame 354940–1. The
die assembly consists of crimping dies and a locator
assembly. See Figure 1. Read these instructions
thoroughly before crimping any contacts.
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for reference only, and are
not drawn to scale.
2. DESCRIPTION
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.

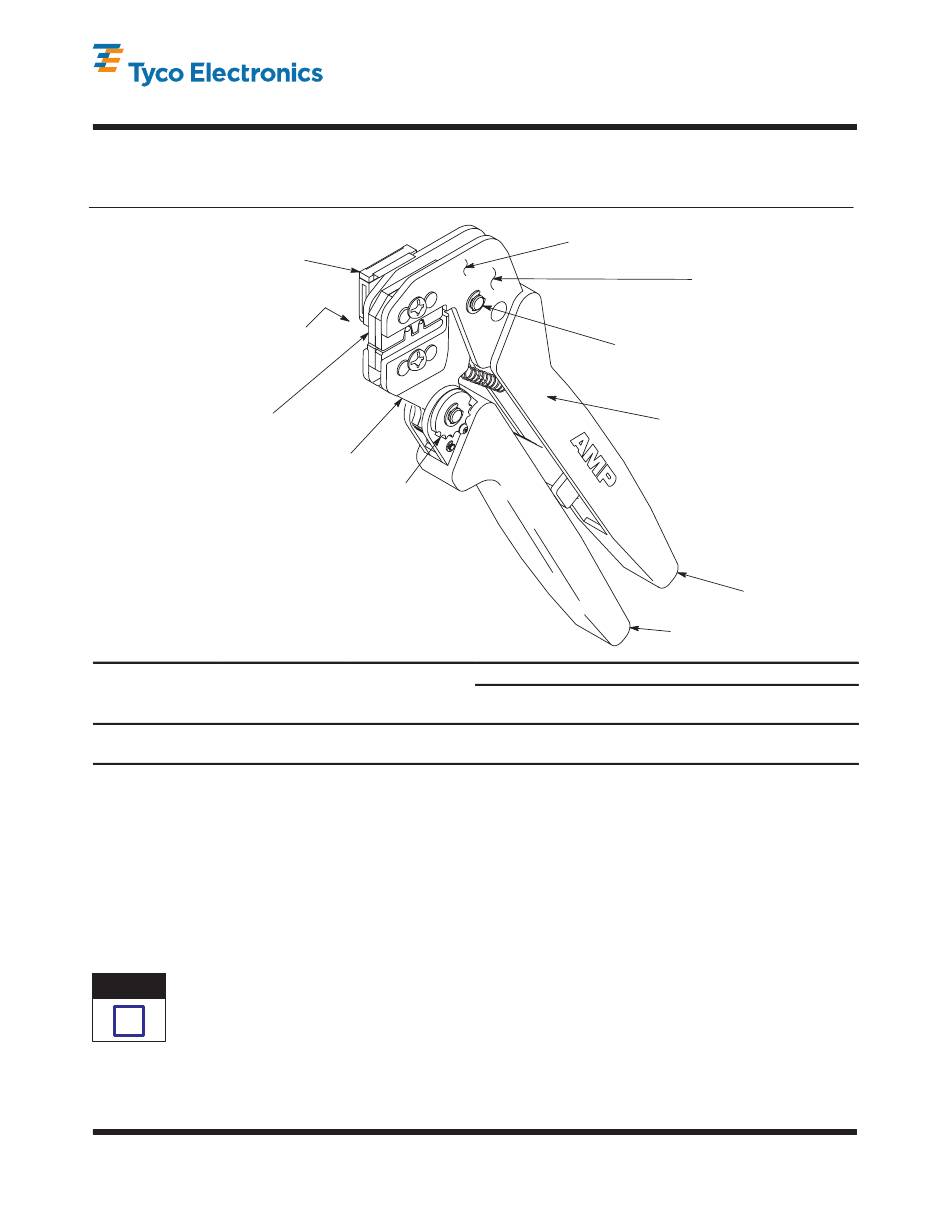

PRO-CRIMPER* III Hand
Tool Assembly 1976141-1
with Die Assembly 1976141-2
Moving Jaw
Ratchet Adjustment Wheel
{ CONTACT CONTACT }
FAMILY
MOLEX
Mini-Fit Jr.
}
Contact the Tooling Assistance Center number at the bottom of this page
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Jaw
Pivot Pin
PRO-CRIMPER III Hand Tool
Frame 354940-1
(See Instruction Sheet 408-9930)
WIRE
SIZE INSUL DIA.
2
(mm [AWG]) mm [in.] Max.
0.35-0.08 1.80
[22-28] [.071]
adjustable ratchet that ensures full contact crimping.
The tool frame holds a die assembly with two
crimping sections.
The die assembly features a wire anvil, an insulation
anvil, a wire crimper, and an insulation crimper.
Attached to the outside of the frame is a locator
assembly, which contains a locator, a spring retainer,
and a contact support.
Die retaining pins and die retaining screws are used
to position and secure the dies in the tool frame. A
nut is used on the upper die retaining screw to hold
the locator assembly in place.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10120
06 MAR 08 Rev B
Back of Tool (Wire Side)
Stationary Handle
Moving Handle
STRIP LENGTH
mm [in.]
2.79-3.30
[.110-.130]
1 of 5
LOC B
