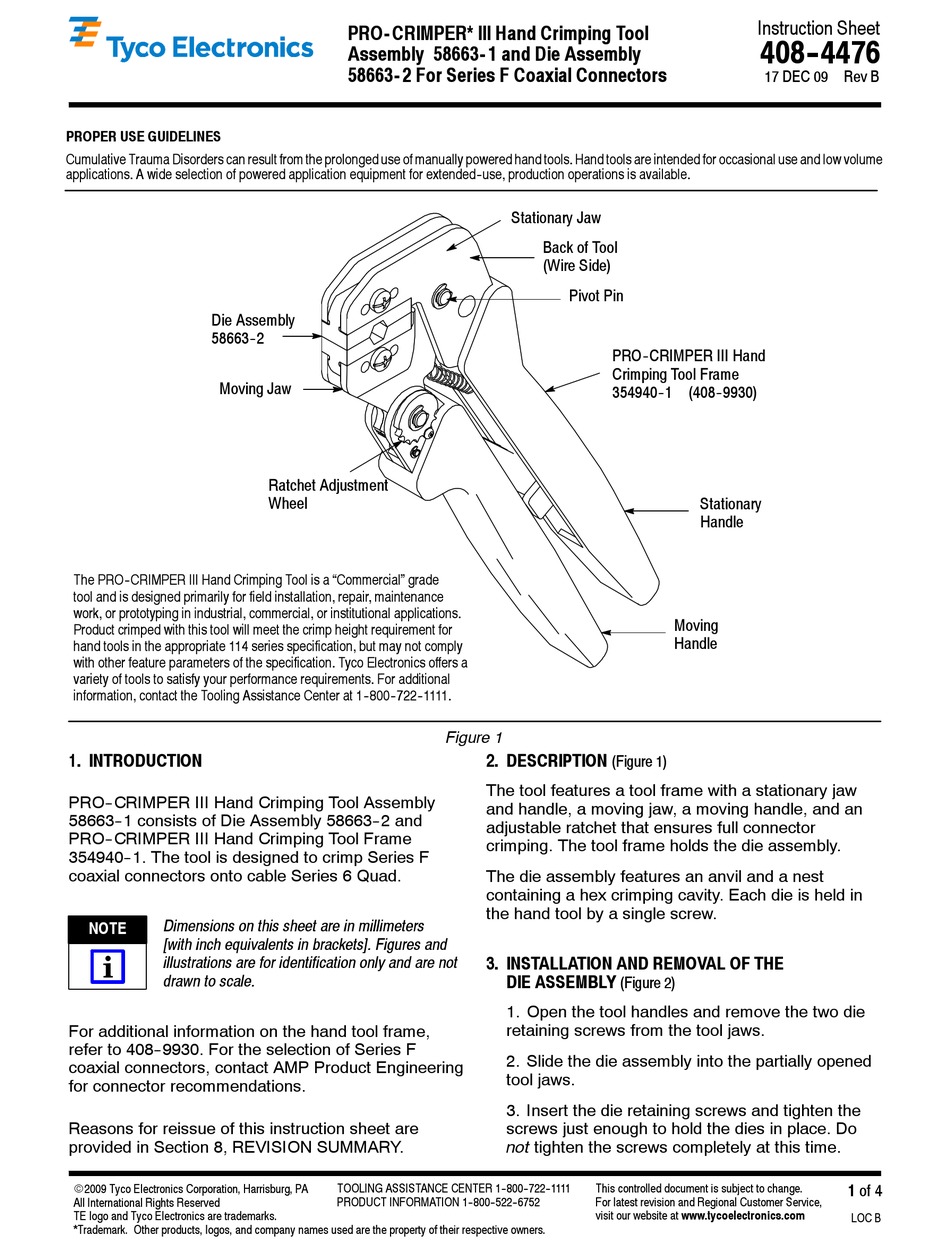

Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
Die Assembly
58663- - 2
Moving Jaw
The PRO- - CRIMPER III Hand Crimping Tool is a "Commercial" grade
tool and is designed primarily for field installation, repair, maintenance
work, or prototyping in industrial, commercial, or institutional applications.
Product crimped with this tool will meet the crimp height requirement for
hand tools in the appropriate 114 series specification, but may not comply
with other feature parameters of the specification. Tyco Electronics offers a
variety of tools to satisfy your performance requirements. For additional
information, contact the Tooling Assistance Center at 1- - 800- - 722- - 1111.
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
58663--1 consists of Die Assembly 58663--2 and
PRO--CRIMPER III Hand Crimping Tool Frame
354940--1. The tool is designed to crimp Series F
coaxial connectors onto cable Series 6 Quad.
Dimensions on this sheet are in millimeters
NOTE
[with inch equivalents in brackets]. Figures and
i
illustrations are for identification only and are not
drawn to scale.
For additional information on the hand tool frame,
refer to 408--9930. For the selection of Series F
coaxial connectors, contact AMP Product Engineering
for connector recommendations.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand Crimping Tool
Assembly 58663- 1 and Die Assembly
58663- 2 For Series F Coaxial Connectors
Ratchet Adjustment
Wheel
Figure 1
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Stationary Jaw
Back of Tool
(Wire Side)
Pivot Pin
PRO- - CRIMPER III Hand
Crimping Tool Frame
354940- - 1 (408- - 9930)
2. DESCRIPTION
(Figure 1)
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full connector
crimping. The tool frame holds the die assembly.
The die assembly features an anvil and a nest
containing a hex crimping cavity. Each die is held in
the hand tool by a single screw.
3. INSTALLATION AND REMOVAL OF THE
DIE ASSEMBLY
(Figure 2)
1. Open the tool handles and remove the two die
retaining screws from the tool jaws.
2. Slide the die assembly into the partially opened
tool jaws.
3. Insert the die retaining screws and tighten the
screws just enough to hold the dies in place. Do
not tighten the screws completely at this time.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 4476
17 DEC 09 Rev B
Stationary
Handle
Moving
Handle
1 of 4
LOC B
