Tandberg Data SuperLoader Quick Start Manual page 8

Sections 5-9 explain
how to set up the
autoloader.
14
5
Make the SCSI
connection
!
Caution
When installing cables, be careful not to
damage the SCSI pins on the connectors.
Damaged pins will cause the connection
to fail.
If the host computer is connected to a
a
network, check with the system adminis-
trator before turning off power.
Properly power off all peripheral devices
b
connected to the host computer.
c
Power off the host computer.
Install the supplied 68-pin SCSI cable to
d
the double-stacked SCSI connector that is
on the back of the autoloader/DCA and
tighten the screws. You can install the
SCSI cable in either port.
Note: Notice that the connector on the
end of the cable is offset. Make sure that
you install it with the correct orientation
so that you can fit a terminator or anoth-
er cable in the other port.
e If the autoloader will be the last device
on the SCSI bus, install the supplied
SCSI terminator to the remaining port
that is on the autoloader/DCA and then
tighten the screws.
Attach the other end of the SCSI cable
f
to the SCSI host adapter card.
g
Power back on any peripheral devices
that you powered off in Step b.

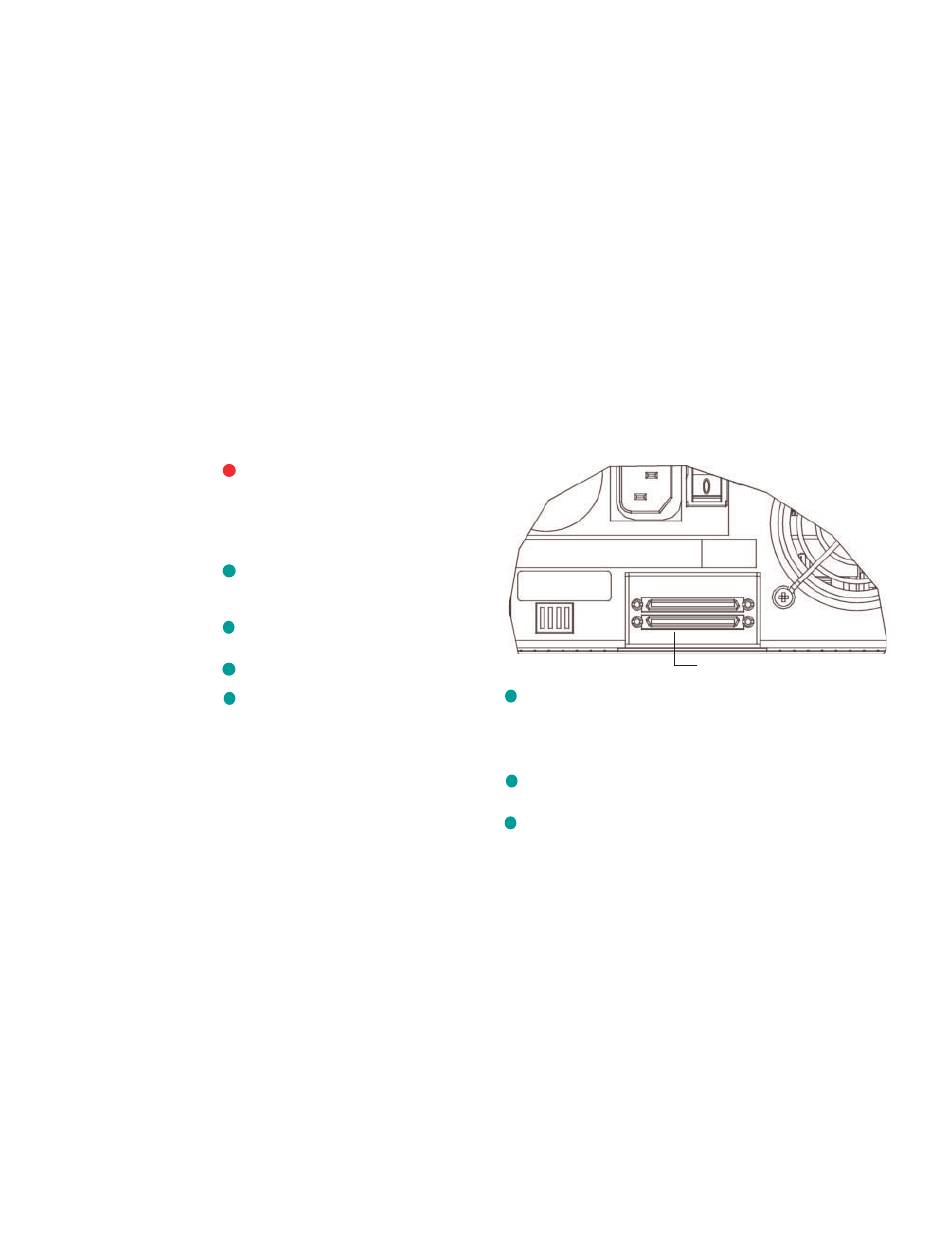

Double-stacked SCSI connector
Note: Do not power on the host comput-
er at this time. You must configure the
autoloader for SCSI and Ethernet prior to
powering on the host.
15
