ADJUSTMENTS

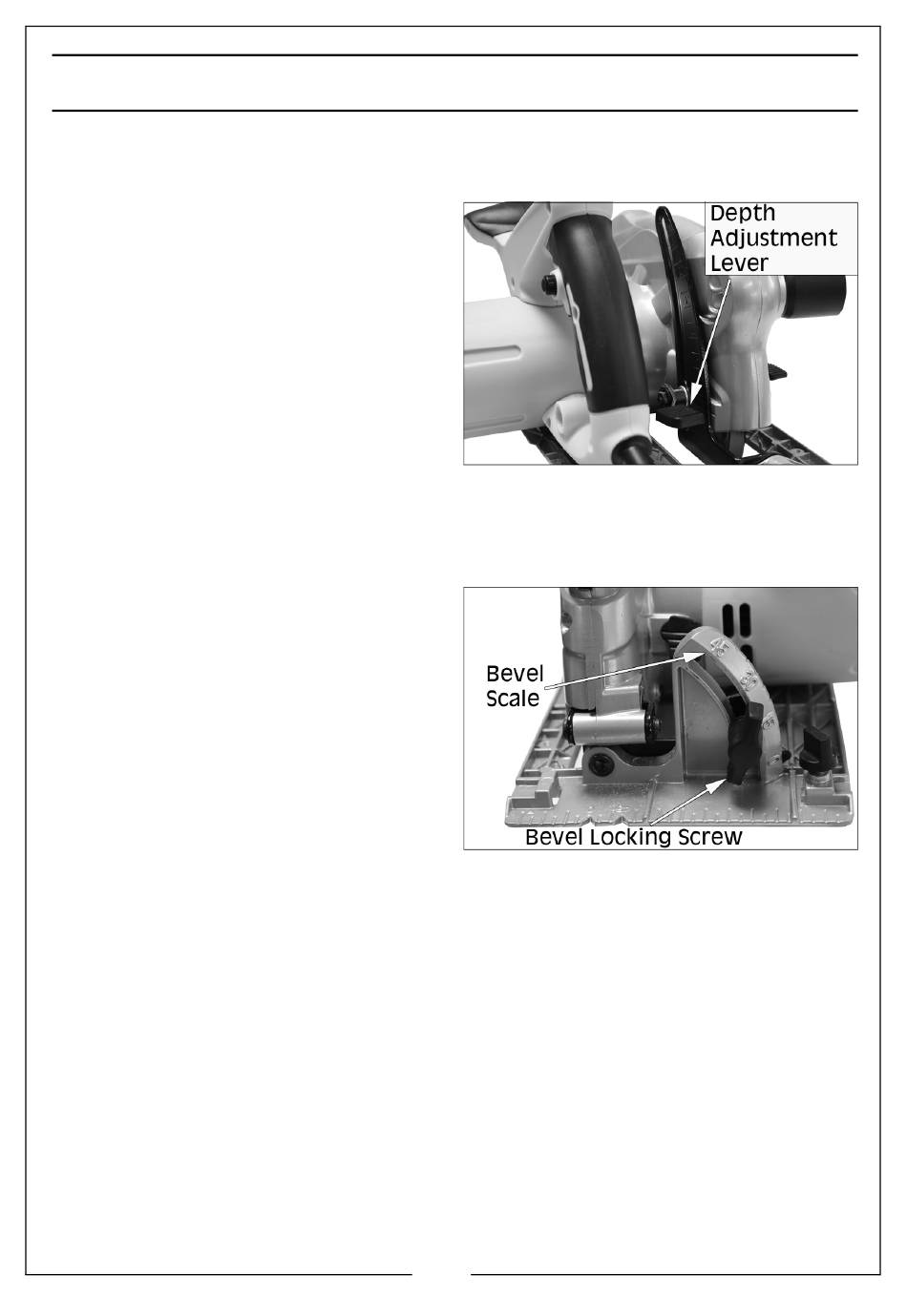

DEPTH OF CUT ADJUSTMENT

1. Pull up the depth adjustment lever
to loosen the lever bolt.
2. Adjust the base plate until the
required depth of blade is
protruding through the base
plate.
3. Push down the depth adjustment
lever to tighten.
NOTE: For optimum results, a full
tooth should just be visible
below the workpiece.

BEVEL ADJUSTMENT

1. Loosen the bevel adjustment
locking screw.
2. Adjust the base plate to the
required angle (max 45
• Use the bevel scale as a guide
only, for accurate angles use a
protractor.
3. Tighten the bevel adjustment
locking screw to secure.
