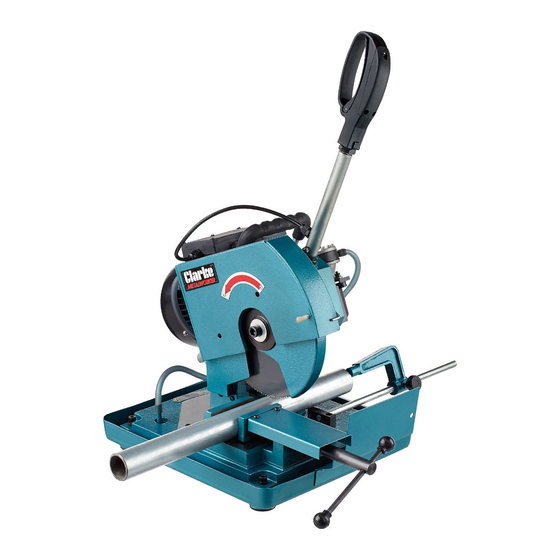

- Page 1 PORTABLE METAL CUTTING CIRCULAR SAW MODEL NO: CPMCS1 PART NO: 6462360 OPERATION & MAINTENANCE INSTRUCTIONS LS1114...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE product. The tool is intended for cutting iron, steel and other ferrous metals with the appropriate saw blades. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Warnings
The following items should be supplied in the carton. If any parts are missing, do not operate your saw until the missing parts are obtained. 1 x Metal Saw 1 x Clarke Instruction Manual 1 x HSS Blade - 225 x 1.9 x 32 x 150T (fitted) 1 x Block Plate... - Page 4 10. Do not abuse the cord. Never carry operate the tool when you are the tool by the cord or yank it to tired. disconnect it from the socket. 19. Check damaged parts. Before Keep the cord away from heat, oil further use of the tool, a guard or and sharp edges.
-
Page 5: Additional Safety Rules For Tool
TOOL blade. 1. Use only correct blades from your 6. Keep your hands and body away Clarke dealer. Never use abrasive from rotating blade. cut-off wheel or other types of saw blades. 7. Always secure the workpiece with the vice. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 7: Mounting The Handgrip
ASSEMBLY 1. Lift the tool from the box using the handle located on its upper side, check for damage which may have occurred in transit. 2. Place the saw on a flat and firm surface. 3. Free the operating head by lowering it slightly and turning the locking plate located at the machine base. -
Page 8: Before Use
BEFORE USE SET THE CUTTING ANGLE 1. Loosen the central bolt. 2. Turn the head until the required angle is reached, • The pointer and scale are located at the back of the tool. 3. Tighten the central bolt. SECURE THE WORK IN THE VICE Before cutting, secure the work in the vice and tighten securely. -
Page 9: Operation
OPERATION BEFORE STARTING WORK • All covers and safety devices have to be properly fitted before the machine is switched on. • Before you switch on, make sure that the saw blade is correctly fitted and that the blade guard operates smoothly. •... -
Page 10: Make The Cut
START THE SAW 1. To start the saw, press the trigger located at the end of the handgrip. • Wait for the blade to reach its maximum speed before commencing with the cut. MAKE THE CUT 1. Use the handgrip to pull the saw into the work. -
Page 11: Recommended Fluid
The coolant is then re-circulated after passing through a purifying filter. RECOMMENDED FLUID For general cutting, it is recommended that you use Clarke Professional Metal Cutting Fluid available from your local Clarke dealer (Part number 1 litre - 3051059, 5 litre - 3051061) FILLING 1. -
Page 12: Maintenance
MAINTENANCE WARNING: REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE CARRYING OUT ANY ADJUSTMENT. SERVICING OR MAINTENANCE • Remove dust and dirt regularly from the machine. Cleaning is best carried out with a fine brush or a cloth. • Never use caustic agents to clean plastic parts. •... -
Page 13: Motor Oil
• Replacement blades are available from your Clarke Dealer (Part Number 6469017) 6. Thoroughly clean the outer and inner blade flanges before fitting them (be careful to insert them accurately on the shaft). -
Page 14: Specifications
SPECIFICATIONS Motor Voltage 230V 50Hz 1Phase Rated Power 720W Operating Temperature 5 to 40 °C Blade Speed 86 rpm Blade Diameter: 225 mm Ø Blade Bore Diameter 32 mm Ø Blade Thickness: 1.9 mm Number of teeth: Product Dimensions (L x W x H) 574 x 346 x 738 mm Weight (Unpacked) 32.7 kg... -
Page 15: Electrical Diagram
ELECTRICAL DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 16: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 17 Part Name Part Number Part Name Part Number Hex. Screw M12 x 20 EFCPMCS1001 Discharge Hose, EFCPMCS1044 Pump EFCPMCS1045 Washer 12mm EFCPMCS1002 Hex. Nut M16 EFCPMCS1046 Outer flange EFCPMCS1003 Friction plate EFCPMCS1004 Washer 5mm EFCPMCS1047 Blade EFCPMCS1005 Bolt M5x10 EFCPMCS1048 Plate, pump EFCPMCS1049 Inner flange...
- Page 18 Part Name Part Number Seat, handgrip rod EFCPMCS1087 Spacer bush B EFCPMCS1088 Self tapping screw EFCPMCS1089 Rubber plug EFCPMCS1090 Rubber washer EFCPMCS1091 End cap EFCPMCS1092 Lever rod EFCPMCS1093 EFCPMCS1094 Vice cover, EFCPMCS1095 Bolt M5 x 8 EFCPMCS1096 Adjustable jaw EFCPMCS1097 Washer 6mm EFCPMCS1098 Hex.screw M6 x 12...
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
