StarTech.com ADJSHELFHD2 Quick Start Manual

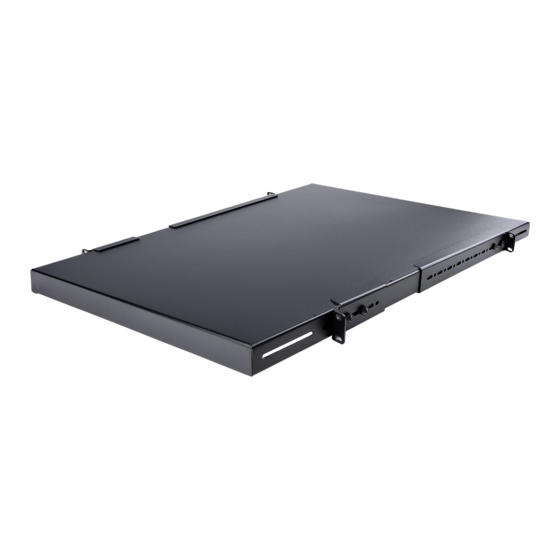

1U 4-Post Adjustable Mounting Depth Heavy Duty Shelf - 27.5 in Depth

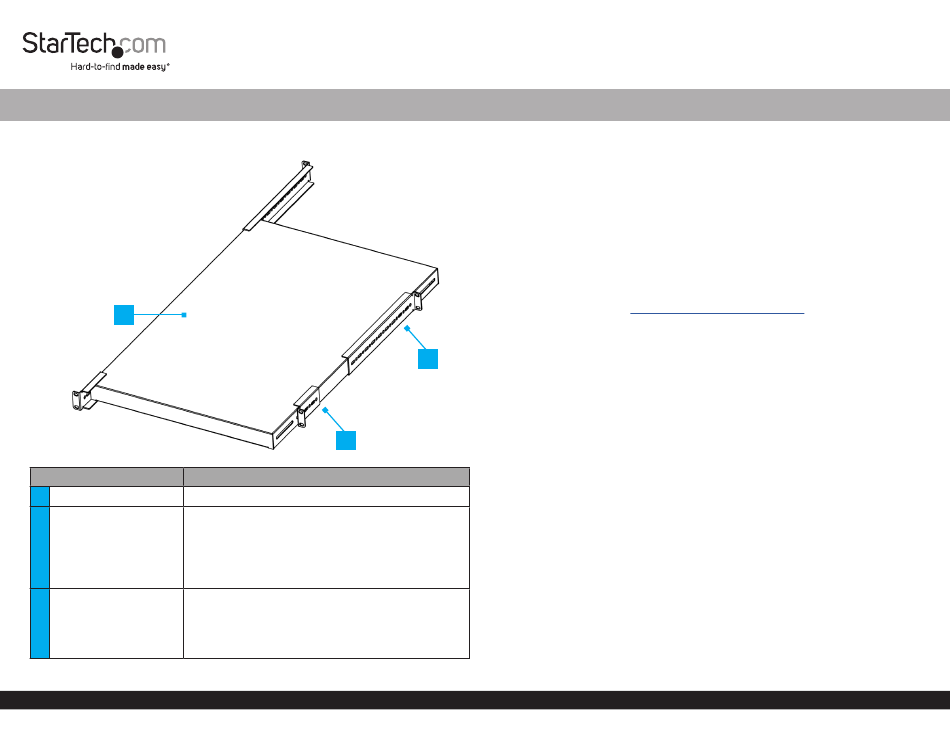

Product Diagram
ADJSHELFHD2
1
Component
1 Shelf Surface • Mount the server rack equipment
• Fasten Shelf to the Front Posts of the rack or
cabinet
• Holes on the sides of the Mounting Brackets allow
2 Front Mounting Brackets
for Depth Adjustment. M6x12 mm Screws (x 4)
secure the Mounting Brackets to the desired depth
• Allows for up to 5.7 in (146.9 mm ) depth adjustment
• Fasten Shelf to the Rear Posts of the rack or cabinet
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
• Holes on the sides of the Mounting Brackets allow
3 Rear Mounting Brackets for Depth Adjustment. M6x12 mm Screws (x 4)
secure the Mounting Brackets to the desired depth
• Allows for up to 13 in (332.1 mm) depth adjustment
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Package Contents
Requirements
3
2
*Product may vary from image
Function
Installation
1. Locate a suitable location in the rack or cabinet to mount the Shelf. The Shelf
• 1U Shelf Body x 1
• Front Mounting Brackets x 2
• Rear Mounting Brackets x 2
• M6x12 mm Screws x 8
• M6 Cage Nuts x 8
• M6 Plastic Washers x 8
• Quick-Start Guide x 1
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit: www.StarTech.com/ADJSHELFHD2
• For square cage holes, M6 cage nuts are included. For M6 threaded holes, no cage
nuts are needed. Refer to the manufacturer of the rack to determine the mounting
hole type
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before assembling and using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight: up to 264 lb (120
kg). The maximum supported weight is only possible when all four mounting brackets
are properly mounted to all posts on a four post rack.
Arrange your equipment in the rack in descending order of weight. The lightest
equipment is installed at the top of the rack, and the heaviest is on the bottom.
requires 1U of Space.
To mount the shelf leveled, ensure the mounting brackets are mounted on the same U
height number. To determine this, most four posts racks or cabinets have labeled front
and rear posts.
Quick-Start Guide
Manual Revision: June 9, 2022 10:06 AM
