产品简介 Product Overview
A B C
A. 气嘴
A.Gas Nozzle
B. 防尘盖 & 过滤棉
B.Dust Cover & Filter Cotton
C. 硅胶管
C.Silicone Tube
5
1
3

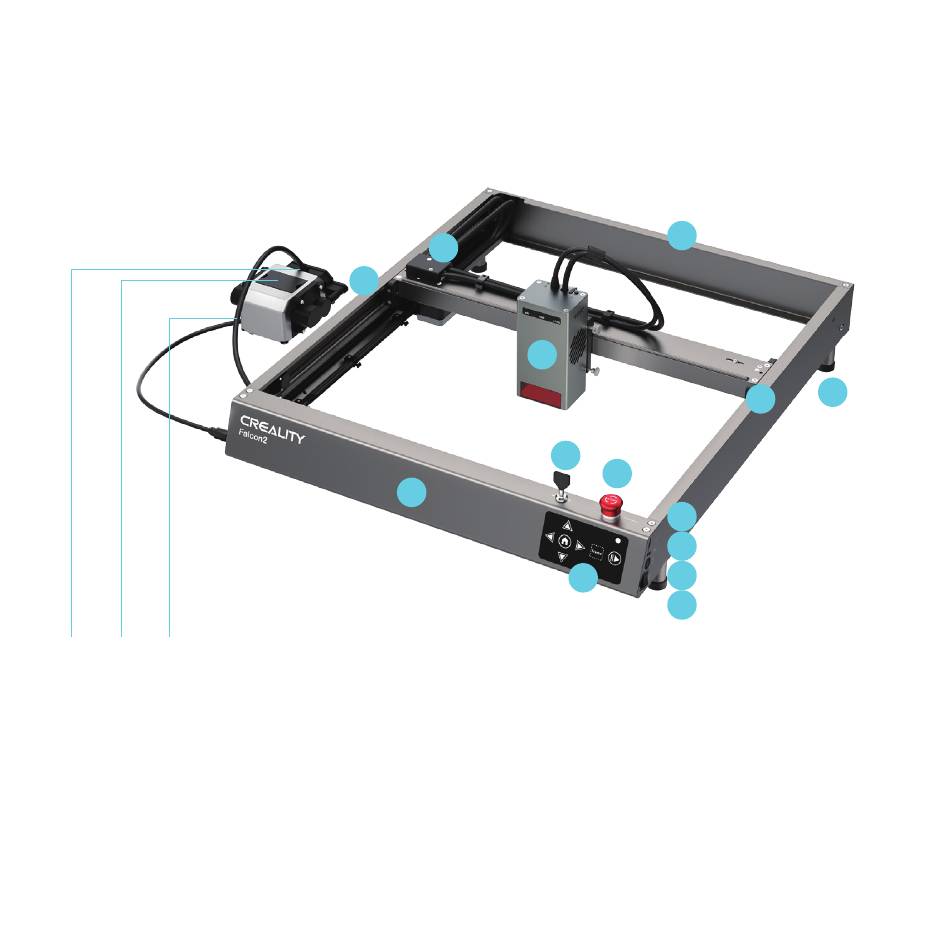

1.左Y轴组件 8.控制面板
2.右Y轴组件 9.急停开关
3.前X轴组件 10.安全锁
4.后X轴组件 11.TF卡槽
5.转接板 12.Type-C接口
6.激光模组 13.电源接口
7.脚架 14.电源开关
4
6
10
9
11
12
13
8
14
1.Left Y-axis Component
2.Right Y-axis Component
3.Front X-axis Component
4.Rear X-axis Component
5.Adapter Board
6.Laser Module
7.Raiser Stand
7
2
8.Control Panel
9.Emergency Stop Button
10.Security Lock
11.TF Card Slot
12.Type-C Port
13.Power Input
14.Power Button
