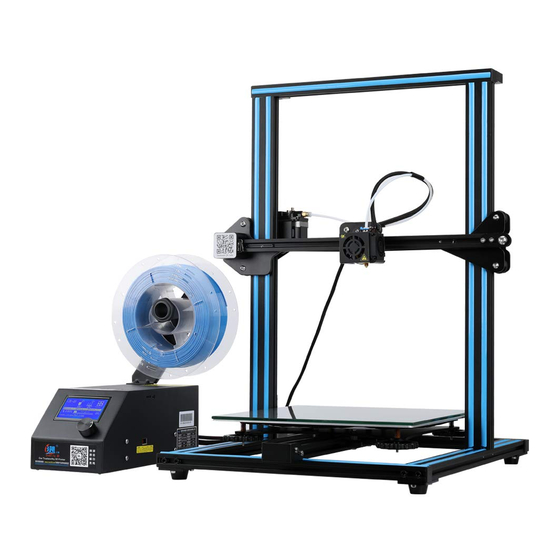

CR-10 Series 3D Printer User Manual

The User Manual is for the CR-10 Series of 3D printers. It is also

applicable for the CR-10S/CR-10 S4/CR-10 S5.

But CR-10 mini without T-Bracket (Right) & Decoration Strip.

Due to the different types of devices、hardware and software

upgrade, it is normal if the devices have little different. Please be

subject to the actual products.

Detailed instructions for using are available on the TF card.

V5.1

Table of Contents

Need help?

Do you have a question about the CR-10 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Creality CR-10 Series

Page 1 CR-10 Series 3D Printer User Manual The User Manual is for the CR-10 Series of 3D printers. It is also applicable for the CR-10S/CR-10 S4/CR-10 S5. But CR-10 mini without T-Bracket (Right) & Decoration Strip. Due to the different types of devices、hardware and software upgrade, it is normal if the devices have little different.
Page 2 Nozzle Diameter Standard 0.4mm Precision ±0.1mm Filament 1.75mm PLA File Format STL/OBJ/AMF Working Mode Online or TF card offline Slice Software Creality Slicer/Cura/Repetier-Host/Simplify3D Input:AC 115V/230V 50/60Hz Power Supply Output:DC 12V Total Power 270W 270W 250W 270W 270W Bed Temp. ≤100℃...
Page 3: Table Of Contents
CONTENTS Dear Customers: Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer. Our 3D team will always be ready to give you the best service. Please contact us via the phone number or e-mail address provided at the end when you encounter any problem with the Printer.
Page 4 NOTES Do not use the printer in other wrong ways to avoid personal injury or property damage. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
Page 5: Introduction
Introduction Filament Holder Control Box Nozzle Assembly Connection Platform Connection Power Cable Connection Extruder (E) Stepper Z Gantry Frame X Limit Switch Nozzle Kit X Stepper TF Slot and USB Port Z Stepper Display Screen Control Knob Z Limit Switch Voltage Selection Base Frame Y Limit Switch...
Page 6: General List
General List Tool Box Control Box Base Frame Gantry Frame Tool list Image Name Image Name Image Name Spool & Nuts 1set Power Cable Scraper Spool Holder USB Cable Cable Ties 1set TF Card & Card PTFE Tubing Hex keys, Wrench 1set 1set Reader...
Page 7: Device Installation
Device Installation u Install the T-Shaped Fixing Block. u Install the Gantry Frame Note: Make sure that the nut for pro file h a s b e e n t u r n e d b y 9 0 ° before fastening the T-shaped fixing block.
Page 8 ◆ Install the Rack Attach the Bracket Attach Spool Holder Finished with two thumb screws. with included Nuts ◆ Installation decoration strip Installation decoration strip into Cut off the excess material with Attach the Decoration strip to all the notch, starting from one end. the diagonal pliers parts needing to be decorated.
Page 9: Cable Connection
Cable Connection Connect the Stepper Motors according to the yellow labels on the 6pin (4-wire) side. Y Stepper and Limit Switch Connect the Limit Switches according to the Extruder (E) Stepper yellow labels on the 3pin (2-wire) side. X Stepper and Limit Switch Z Stepper and Limit Switch Connect the aviation connectors to the ports...
Page 10: Screen Information
Screen Information Menu Sub Menu Explanation Info Screen↑ Main↑ Return Push：OK/Enter Sub Menu Screen Information Turn：Change Option/Value Auto Home Return to Zero Moving X Y Z axis or Extruder by Move Axis→ inputting Bed Auto Leveling Close motor and move X Y Z axis by Disable Steppers Prepare→...
Page 11: Loading Filament
2、Feed Filament Loading Filament 1、Preheat Method 1 Press and hold the extruder lever then insert the 1.75mm filament through the small hole of the extruder. Continue feeding until you see filament come out of the nozzle. Method 2 Tip：How to Replace the Filament？ 1、Cutting filament near the Extruder and slowly feed new filament until the new filament get into the PTFE tube 2、Preheating the nozzle,Press and hold the extruder, extract the filament,...
Page 12 Bed Leveling 1. Prepare →Auto Home. Waiting for the nozzle to move to the left/front of the platform.→ Prepare→Disable Steppers(Close stepper drive，release motor） 1111111 11111 The nozzle is too far away from the platform, so the filament can not adhere to the platform. Filament are extruded evenly, just sticking on the platform.
Page 13: Software Installation
Software Installation 1. Double click to install the software. 2、Double click to 3. Select language→Next→Select your machine→Next→Finish. open the software.
Page 14 First Printing 1.Slicing Open the software→Load→Select the file→Wait for slicing to finish ,and save the gcode file to TF card. 2.Printing Insert the TF card→ Print → Select the file to be printed.
Page 15 After- Sales Service (3) Equipment failure or damage caused by unauthorized modification Service of the equipment (private modification includes: 1. modification of the nozzle assembly; 2. modification of the machine structure; 3. use 1.The printer can be returned within seven days, 15 days replacement, one of third-party components;...
Page 16 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. 12/F, Block 3, JinChengYuan, Huafan Road, Tongsheng Community, Dalang, Longhua District, Shenzhen, China, 518109 Official Website: www.creality3d.cn Tel: +86 755-2105 9455 E-mail: info@creality3d.cn cs@creality3d.cn Facebook QR code Website QR code...
