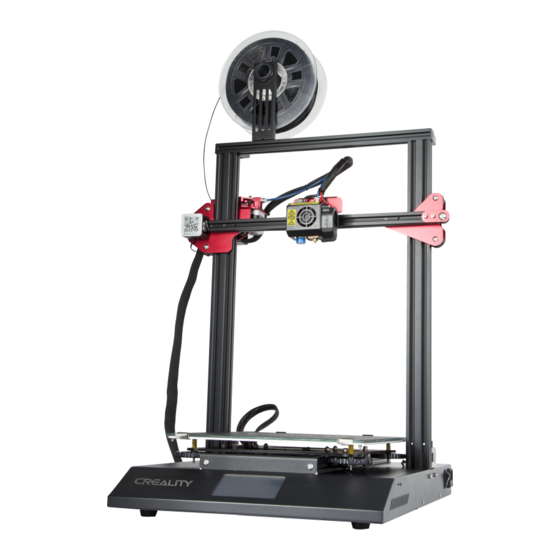

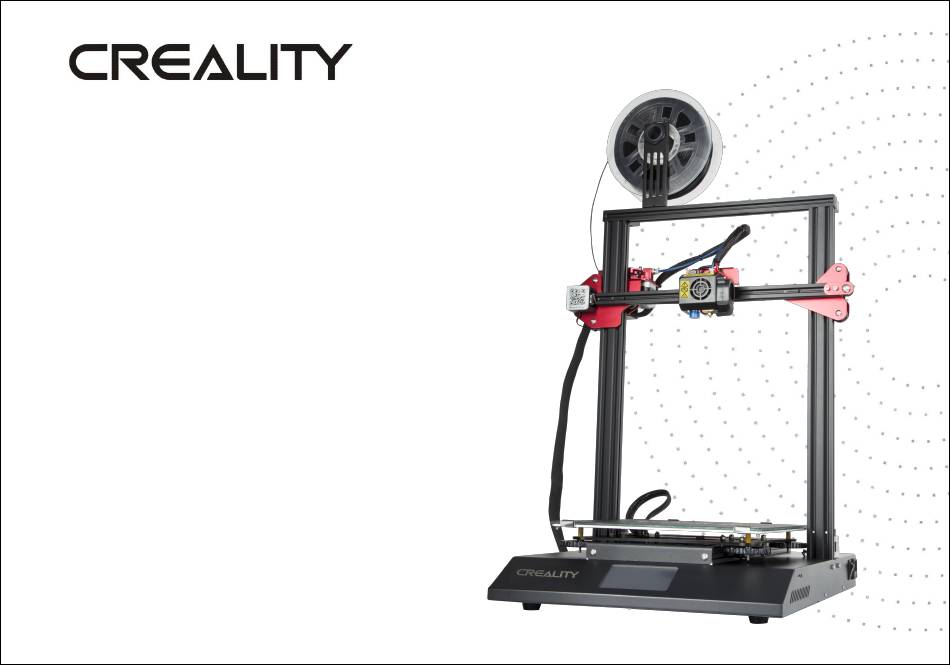

- Page 1 CR-10S Pro 3D Printer User Manual This User Manual is for standard CR-10S Pro. Please plug the power cord into a three-hole power jack. Detailed instructions for use are available on the TF card. V.1.3...
- Page 2 Notes Do not use the printer any way other than described herein in order to avoid personal injury or property damage. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment. Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.
-
Page 3: Table Of Contents
CONTENTS Dear Consumers, Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer. Our 3D team will always be ready to give you the best service. Please contact us via the phone number or e-mail address provided at the end when you encounter any problem with the Printer. -
Page 4: Introduction
Introduction Parameters Model CR-10S Pro Printing Size 300*300*400mm Molding Tech. Nozzle Number Slice Thickness 0.1mm-0.4mm Nozzle Diameter Standard 0.4mm Precision ±0.1mm Fliament φ1.75mm PLA File Format STL/OBJ/AMF Working Mode Online or TF Card Offline Slice Software Cura/Repetier-Host/Simplify3D Input:AC 100-240V 50/60Hz... -
Page 5: General List
General List Tool Box Gantry Frame Base Frame Filament(200g) u Tool List Image Name Image Name Image Name Wrench & Screw Filament Holder PTFE Tube 1set driver Bracket X-Axis Spacer Filament Holder 1set TF Card & Reader Tube Feeler Filament Holder Spatula 1set Spare Parts... -
Page 6: Device Installation
M4X8 2pcs 4pcs Device Installtion M5X25 M4 T-nut X-Axis Spacer u Gantry Frame Installation u Filament Holder Installation M4X8 & T-nut 2pcs u X axis adjustment 100mm 100mm M5X25 4pcs... -
Page 7: Cable Connection
Cable Connection Ribbon Cable *Plug the power cord into a three-hole power jack. -
Page 8: Screen Information
Screen Information Main Sub Menu Explanation Menu Stop Screen Information Pause/Continue Automatic Print speed Selected file TF card Nozzle temp. Manual Adjust Hot-bed temp Cooling Choose to Print Z offset Automatic PLA\ABS（195°\240°） Levelling Nozzle preheat Manual Temp Hot-bed preheat Refuel Cooling Cool down? Yes\No Moving... -
Page 9: Loading Filament
u Feeding Loading Filament u Preheat Method 1、 Press and hold the extruder lever and insert the 1.75mm filament through the filament detector and through the Method 2、 extruder motor. Continue feeding until you see filament extrude from the nozzle. Replacing Filament During Printing: 1、Cutting the previous filament near the extruder and slowly feed new filament though the filament sensor and extruder, until... -
Page 10: Bed Leveling
Bed Levelling 1 1. Slightly tighten the four levelling nuts at the bottom of the platform before initial levelling. 2. Select "Settings" → “Level mode” , click on the number ②. 1111111 11111 The nozzle is too far away from the platform, so the consumables can not adhere to the platform. - Page 11 16 point precise bed height Printer will automatically home position measurement compensate for variable bed height *When using the auto level feature on the CR-10S Pro, we suggest adding a raft from the build plate adhesion section in software settings.
-
Page 12: Software Installation
Software Installation 1. Double click to install the software. 3. Select language→Next→Select your machine→Next→Finish. 2、Double click to open the software. -
Page 13: First Printing
1.Slicing First Printing Insert TF card into computer with Reader. Open the software→Load→Select the file→Wait for slicing to finish ,and save the gcode file to TF card. 2. Print Insert the TF card → Print → Select Model → Print... -
Page 14: Circuit Wiring
Y axis motor Z axis motor 1 Z axis motor 2 Touch screen port1 Circuit Wiring TF Card Y Limit switch Touch screen port2 Mini usb port EXP1 12864 Screen port EXP2 Hot bed power input Power input Reserved port Uncontrollable fan Bed thermistor 30PIN Cable port... - Page 15 After- Sales Service (3) Equipment failure or damage caused by unauthorized modification Service of the equipment (private modification includes: 1. modification of the nozzle assembly; 2. modification of the machine structure; 3. use 1, The printer can be returned within seven days, 15 days replacement, of third-party components;...
- Page 16 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. 12/F, Block 3,JinChengYuan,Huafan Road,Tongsheng Community, Dalang, Longhua District,Shenzhen,China,518109 Official Website :www.creality3d.cn Tel:+86 755-2105 9455 E-mail：info@creality3d.cn cs@creality3d.cn Website QR code...
