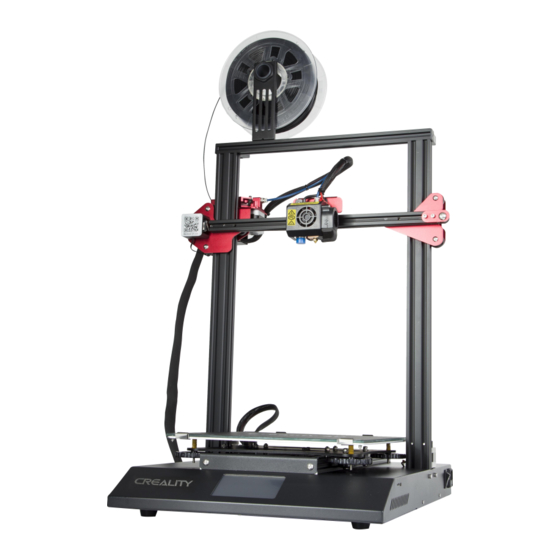

- Page 1 CR-10S Pro Printer Guide Book To make Top-quality 3D printer ◆ This guide book is for standard CR-10S Pro. ◆ Please plug the power cord into a three-hole power jack. ◆ Detailed instructions for use are available on the TF card.
-
Page 2: Table Of Contents
Contents Introduction........1 Bed Leveling........7 General List........2 Software Installation......9 For the First Printing......10 Device Installation......3 10. Circuit Wiring........11 Cable Connection......4 11. After-Sales Services......12 Screen Information......5 Loading Filament......6 Preface Dear consumers, Thank you for choosing our products. For the best experience, please read the instructions before operating the Printer. Our 3D team will always be ready to give you the best service. - Page 3 Notes Do not use the printer any way other than described herein in order to avoid personal injury or property damage. Do not place the printer near any heat source or flammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment.
-
Page 4: Introduction
1. Introduction 1. X Limit switch 5. TF slot & USB port 9. Filament holder 13. XL bed-leveling nut 2. Nozzle kit 6. Z-axis motor (Z2) 10. Y Limit switch 14. Extruder (E) motor 3. Hot bed 7. Z-axis coupler (Z2) 11. -
Page 5: General List
2.General List Base Frame Gantry Frame Tool Box Filament (200g） Tool List Image Name Image Name Image Name Wrench & Screw Filament Holder PTFE Tube driver Bracket Filament Holder X-Axis Spacer TF Card & Reader Tube Feeler Filament Holder Spatula Spare Parts Tube Nuts M5X25 black Hex-... -
Page 6: Device Installation
3. Device Installation 2pcs M4X8 2pcs M4 T-nut M5X25 4pcs X-Axis Spacer u Gantry Frame Installation u Filament Holder Installation M4X8 & T-nut 2pcs u X axis adjustment 100mm 100mm M5X25... -
Page 7: Cable Connection
4. Cable Connection Ribbon Cable *Plug the power cord into a three-hole power jack. -
Page 8: Screen Information
5. Screen Information Screen Information Main Explanation Menu Menu Automatic Stop Manual Pause/Continue Print speed Cooling Choose to Print Selected file TF card Nozzle temp. Hot-bed temp Adjust Z offset Levelling Refuel Automatic PLA\ABS（195°\240°） Nozzle preheat Moving Manual Hot-bed preheat Temp Motor Cooling... -
Page 9: Loading Filament
6. Loading Filament u Feeding u Preheat Method 1 Press and hold the extruder lever and insert the 1.75mm filament through the filament detector and through the Method 2 extruder motor. Continue feeding until you see filament extrude from the nozzle. Replacing Filament During Print: 1、Cut the previous filament near the extruder and slowly feed new filament though the filament sensor and... -
Page 10: Bed Leveling
7. Bed Leveling pt.1 1. Slightly tighten the four levelling nuts at the bottom of the platform before initial levelling. 2. Select "Settings" → “Level mode” , click on the number ②. 3. Adjust the platform height by turning the knob underneath. Use a piece of A4 paper (standard printer paper) to assist with the adjustment, making sure that the nozzle lightly presses on the paper. - Page 11 Restore hotend to original Auto-level the printing surface measurement compensate for variable bed height home position *When using the auto level feature on the CR-10S Pro, we suggest adding a raft from the build plate adhesion section in Cura's settings.
-
Page 12: Software Installation
8. Software Installation 1. Double click the Cura icon to install the Cura Slicing Software. CR-10S Pro 2. Start Cura 3.0.2 from the Start Menu. 3. Select Other→Creality CR-10→ Rename the printer：CR-10S Pro →Add Printer. 4.Settings→Printer→Manage Printers... 5.Change Printer Settings to （300,300,400）. -
Page 13: For The First Printing
9. The First Print 1. Slice test Open Cura → Open File → Select Model → Slice Model → Save to Removable Drive 2. Print Insert the TF card → Print → Select Model → Print... -
Page 14: Circuit Wiring
10. Circuit Wiring Y axis motor Z axis motor 2 Z axis motor 1 Touch screen port1 TF Card Y Limit switch Touch screen port2 Mini usb port EXP1 12864 Screen port Hot bed power EXP2 input Power input Reserved port Uncontrollable fan Bed thermistor 30PIN Cable port... -
Page 15: After-Sales Services
11. After- Sales Service After-sales Service Card Product Name:________________________________ After-Sales Service Terms Purchase Date:________________________________ 1.We provide a 12-month warranty on 3D printers (excluding the nozzle assembly) purchased on or after January 1, 2017 and a 3-month warranty on the nozzle S/N No.:_____________________________________ assembly thereof. - Page 16 To be the Chief Evangelist Shenzhen Creality3D Technology CO.,LTD. Tel:+86 755-2103 4006 Official Website :www.creality3d.cn C o m p a n y A d d r e s s : 1 2 / F , B l o c k 3 , J i n C h e n g Y u a n , T o n g s h e n g C o m m u n i t y , D a l a n g , L o n g h u a D i s t r i c t , S h e n z h e n , C h i n a , 5 1 8 1 0 9...
