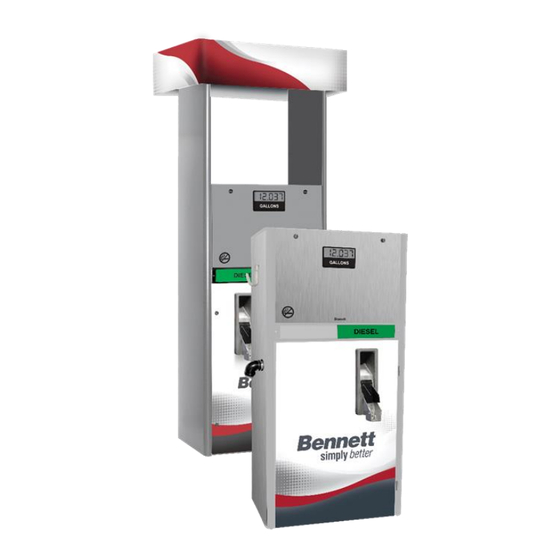

Bennett 3000 Series Installation Manual
  1. Manuals
  2. Brands
  3. Bennett Manuals
  4. Dispenser
  5. 3000 Series
  6. Installation manual

Bennett 3000 Series Installation Manual

Hide thumbs Also See for 3000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
PARTS
Installation Manual
Manu
3700 Commercial, 3800 Retail, Remote
153871 Rev A 06.19.2023
and Self-Contained Dispensers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Bennett 3000 Series

Summary of Contents for Bennett 3000 Series

  • Page 1 PARTS Installation Manual Manu 3700 Commercial, 3800 Retail, Remote 153871 Rev A 06.19.2023 and Self-Contained Dispensers...
  • Page 2 Before signing off on a shipment open each package and visually inspect. Inspect shipped materials for damage or missing equipment. Bennett Pump Company is not liable for the hazards of transportation. Please address damage claims directly to the delivery company.

  • Page 3: Table Of Contents

    Model Number and DIN ........40 Lifting and Transporting ........10 Appendix C Site Preparation 11.1 Wiring Diagrams ..........42 Underground and Aboveground Storage Tanks .. 12 11.2 Footprint Drawings ..........43 Plumbing Requirements ........14 3000 Series Installation Manual...
  • Page 4 GASOLINE AND FUEL ETHANOL IS FLAMMABLE. NO SMOKING OR OPEN FLAME. DANGER: FUEL (INCLUDING ETHANOL) IS POISONOUS AND SHOULD NOT BE INGESTED. DANGER: DISCONNECT ALL POWER TO THIS EQUIPMENT AND ASSOCIATED SUBMERGED PUMP(S) DURING INSTALLATION, SERVICE, OR ANY MAINTENANCE (I.E., CHANGING FILTERS) 3000 Series Installation Manual...
  • Page 5 WARNING: Failure to properly ground the equipment can cause injury or damage to the equipment and will void the Bennett Limited Warranty. WARNING: Do not use conduit as a ground. Do not use wire nuts on ground wires. Use only compression connectors on ground wires.
  • Page 6 IMPORTANT: All installations of Bennett products and accessories (i.e., nozzles, hoses, and breakaways) must be performed by a trained and licensed technician accordance to all codes, standards, and regulations.

  • Page 7: Introduction

    Standards and Technology. Compliance with these standards protects the operator and the consumer from personal injury. • Bennett Pump Company will not assume responsibility or liability for any consequential injury or damage caused by the unauthorized alteration of its products. 1.1 HAZARDOUS LOCATIONS Classified areas are hazardous locations.

  • Page 8: Recommended Tools, Equipment, And Materials

    Physical barriers to secure the work area. • Pipe Joint Sealing Compound - UL Classified • Potting compound – NFPA 70 approved • Rigid metal conduit • Schedule 40 steel inlet pipe • Static Grounding Strap 3000 Series Installation Manual Back to TOC...

  • Page 9: Related Documents

    Parts Manual 147828 147828-Simply Secure Payment - Conexxus Protocol Programming, Service & Parts Manual Accessories 105022 515 Installation & Service Manual 141938 515XP Installation & Service Manual 139127 Bennett 3K 719 Configuration Visual Aid 3000 Series Installation Manual Back to TOC...

  • Page 10: Features

    2” (5 cm) dia NPT OUTLET 1-1/4” (4.4 cm) dia NPT PROTOCOL Bennett Current Loop, Generic Current Loop, RS485, Pulse Output 60 gpm / 230 lpm (Remote) FLOW RATE* 40 gpm / 150 lpm (Suction) *3K Big Fueler Remote and Suction flow rates are approximate and represent one hose active with Master and Satellite in simultaneous flow with a 1-1/2”...

  • Page 11: Specifications

    Board to a pump relay. Every additional dispenser utilizing the same pumping unit must use the same phase of power to control the relay. • Red Jacket, FE Petrol Control Box relays, or equivalent are acceptable. 3000 Series Installation Manual Back to TOC...

  • Page 12: Components

    Suction 2-Horsepower 3-Phase ..............380 VAC 5/600 Hz CAUTION: Areas that frequently experience low AC line voltage or brownouts, must install thermal motor protectors between the Bennett power board and pump motor. Refer to the table below for motor protector sizing.
  • Page 13 Figure 3.1. The 719 Control Board 1. Ground Wire 5. Calibration Switch 2. 120 VAC Neutral or 220 VAC Line 6. Battery Kill 3. 120 VAC Hot or 220 VAC Line 4. ON/OFF Switch 3000 Series Installation Manual Back to TOC...

  • Page 14: Layout

    Battery Debit Keypad Pin Pad, 5x8 Alpha 719 Control Board Two w/ Active 4 units. SBC2 Lower cabinet components: Meters Suction Pump Figure 3.2. Cabinet Components - Installed components vary depending on order. 3000 Series Installation Manual Back to TOC...
  • Page 15 Chapter 3 Building Blocks, Section 308 Reach Ranges, and Section 309 Operable Parts. For more information on ADA regulations, see 2010 ADA Standards for Accessible Design at https://www.ada.gov/law-and-regs/design-standards/2010-stds/ The 3000 series meets and complies with Sections 308 Reach Ranges and 309 Operable Parts within the ADA Standards for Accessible Design. 48”...

  • Page 16: Receive, Lift & Transport The Dispenser

    IMPORTANT: When lifting with straps, do not allow the straps to go under any of the hydraulic castings such as the meter outlet, copper tubes or valves. The straps should be lifting only against the front and rear chassis. IMPORTANT: To avoid damage, follow the recommended lifting methods. 3000 Series Installation Manual Back to TOC...
  • Page 17 See Figure 4.3 and Figure 4.4. 6. Place the dispenser gently on the island, carefully line up the base anchor bolt holes with the anchor bolts embedded in the concrete island. Figure 4.4. Lifting Brackets. 3000 Series Installation Manual Back to TOC...

  • Page 18: Site Preparation

    Site Preparation 5 SITE PREPARATION Bennett Pump is not responsible for any damage to the dispenser or for improper operation due to accidents, abuse, or faulty installation. Installation specifications will vary by location; however, this manual assumes certain basic preparations have been met prior to installing the dispenser.
  • Page 19 Underground Storage Tanks (USTs) Laws and Regulations. IMPORTANT: Bennett Pump is not responsible for any damage to the dispenser or for improper operation due to accidents, abuse, or faulty installation. We highly recommend installing new wires in the underground metal conduits to validate the equipment warranty.

  • Page 20: Plumbing Requirements

    Appendix, compare the measurements of the dispenser sump, adjust if necessary. • If no containment sump is used, follow all piping backfill and compaction instructions observed by national, state, NFPA, and local codes. 3000 Series Installation Manual Back to TOC...
  • Page 21 Flex pipe also aids proper alignment of the product union or coupling. • Refer to the Footprint Drawings in Appendix B for plumbing connection specifications. Use flex pipe here Figure 5.1. Underground Tank, Piping, and Dispenser. 3000 Series Installation Manual Back to TOC...
  • Page 22 CAUTION: Dispensers must be installed with provisions for expansion relief, which will relieve at pressures not to exceed 50 psi (345 mPA). Do not use line check valve between dispenser and tank unless provided with relief valve. 3000 Series Installation Manual Back to TOC...

  • Page 23: Shear Valve Installation

    “prime” of the suction line so that liquid product does not drain back to the tank. • Follow all instructions contained in the vertical check valve’s installation manual and observe all local codes. 3000 Series Installation Manual Back to TOC...

  • Page 24: Wiring Requirements

    Use only UL Listed Rigid metal conduit and UL listed sealing fittings with conductor seals. The following wiring requirements must be met to comply with Bennett’s Limited Warranty: • All dispensers and electrical connection boxes must be grounded per NFPA 70 (National Electrical Code).
  • Page 25 • After all wires have been pulled through the conduit, Bennett recommends verifying the integrity of the site’s wire insulation with a megohmmeter in accordance with the device manufacturer’s instructions. •...

  • Page 26: Installing The Dispenser

    Transport the dispenser on the shipping pallet as close as possible to the final destination. IMPORTANT: All installations of Bennett products and accessories (i.e., nozzles, hoses, and breakaways) must be performed by a trained and licensed technician in accordance with all codes, standards, and regulations.
  • Page 27 High Hose dispenser: 4 anchor bolts required minimum in the outer 4 mounting holes. 4. Connect the supply pipes, impact safety valves, unions, and inlet pipes using UL classified pipe joint sealing compound, refer to Section 5.2 Plumbing Requirements and the footprint drawings in Appendix B. 3000 Series Installation Manual Back to TOC...

  • Page 28: Wire Routing

    Wiring and Communication Diagram Current Loop, Generic Current Loop, and RS-485 for additional information. • The 3000 Series dispenser can be equipped with one, two or four hoses per unit. • The number of 719 Control Boards varies per dispenser: o One, two, or four hose units have one 719 Control Board, o Active 4 units contain two 719 Control Boards.

  • Page 29: Ac Power Connection

    On the disconnected TS1 plug: Using an ohmmeter verify the resistance between the green ground on Pin 1 and the neutral wire on Pin 2 is less than 1 ohm. Troubleshoot and repair until the required resistance is achieved. 3000 Series Installation Manual Back to TOC...

  • Page 30: Communication Wiring

    All wiring inside the electrical enclosure of the dispenser must be securely held in place with fasteners and wire clips. For all two (2) wire communication, Bennett strongly recommends twisting the associated wires together no less than 3 turns per foot to reduce the effects of electrical noise on the communication circuit.
  • Page 31 Qty. Board Connector Description Size Orange Current TS1, PIN 1 (+positive) Loop Yellow Personality TS2, PIN 2 (-negative) Module Bennett Shared Loop 2 Current Wires Shunts removed from JP1 & JP2 (2-sided dispenser) 3000 Series Installation Manual Back to TOC...
  • Page 32 TS1, PIN 1 (+positive) Field TS1, PIN 2 Current Jumper to TS2 PIN 1 Loop Yellow Personality TS2, PIN2 (-negative) Module Top 2 Pins Shunts of JP1 and Shunts installed on JP1 & JP2 3000 Series Installation Manual Back to TOC...
  • Page 33 Field wiring connections are between the Bennett Pulse Output Board on the 719 Control Board (or optional junction box) and a third-party interface system. One Pulse Output Board can handle up to two hoses (products).
  • Page 34 (Tank Gauge) Pulse Out (+ positive) Brown (Tank Gauge) Pulse Out (- negative) Pink (Source) In-Use Product 1 Orange (Signal) In-Use Product 1 Yellow Authorize Signal Product 1 Black Authorize Neutral Product 1 White 3000 Series Installation Manual Back to TOC...
  • Page 35 (Source) In-Use Product 1 Orange (Signal) In-Use Product 1 Yellow (Source) In-Use Product 2 Black (Signal) In-Use Product 2 White Authorize Signal Product 1 Black Authorize Signal Product 2 Gray Authorize Neutral Product 2 White 3000 Series Installation Manual Back to TOC...
  • Page 36 Payment - Conexxus Protocol Programming, Service & Parts Manual 6.4.6 PAYMENT – RS-485 For all RS-485 communication, Bennett strongly recommends the use of three (3) wires twisted together no less than 3 turns per foot to reduce the effects of electrical noise on the communication circuit. Do not connect the common wire if one is present.

  • Page 37: Connecting To Submerged Pump Control Relays

    P1 to P3 Brown Jumper P2 to P4 Figure 6.2. Center photo: Blue and brown jumper wires send power to the submersible pump. Left and right photos enlarge the areas the arrows point to. 3000 Series Installation Manual Back to TOC...
  • Page 38 (single product) or two motors (dual product). Each motor requires two or three field wires. CAUTION: A Thermal Motor Protector MUST be installed between the Bennett Power Board and the 1-HP Pump Motor in areas that frequently experience Low AC Line Voltage or Brownouts.
  • Page 39 Junction Box Wire to From Circuit To Motor QT Y To Connector Product B Breaker 2 Relay Motor Control 14 AWG Brown TS2, L1 14 AWG Orange TS2, L2 14 AWG Yellow TS2, L3 3000 Series Installation Manual Back to TOC...

  • Page 40: Installing The Wire Separator

    Verify that the negative terminal is connected to the battery. • Verify the battery wires terminate from the battery to the J17 connector on the 719 Control Board. 12 VDC Battery Figure 6.4. Illustrated plan view of battery connections. 3000 Series Installation Manual Back to TOC...

  • Page 41: Activate The Dispenser

    2. Switch the ON/OFF switch on the 719 Control Board to the ON position. 3. Close and lock all dispenser doors. Refer to the 3000 Series Operation Manual for more information regarding dispenser start up. 7.2 PURGE AIR FROM THE HYDRAULIC LINES After all electrical connections are complete, the dispenser fuel product lines must be purged of all trapped air.
  • Page 42 To avoid damage to pumping units running more than 5 minutes, add a quart of oil in the air eliminator for lubrication. Refer to priming the pumping unit section below. 3000 Series Installation Manual Back to TOC...
  • Page 43 This will allow trapped air to escape and prevent over speeding of the meter. 6. Once the pump has dispensed 50 gallons of fuel, the SB100 meter should be tested for calibration. Please see the 3000 Operation Manual for calibration instructions. 3000 Series Installation Manual Back to TOC...

  • Page 44: Final Installation Checklist

    Note: Perform this operation with the dispenser power off. ☐ All dispenser product meters have been calibrated. Refer to 3000 Series Operators Manual. ☐ Verify the correct brand panels, nozzles, and hoses are installed for each grade.

  • Page 45: Abbreviations And Acronyms

    Petroleum Equipment Institute Polyvinyl Chloride Submersible Turbine Pump THHN Thermoplastic High Heat-resistant Nylon-coated Telecommunications Industry Association/Electronic TIA/EIA Industries Alliance Underwriters Laboratories, Inc. Underground Storage Tank Voltage Alternating Current Voltage Direct Current Volt-Ohm meter 3000 Series Installation Manual Back to TOC...

  • Page 46: Model Number And Din

    The first seven alpha numeric are the model number. The model number and DIN are on the serial label located on side 1 of the dispenser on the vapor deck. The following DIN defines what you will find on the 3000 Series. 3000 Series Installation Manual Back to TOC...
  • Page 47 Appendix B PLACE HOLDER PAGE FOR DIN 3000 Series Installation Manual Back to TOC...

  • Page 48: Wiring Diagrams

    11.1 WIRING DIAGRAMS The following wiring diagrams are provided on the following pages. Page Part Number Drawing 135043 Bennett Current Loop 719 Wiring Diagram 135044 Generic Current Loop 719 Wiring Diagram 135048 RS485 719 Wiring Diagram 135305 RS232 Port Board 719 Wiring Diagram (Mexico Only)

  • Page 49: Footprint Drawings

    Remote | Master | High Hose | High Flow Big Fueler 137786 Remote | Satellite | High Hose | High Flow Big Fueler 137787 Remote | Combo | High Hose | High Flow Big Fueler 3000 Series Installation Manual Back to TOC...
  • Page 50 Appendix C 3000 Series Installation Manual Back to TOC...
