Unpacking and Installing the MGC+50/100
1 Place the MGC+ unit on a stable flat surface in the selected location.
2 Release the clasp locks at the bottom, and lift the MGC+ package
top cover.
3 Lift the MGC+ unit and place it on the required flat surface.
If you are rack mounting the MGC+ unit, allow a minimum
clearance of 3" above the unit.
4
To mount the MGC+100 in a 23" rack, place the MCU in the rack
and while supporting it, screw the mounting brackets to the rack
securing it with bolts and self-locking nuts (which you provide).
5
To connect to the power source, insert the power cable into the
power connector on the rear panel of the MGC+ unit and insert the
power cable into the power source socket.
6
Turn on the power switch.

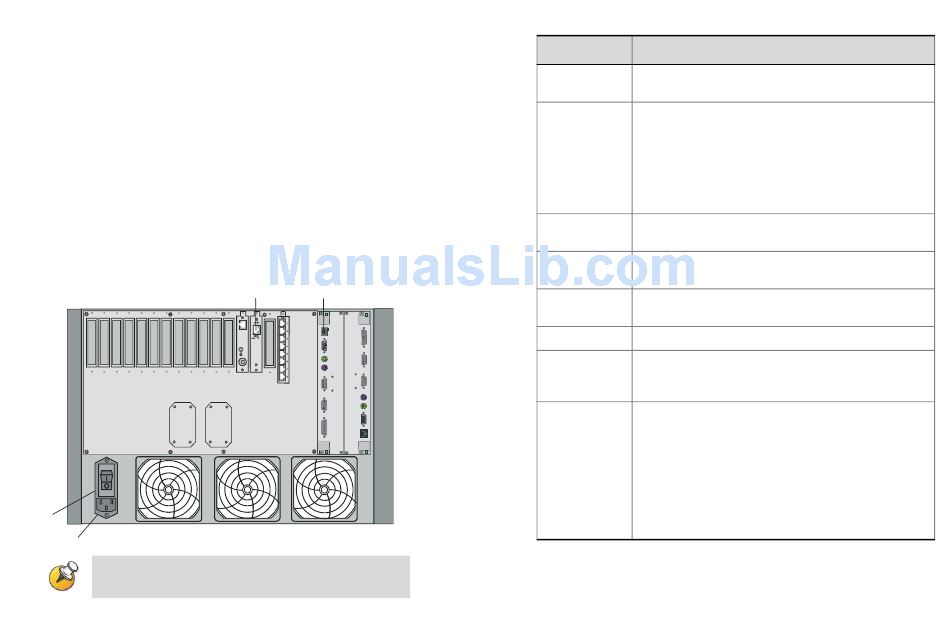

Main Switch
AC Inlet
The connections for the MGC+50 and the MGC+100 are
similar, therefore only the MGC+100 is shown in the figure
above.
2
IP Network LAN
DEBUG
LAN
VGA
MOUSE
COM2
LINE IN KEYBOARD
COM1
COM1
KEYBOARD
COM2 MOUSE
VGA
ALARMS
LAN
Field Description
Default Router If DHCP is not used, enter the IP address of the default
router.
DNS Select this check box to indicate that a DNS server is
used in the network. Then select one of the following:
• Specify - to enter the IP address of the DNS server.
• Auto - to automatically detect the primary DNS IP
address, provided the DNS Server is defined in the
DHCP server and the DHCP - obtain IP Address
automatically check box was selected.
DNS Server IP If DNS–Specify was selected, enter the IP address of the
Address primary DNS server.
Local Domain Enter the domain name where the MCU is installed, for
Name example, polycom.com.
H.323 Select this check box to indicate that H.323 participants
can connect to the MCU using this service.
Gatekeeper Select this check box when a gatekeeper is used.
Gatekeeper IP Enter either the gatekeeper's host name (if the DNS
Address or server is used), or IP address.
Name
Prefix Enter a number to be used by H.323 participants to dial to
the MCU as part of the dial-in string.
789
Enter to use the default Entry Queues and Meeting
Rooms shipped with the MGC+ unit without modifying
their properties.
When PathNavigator is used, this prefix automatically
registers with the gatekeeper. When another gatekeeper
is used, this prefix usually must also be defined in the
gatekeeper.
