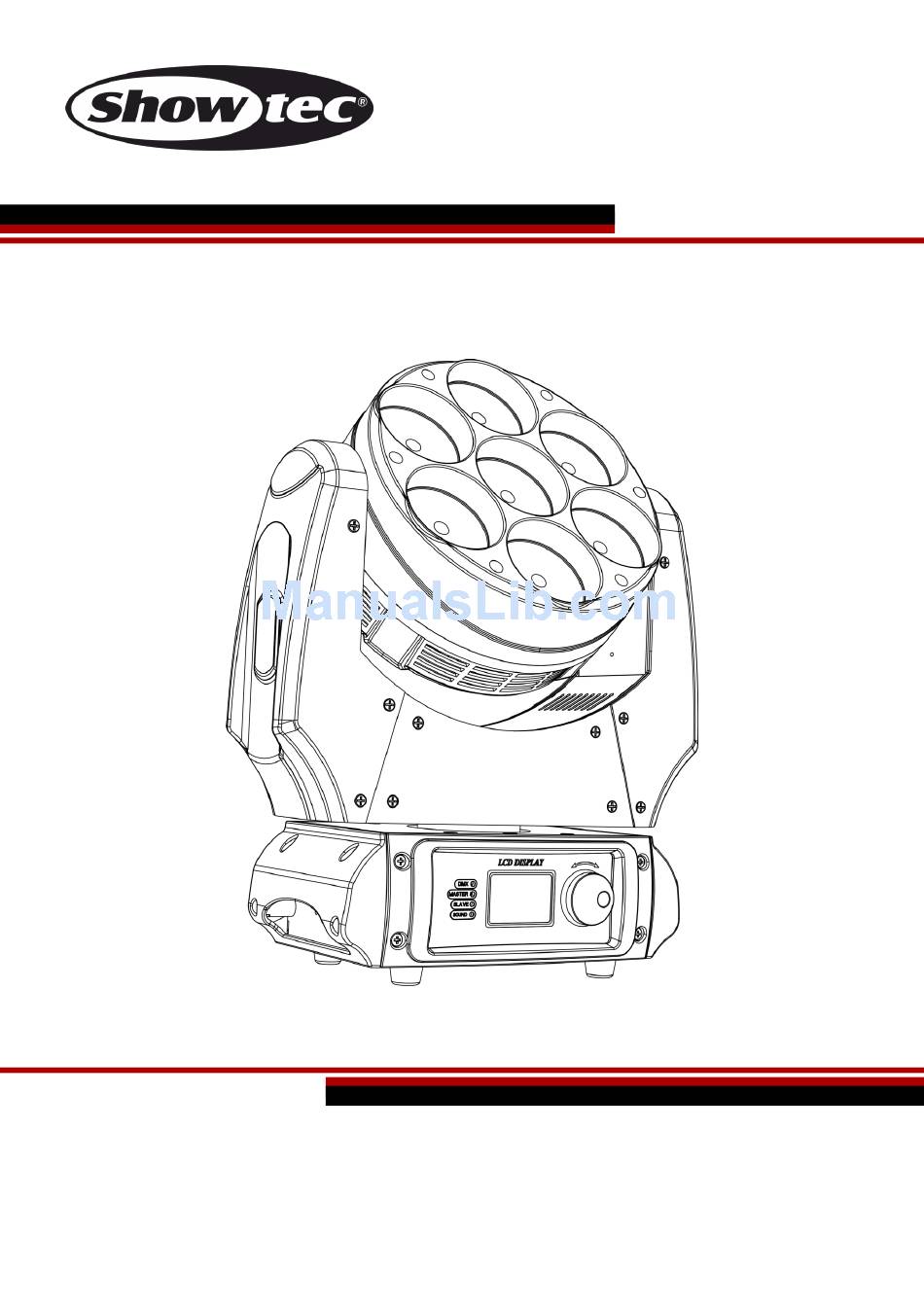

- Page 1 MANUAL ENGLISH Phantom 70 Beam RGBW V1 Ordercode: 40051 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Phantom 70 Beam RGBW Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Mounting a bracket and quick-locks to the underside of the Phantom 70 Beam RGBW......5 Connection with the mains............................6 Return Procedure ................................ - Page 3 Phantom 70 Beam RGBW Troubleshooting ................................28 No Light ..................................28 No Response to DMX..............................29 Product Specifications ..............................30 Dimensions ..................................31 Notes ....................................32 Ordercode: 40051...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Phantom 70 Beam RGBW ● Mounting bracket with 2 mounting screws ●... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Phantom 70 Beam RGBW Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 1 meter. ... -
Page 7: Connection With The Mains
Phantom 70 Beam RGBW The Phantom 70 Beam RGBW can be placed on a flat stage floor or be mounted to any kind of truss by means of a mounting bracket with quick-locks. Improper installation can cause serious damage to people and property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Phantom 70 Beam RGBW Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 9: Description Of The Device
Description of the device Features The Showtec Phantom 70 Beam RGBW is a moving-head with high output and great effects The clear optical system, in combination with the RGBW LEDs, creates a vivid beam 8 degree optical system ensuring small and razor-sharp beams ... -
Page 10: Frontside
Phantom 70 Beam RGBW Frontside Fig. 02 01) 7 X 10W RGBW 4-in-1 LEDs 02) Control LEDs 03) LCD Display 04) MENU control NOTE: Knowledge of DMX is required to fully utilize this unit. Ordercode: 40051... -
Page 11: Backside
Phantom 70 Beam RGBW Backside Fig. 03 05) Fuse T3A/250V 06) 3-pin DMX signal connector IN 07) 3-pin DMX signal connector OUT 08) Blue Pro Power connector IN 09) Grey Pro Power connector OUT 10) Power switch ON/OFF 11) Ground/earth connection Installation Remove all packing materials from the Phantom 70 Beam RGBW. -
Page 12: Control Modes
Phantom 70 Beam RGBW Control Modes There are 5 modes: • Built-in programs (Master Mode) • Manual • Sound-controlled • Master/Slave Mode • DMX-512 (8CH, 12CH, 16CH) One Phantom 70 Beam RGBW (Built-in Programs and Manual) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 13: Multiple Phantom Beams (Dmx Control)
Phantom 70 Beam RGBW Multiple Phantom Beams (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-pin XLR cable to connect the Phantom Beam RGBW and other devices. -
Page 14: Fixture Linking
Phantom 70 Beam RGBW Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Phantom 70 Beam RGBW Control Panel Press and turn the control to navigate through the menu options Fig. 06 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. When a DMX signal is present, the DMX LED will blink. The fixtures respond to the DMX signal from the controller. -
Page 16: Menu Overview
Phantom 70 Beam RGBW Menu Overview Ordercode: 40051... -
Page 17: Main Menu Options
Phantom 70 Beam RGBW The Phantom 70 Beam will only show its entire version number at start-up ! Main Menu Options There are 5 menu modes: • 1. DMX-512 • 2. Channel Mode • 3. Run Mode • 4. Functions •... -
Page 18: Channel Mode
Phantom 70 Beam RGBW 2. Channel Mode 01) While in main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 3 available channel modes: ... -
Page 19: Slave Mode
Phantom 70 Beam RGBW 3.3 Slave Mode 01) Turn the MENU control (03) to choose one of 2 built-in Slave modes. 02) Turn the MENU control (03) to toggle between the 2 slave functions: Slave1 (normal slave mode) Slave2 (mirror slave mode) 03) Press the MENU control (03) to confirm your preferred slave mode. -
Page 20: Functions Mode
Phantom 70 Beam RGBW 4. Functions Mode 01) While in main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 9 available functions: ... -
Page 21: Dimmer Curve
Phantom 70 Beam RGBW 4.3 Dimmer Curve 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 4 available modes: Square Law Linear S-curve InvSquare Law 03) Press the MENU control (03) to confirm the mode of your choice. -
Page 22: Back Light
Phantom 70 Beam RGBW 4.6 Back Light 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 3 options: ON (Display continuously ON) OFF (Display turns OFF after 10 seconds) ... -
Page 23: Dmx Channels
Phantom 70 Beam RGBW DMX Channels 8 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-127. Continuous Clockwise rotation from fast slow, between 128- 191. Continuous Counterclockwise rotation from slow to fast, between 192-255. The head can be turned by 540°... -
Page 24: Black Out During Pan/ Tilt Movement
Phantom 70 Beam RGBW 224-230 Color32(R000, G000, B100, W255) 231-255 Color33(R255, G255, B255, W255) Channel 6 – Color Flow 0-15 No function 16-31 Color Jump1 32-47 Color Jump2 48-63 Color Jump3 64-79 Color Jump4 80-95 Color Jump5 96-111 Color Jump6 112-127 Color Jump7 128-143... - Page 25 Phantom 70 Beam RGBW Channel 3 – Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT). Gradual head adjustment, between 0-127. Continuous Clockwise rotation from fast slow, between 128- 191. Continuous Counterclockwise rotation from slow to fast, between 192-255. The head can be turned by 270°...
-
Page 26: Channels
Phantom 70 Beam RGBW 16 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-127. Continuous Clockwise rotation from fast slow, between 128- 191. Continuous Counterclockwise rotation from slow to fast, between 192-255. The head can be turned by 540°... -
Page 27: Black Out During Pan/ Tilt Movement
Phantom 70 Beam RGBW 168-174 Color24(R255, G000, B175, W000) 175-181 Color25(R255, G000, B100, W000) 182-188 Color26(R255, G000, B100, W050) 189-195 Color27(R255, G000, B025, W050) 196-202 Color28(R255, G000, B025, W025) 203-209 Color29(R255, G000, B025, W000) 210-216 Color30(R000, G000, B000, W255) 217-223 Color31(R075, G075, B000, W255) 224-230 Color32(R000, G000, B100, W255) - Page 28 Phantom 70 Beam RGBW Channel 13 – Red color intensity 0-255 Gradual adjustment Red from 0 – 100% Channel 14 – Green color intensity 0-255 Gradual adjustment Green from 0 – 100% Channel 15 – Blue color intensity 0-255 Gradual adjustment Blue from 0 – 100% Channel 16 –...
-
Page 29: Maintenance
Phantom 70 Beam RGBW Maintenance The Showtec Phantom 70 Beam RGBW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 30: No Response To Dmx
Phantom 70 Beam RGBW No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 31: Product Specifications
Phantom 70 Beam RGBW Product Specifications Model: Showtec Phantom 70 Beam RGBW Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 90W max. at full output DMX linking: 30pcs Fuse: T3A/250V Dimensions: 310 x 150 x 382 mm (LxWxH) Weight: 6,4 kg... -
Page 32: Dimensions
Phantom 70 Beam RGBW Dimensions Ordercode: 40051... -
Page 33: Notes
Phantom 70 Beam RGBW Notes Ordercode: 40051... - Page 34 Phantom 70 Beam RGBW Ordercode: 40051...
- Page 35 Phantom 70 Beam RGBW Ordercode: 40051...
- Page 36 ©2016 Showtec...
