Summary of Contents for Black Box EMERALD PE DUAL-HEAD

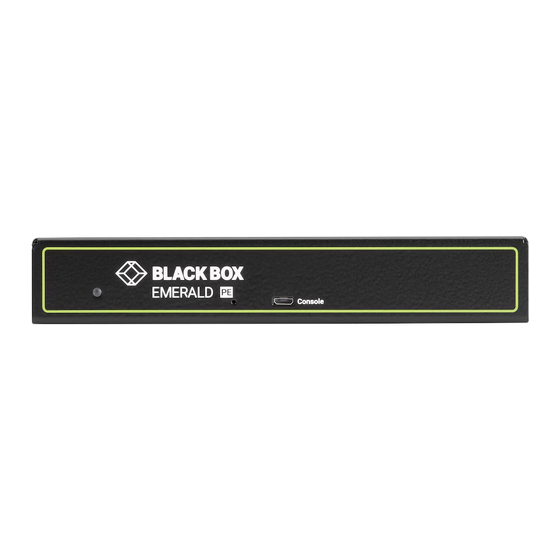

- Page 1 STEP X - Name of Step QUICK START GUIDE EMD2002PE-T, EMD2002PE-R-P, EMD2002PE-K EMERALD PE EMERALD PE DUAL-HEAD DUAL-HEAD 24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM...
- Page 2 STEP 1A - Transmitter Diagrams 10 11...
- Page 3 STEP 1B - Transmitter Components TABLE 1. EMD2002PE-T COMPONENTS NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION Power LED Lights when power is ON Micro USB connector For future use 12 VDC Power In connector Connects to supplied power adapter Connects to network and supports RJ-45 PoE port Power over Ethernet (PoE) Connects to PC/workstation USB...
- Page 4 STEP 2A - Receiver Diagrams 11 12 13 14...
- Page 5 STEP 2B - Receiver Components TABLE 2. EMD2002PE-R-P COMPONENTS NUMBER IN DIAGRAM AT LEFT DESCRIPTION DESCRIPTION Power LED Lights when power is ON Micro USB connector For future use (2) USB Type A connectors Connect to USB peripherals Microphone Connects to microphone Speakers Connects to speakers 12 VDC Power In connector...
- Page 6 STEP 3 - Install SFPs in the SFP cages INSTALL AN SFP MODULE IN THE TX INSTALL AN SFP MODULE IN THE RX 1. Plug a compatible SFP in the SFP slot on the 1. Plug a compatible SFP in the SFP slot on the transmitter unit (TX).
- Page 7 STEP 4A - Connect Power via External Power Supply CONNECT POWER TO RECEIVER CONNECT POWER TO TRANSMITTER Locate the power supply adapter and the AC Locate the power supply adapter and the AC line cord. line cord. 2. Plug the DC connector of the power supply 2.
-
Page 8: Connect The Transmitter
STEP 5 - Connect the Peripherals CONNECT THE RECEIVER CONNECT THE TRANSMITTER 1. Attach the monitor, keyboard, mouse, USB 1. Attach the Emerald PE Transmitter to the and audio devices to the Emerald PE Receiver. target PC/workstation using DVI and USB Type B cables. -
Page 9: Default Settings
STEP 6 - Starting Up and Default Settings DEFAULT SETTINGS STARTING UP Default Settings: 1. Once everything is connected, the unit automatically powers on when it is plugged Transmitter IP Address: 192.168.1.22 in via a power adapter or PoE. Receiver IP Address: 192.168.1.21 2. - Page 10 STEP 7 - Point-to-Point Installation POINT-TO-POINT INSTALLATION 1. Simply connect the transmitter to the receiver using a CATx cable (but do not power up the In a point-to-point configuration, no transmitter yet), then connect a keyboard, administrator setup of the Emerald PE monitor, and mouse to the remote unit (remote Transmitter or the Emerald PE receiver is unit is on at this time).
-
Page 11: Getting Started
STEP 8 - Matrix Installation and Getting Started 5. Once the transmitter is configured, you can MATRIX INSTALLATION now configure the receiver. In a matrix installation, every Emerald PE 6. If the units are on different subnets, transmitter and receiver requires its own IP then routers will need to be used to properly address. - Page 12 STEP 9 - Download the User Manual (Optional) The full user manual/installation guides can be downloaded from the Black Box Web site. FOR US, AUSTRALIA NEW ZEALAND, AND FOR OTHER COUNTRIES CANADA 1. Go to BLACK-BOX.EU/SUPPORTCENTER 1. Go to BLACKBOX.COM 2.
- Page 13 NOTES...
- Page 14 NOTES...
- Page 15 STEP X - Name of Step Contact our free, 24/7 technical support in the US at 877-877-2269 or INFO@BLACKBOX.COM For other countries, go to BLACKBOX.COM/CONTACT-US COPYRIGHT 2021. BLACK BOX CORPORATION. ALL RIGHTS RESERVED. EMD2002PE-T_QSG_REV3.PDF...
- Page 16 NOTES...
