Station Extender Power Supply
Station Extender Cable
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
AC250A
AC254A
AC251A
AC255A
AC252A
AC256A
AC253A
AC257A

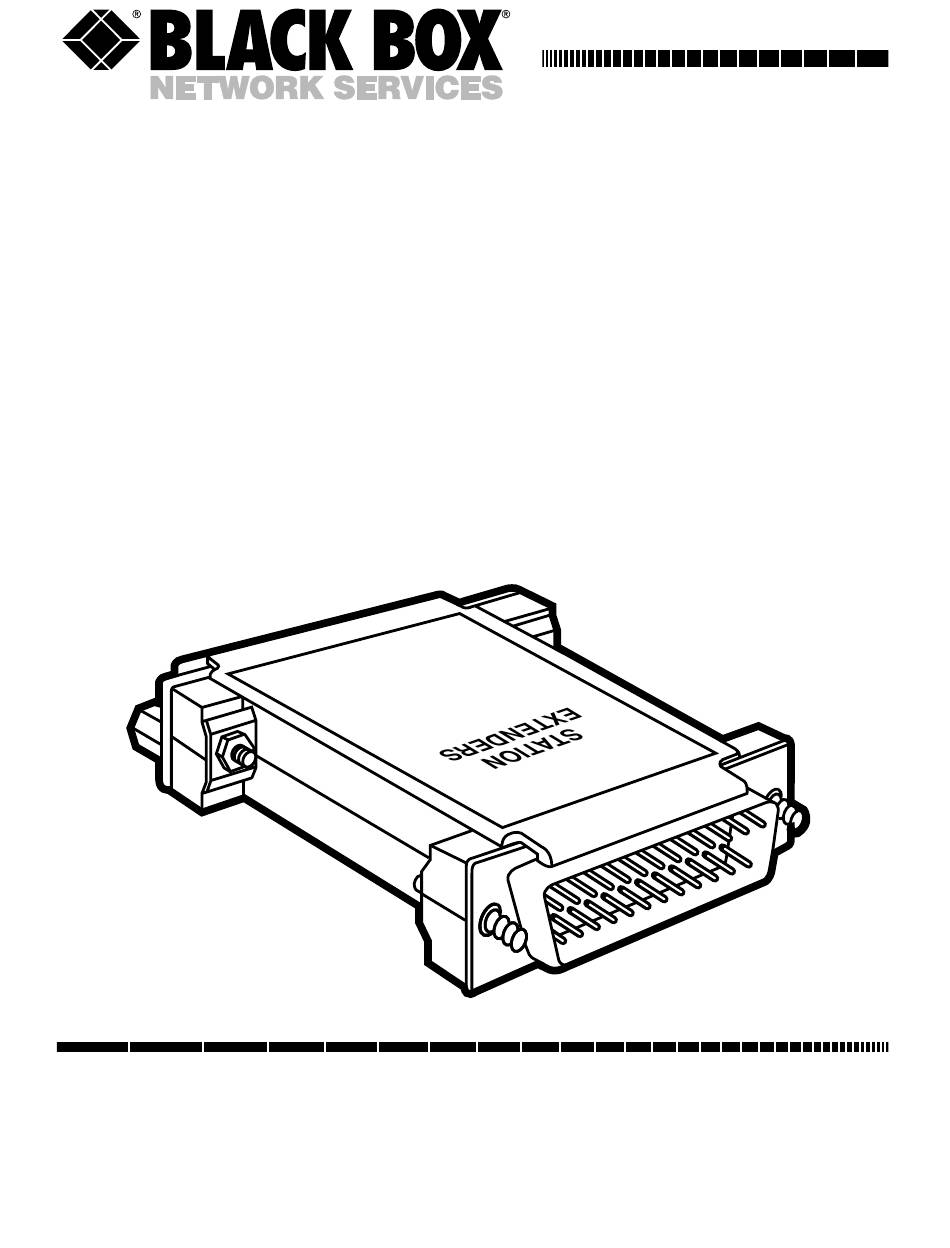

Station Extenders
AC258A
AC259A
PS255A
EHN250-0050
APRIL 1998
EHN250-0100
EHN250-0150
EHN250-0200
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Black Box EHN250-0050
Summary of Contents for Black Box EHN250-0050
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
-
Page 2: Trademarks Used In This Manual
STATION EXTENDERS TRADEMARKS USED IN THIS MANUAL PS/2 is a registered trademark of IBM Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 3: Federal Communications Commission
STATION EXTENDERS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communi- cation. - Page 4 STATION EXTENDERS NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 5 STATION EXTENDERS 10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor. 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato.
-
Page 6: Specifications
STATION EXTENDERS 1. Specifications Indicators (1) Green Power LED Connectors AC250A: LINK: DB25M Computer: DB25F AC251A: LINK: DB25M Keyboard-Monitor-Mouse: DB25F AC252A: LINK: DB25M ServSwitch: DB25M Operating Temperature 32° to 131°F (0° to 55°C) Humidity Up to 85%, noncondensing Altitude Up to 10,000 feet (3048 m) - Page 7 STATION EXTENDERS AC250A: 5 VDC, 50 mA from CPU; Power AC251A: 5 VDC, 1000 mA from transformer; AC252A: 9 VDC, 50 mA from ServSwitch; PS255A: 100 to 240 VAC, 50-60 Hz Size AC250A, AC251A, AC252A: 2.5"H x 2.1"W x 0.6"D (6.4 x 5.3 x 1.5 cm) Weight AC250A, AC251A, AC252A: 2 oz.
- Page 8 STATION EXTENDERS 2. Introduction 2.1 Description Your Station Extender package includes two Station Extender units and this manual. There may also be an autosensing power adapter (PS255A) and CPU or keyboard cables, depending on which model you have ordered. The Station Extenders connect to each other with a LINK cable (part number EHN250-xxxx).
- Page 9 STATION EXTENDERS on the keyboard side. AC252A (pictured below) is used with ServSwitches. There is a DB25 connector at each end of the Station Extender. One end is always a male connector and is marked LINK CABLE. The LINK cable is always a female-to-female cable and connects to this end.
- Page 10 (see Section 2.3). The LINK cable is always sold separately. Transformer power cords are also purchased separately—call Black Box. There are four applications for the Station Extender (see Chapter 3). Connect the Station Extenders and...
- Page 11 STATION EXTENDERS 2.2 Features •Extends PC keyboard, mouse, and monitor up to 200 feet (60.9 m) from computer. •Supports both PS/2 ® and RS-232 mice. •Direct connect to switches such as ServSwitch (part numbers SW721A-R2 through SW725A-R2) or ServMaster (part number SW990A or SW990AE).
- Page 12 STATION EXTENDERS The kits available are: AC253A Station Extender PC-K/V/SM (CPU to Keyboard-Monitor- RS-232 Mouse) AC254A Station Extender PC-SW-SM (CPU to ServSwitch for RS-232 Mouse) AC255A Station Extender SW-K/V/SM (ServSwitch to Keyboard-Monitor- RS-232 Mouse) AC256A Station Extender SW-SW (ServSwitch to ServSwitch) AC257A Station Extender PC-K/V/PS2M (CPU to Keyboard-Monitor-...
- Page 13 STATION EXTENDERS The cables available for the link side are: EHN250-0050 Station Extender Cable, 50 ft. EHN250-0100 Station Extender Cable, 100 ft. EHN250-0150 Station Extender Cable, 150 ft. EHN250-0200 Station Extender Cable, 200 ft. EHN250-0250 Station Extender Cable, 250 ft.
-
Page 14: Installation
STATION EXTENDERS 3. Installation 3.1 CPU to Keyboard-Monitor-Mouse This installation requires the parts shown in the table on the next page. The LINK cable is also required for installation and is purchased separately. Connect the parts together as shown in Figure 3-1. The units are most often sold as kits. - Page 15 STATION EXTENDERS ITEM PART NUMBER DESCRIPTION AC250A Station Extender used on CPU side. AC251A Station Extender used on keyboard side. EHN051 (PS/2 mouse) CPU adapter cable used to connect CPU to AC250A. EHN048 (RS-232 mouse) EHN054 (PS/2 mouse) Keyboard-monitor-mouse adapter cable used to connect keyboard, monitor, and EHN052 (RS-232 mouse) mouse to AC251A.
- Page 16 STATION EXTENDERS AC250A AC251A LINK Cable (EHN250-XXXX) CPU adapter Keyboard/monitor/ cable mouse adapter cable Power transformer 5 VDC Figure 3-1. Station Extender Connection— CPU to Keyboard-Monitor-Mouse.
- Page 17 STATION EXTENDERS 3.2 ServSwitch to Keyboard-Monitor-Mouse This installation requires the parts shown in the table below. The LINK cable is also required for installation and is purchased separately. Connect the parts together as shown in Figure 3-2. The units are most often sold as kits. Kit part number AC259A is for PS/2 mice.
- Page 18 STATION EXTENDERS ServSwitch AC252A LINK Cable AC251A (EHN250-XXXX) Keyboard/monitor/ mouse adapter cable Power transformer 5 VDC Figure 3-2. Station Extender Connection— ServSwitch to Keyboard-Monitor-Mouse.
- Page 19 STATION EXTENDERS 3.3 CPU to ServSwitch This installation requires the parts shown in the table below. The LINK cable is also required for installation and is purchased separately. Connect the parts together as shown in Figure 3-3. The units are most often sold as kits. Kit part number AC258A is for PS/2 mice.
- Page 20 STATION EXTENDERS ServSwitch AC252A AC250A LINK Cable (EHN250-XXXX) CPU adapter cable Figure 3-3. Station Extender Connection—CPU to ServSwitch.
- Page 21 STATION EXTENDERS 3.4 ServSwitch to ServSwitch This installation requires the parts shown in the table below. The LINK cable is also required for installation and is purchased separately. Connect the parts together as shown in Figure 3-4. The units are most often sold as kits. Kit part number AC256A contains 2 pieces of item 1.
- Page 22 STATION EXTENDERS ServSwitch ServSwitch AC252A AC252A LINK Cable (EHN250-XXXX) Figure 3-4. Station Extender Connection— ServSwitch to ServSwitch.
- Page 23 © Copyright 1998. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
