Planar Dome E4c User Manual

Display; display controller
Hide thumbs Also See for Dome E4c:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
Dome E4c Display
MX4 Display Controller
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dome E4c and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar Dome E4c

Summary of Contents for Planar Dome E4c

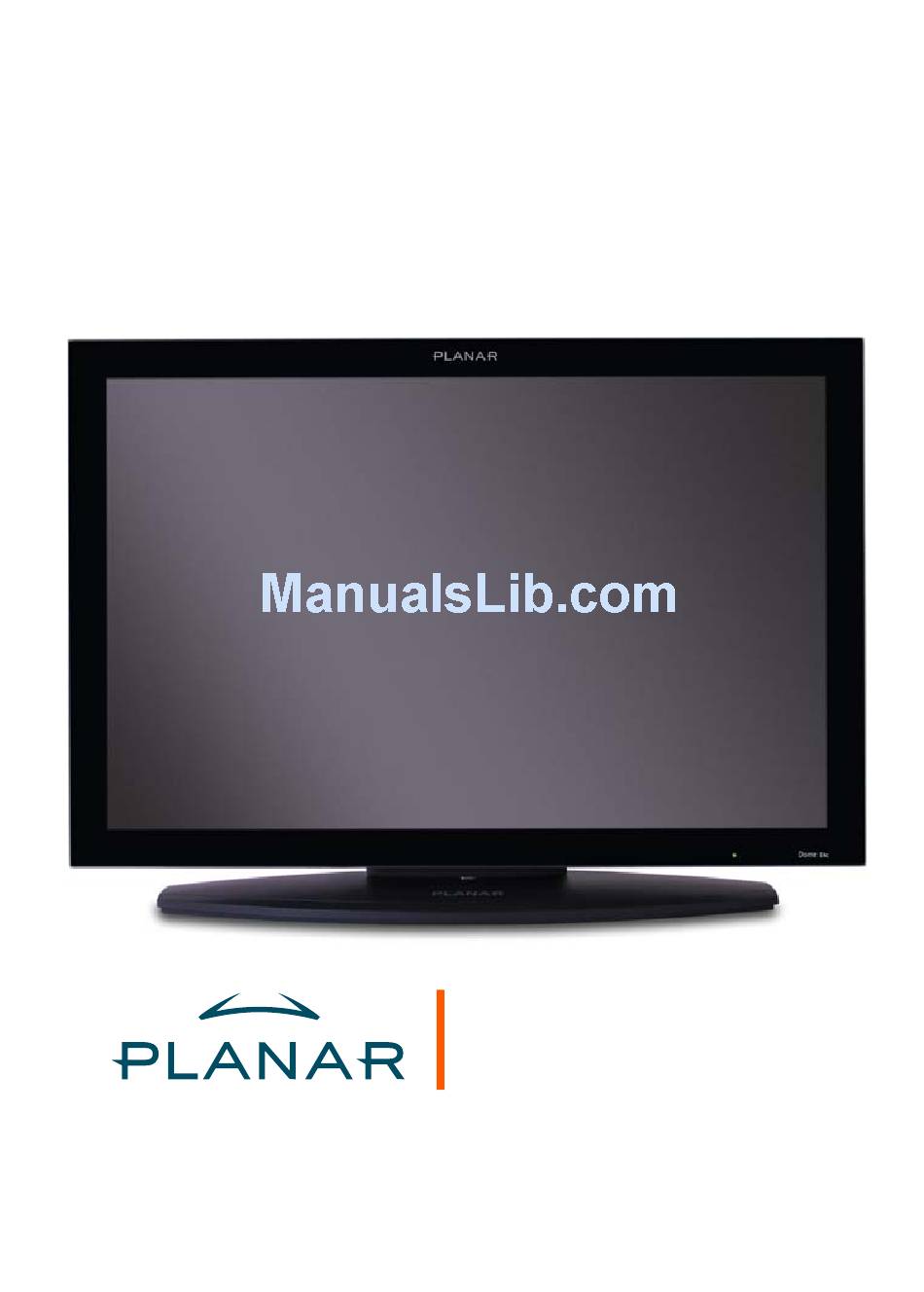

  • Page 1 Dome E4c Display MX4 Display Controller User’s Guide...
  • Page 2 Planar, Dome, Dome E4c, Dome CXtra, RightLight are either registered trademark or trademarks of Planar Systems, Inc. All other trademarks are the property of their respective owners.

  • Page 3: Product Information

    Product Information The design of the Dome E4c digital display takes into account every known measure to ensure your personal safety. Improper use of the display can result in electric shock, fire, or damage to the display. Read all instructions before setting up the display.

  • Page 4: Symbol Explanations

    Transport and storage -10° to 60° C. NOTE: After shipping or storage, allow display unit to reach room temperature before powering on. Ambient room temperature ranges from 20° to 25° C (68° to 77° F). iv | Dome E4c Display...

  • Page 5: Intended Use

    Intended use The Dome E4c display is an AMLCD unit designed for viewing medical X-ray images. This unit should not be used near patients and should be kept outside of 1.83 m perimeter and 2.29 m vertical. This device must not be used in primary image diagnosis in mammography.

  • Page 6: Shipping/Storing The Display

    • Use the grounded power supply and the video cable supplied by Planar. Replace the power supply or video cable if damaged. • Be sure the display is electrically grounded. Connect the third grounding pin on the US power cord to a grounded outlet.

  • Page 7: Unpacking And Handling Tips

    Unpacking and handling tips The Dome E4c display is a precision instrument that requires proper care to maintain adherence to specification. Unpack the display carefully, then follow instructions to avoid damage to the LCD panel. • Use both hands to grasp the display case when lifting it from the shipping carton, but avoid touching the screen.
  • Page 8 AMLCD panel mounted on desk stand Graphics display controller DC power adapter Power cords Display driver and Dome CXtra software Quick references Options available: VESA wall-mounting kit and Dome Surgery Review Cart. page 13 for more information.

  • Page 9: About The Display

    About the Display The Dome E4c display is a 30-inch AMLCD color panel designed for widescreen diagnostic imaging. The combination of high resolution and high contrast ratio allow the viewing of color and grayscale images simultaneously. Bezel-free framing of 4 megapixels of data is presented in a landscape resolution of 2560 x 1600 pixels.

  • Page 10: Display Status

    Display status The Dome E4c display has a light-emitting diode, or LED, on the front panel to indicate display status. • Green. The display is connected and running properly. • Amber. The video signal is not being received. LED on display front There is no power switch on the display unit.

  • Page 11: Display Power

    Display power The power input port is an 8-pin DIN connector that drives power to the display. See page 17 The dual-link DVI cable drives data to the display and is integrated into the display unit. When the DVI cable is disconnected from the graphics board, the display backlight turns off and the unit enters power-saving mode.

  • Page 12: Display Stand

    The stand includes an integrated USB hub and can be used for cable management. See 4 | Dome E4c Display page 18 for more information.
  • Page 13 Swivel the screen left or right to adjust the viewing angle. Push the screen backward or pull it forward to adjust the tilt. Slide the screen up or down to adjust the height. About the Display | 5...

  • Page 14: Display Installation

    Safety precautions In locations where 240V outlets are used, connect the Dome E4c display only to a center-tapped, 240V, single-phase supply (for Canada and the United States only).

  • Page 15: Installation Tip

    Installation tip Both DVI ports function on the graphics board shipped with your Dome E4c display, but only the bottom port allows you to enable dual-link functionality. Use the bottom port to support the display with the full, non-scaled 2560 x 1600 resolution.
  • Page 16 Remove the computer cover and the PCI bracket. Connect the power adapter cord to the display. 8 | Dome E4c Display Install the graphics board and reattach the cover. Connect the DVI cable to the bottom port to enabling dual-link functionality, then plug the power cord into a grounded outlet.
  • Page 17 To install the display driver Before you install the driver, remove any previously installed display driver from your system. 1 Start your computer system. Click Cancel on the Found New Hardware Wizard. Click No to respond to restart prompt. 2 Insert the driver installation CD and click Next. 3 Auto-detection reports the driver version and graphics board(s).
  • Page 18 To set up multi-display mode 1 Click the PowerDesk icon on the taskbar. 2 Select Multi-Display Setup on the PowerDesk menu. 3 Select the device and multi-display setup you want to use. 4 Click Apply or OK. 10 | Dome E4c Display...
  • Page 19 To change video setting per display 1 Click the PowerDesk icon on the taskbar. 2 On the PowerDesk menu, select the graphics card representing the display you want to change video settings on, then select Grayscale Setup category. NOTE: Grayscale mode is the installation default. PowerDesk menu 3 Select one of the options.
  • Page 20 To install Dome CXtra Bundled with the display system, the Dome CXtra software enhances the functionality of the Dome E4c display with a range of value-added services, such as DICOM calibration, error reporting, and backlight saver. Network management of Dome displays running the Dome CXtra software require the Enterprise Management Service for Dome CXtra.

  • Page 21: Options Available

    Options available The following options are available for the Dome E4c display. • VESA (100 mm x 200 mm) wall-mounting kit • Dome Surgery Review Cart WARNING: Use only the mounting devices supplied by Planar to attach the display to the wall unit or to the cart. Failure to use the specified device or to follow the mounting instructions exactly could be hazardous.

  • Page 22: Troubleshooting

    Display does not light up. No image appears on the screen No dual-link functionality. Power LED is amber. 14 | Dome E4c Display Possible Cause Power is not on. Power cord is not securely connected. Video cable is not securely connected.

  • Page 23: Specification

    Specification In locations where 240V outlets are used, connect the Dome E4c display only to a center- tapped, 240V, single-phase supply (only for Canada and the United States). Category Characteristic Item Screen Screen size diagonal Resolution Pixel pitch Pixel arrangement...

  • Page 24: Power Supply

    Power supply CAUTION: Use only the power adapter supplied with the Dome E4c display unit (JEC Korea Corporation, Type JMW1150KA2423F51). Category Characteristic Item Power input Voltage selection requirements Voltage Current Frequency Power output Voltage requirements Current Physical Size Weight Reliability...

  • Page 25: Connector Ports

    Connector ports The power input port is an 8-pin DIN connector. The power input is 24V ±5% (115 W typical). Display screen face down Pin assignment of DIN connector VCC 8 VCC 7 VCC 6 VCC 5 4 GND Input power port 1 GND 8-pin DIN connector 2 GND...

  • Page 26: Desktop Stand

    USB cable. Even if the display is in power-saving mode, the USB devices function when connected to the USB ports on the stand. Display desktop stand 18 | Dome E4c Display Lock lever Stand cable cover PUSH button...

  • Page 27: Regulatory Compliance

    (EMC) laws. Planar Systems, Inc. has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. We offer state-of-the-art color displays that are compliant...
  • Page 28 Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.—Olarinluoma 9, P.
  • Page 29 Declaration of Conformity document, contact Planar Systems. The Dome E4c digital flat-panel display meets the essential health and safety requirements, is in conformity with, and the CE marking has been applied according to the relevant EU Directives listed below, using the relevant section of the following EU standards and other normative documents;...

  • Page 30: Display Unit

    U.S. FCC Compliance Statement Display Unit This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 Australian Australian Communications Authority regulating product EMC compliance. China China Compulsory Certification regulating safety and EMC. GB4943-2001 GB9254-1998 (Class A) CB17625.1-2003 Japan Voluntary Control Council for Interference by information technology equipment sold in Japan. Korea Ministry of Information and Communications. Taiwan Bureau of Standards, Metrology and Inspection.

  • Page 32: Standard Warranty

    The typical turnaround time is 10 business days. * If, within 2 years of initial purchase, the maximum output of the Dome E4c display is determined by Planar Systems to be less than 175 cd/m repair or replace the display at its sole discretion.

  • Page 33: Limitation Of Implied Warranties

    MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Exclusion of Damages THE LIABILITY OF PLANAR IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. PLANAR SHALL NOT BE LIABLE FOR THE FOLLOWING: 1 DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT,...
  • Page 34 America Sales Planar Systems, Inc. 1195 NW Compton Drive Beaverton, OR 97006-1992 USA (503) 748-1100 phone (503) 748-1493 fax Medical Sales Planar Systems, Inc. 400 Fifth Avenue Waltham, MA 02451-8738 USA (781) 895-1155 phone (781) 895-1133 fax medicalsales@planar.com medicalsupport@planar.com www.planar.com Europe &...
