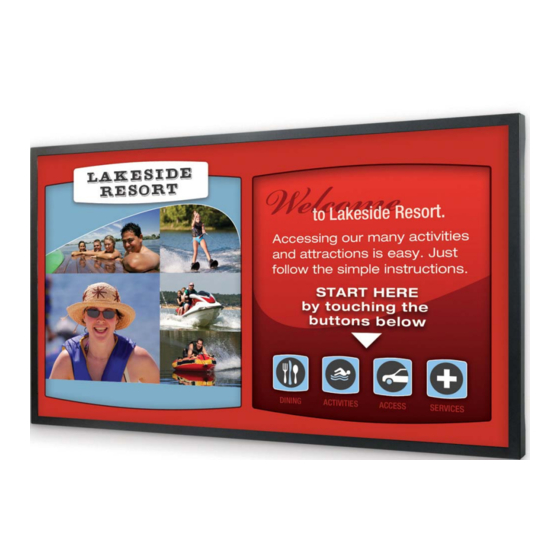

EP-Series Ultra HD LCD
Displays RS232 User
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar EP Series

Summary of Contents for Planar EP Series

  • Page 1 EP-Series Ultra HD LCD Displays RS232 User Guide...

  • Page 2: Trademark Credits

    Planar employees. When you purchase a Planar product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support...
  • Page 3 RS232 Codes RS232 control is not necessary for operation, but is a convenient way to control displays from a computer at a distance. Most things you can do with the remote, you can do with RS232 commands. Plus, you can send inquiries to the displays and find out the current settings and values.
  • Page 4 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Power Power Off (soft power) 50 4F 57 ▲ Control and Control Input Source On (soft power) ▲ IPC Control 49 50 43 Input Source 4D 49 4E DisplayPort HDMI1 HDMI2...
  • Page 5 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Display Local Local Dimming Off 4C 44 4D Adjustment Dimming Local Dimming On MEMC MEMC: Off 4D 45 4D MEMC: Low MEMC: Medium MEMC: High Scheme User 53 43 4D Sport...
  • Page 6 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Display Gamma Off (Gamma) 47 41 43 Adjustment 1.85 (Gamma) 1.9 (Gamma) 1.95 (Gamma) 2.0 (Gamma) 2.05 (Gamma) 2.15 (Gamma) 2.15 (Gamma) 2.2 (Gamma) 2.25 (Gamma) 2.3 (Gamma) 2.35 (Gamma) 2.4 (Gamma)
  • Page 7 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Display 0~100 Current value Phase 50 48 41 Adjustment Adjustment 0~100 Current value Clock 43 4C 4F 0~100 Current value Horizontal Position 48 4F 52 0~100 Current value Vertical Position 56 45 52 Auto Adjust...
  • Page 8 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Enable 0~127 0~127 In User Mode: 41 45 4E Set bit0 to 1: Sunday Enable Set bit1 to 1: Monday Enable Set bit2 to 1: Tuesday Enable Set bit3 to 1: Wednesday Enable Set bit4 to 1:...
  • Page 9 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Sunday 0~23 0~23 Sunday On Hour 49 4E 48 0~59 0~59 Sunday On Minute 53 4E 4D 0~23 0~23 Sunday Off Hour 53 46 48 0~59 0~59 Sunday Off Minute 53 46 4D...
  • Page 10 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Saturday 0~23 0~23 Saturday On Hour 54 4E 48 0~59 0~59 Saturday On Minute 54 4E 4D 0~23 0~23 Saturday Off Hour 54 46 48 0~59 0~59 Saturday Off Minute 54 46 4D...
  • Page 11 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Landscape 4F 53 52 Rotation Portrait English 4F 53 4C Language Chinese OSD Timeout OSO 5~60 Current value OSD Timeout (5, 10, 20, 4F 43 4F 30, 60 sec) Splash 53 50 53...
  • Page 12 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Multi-Source Multi-Source (refer to (refer to MIN) Select the input source 50 49 4E selection MIN) of sub window 1 (refer to MIN) (refer to (refer to MIN) Select the input source 50 49 4F MIN) of sub window 2 (refer...
  • Page 13 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Other Control Baud Rate 115200 42 52 41 Adjustment 38400 19200 9600 Power Wake on VGA 57 46 53 Saving Config Wake on All Always On Auto Scan 41 54 53 Main...
  • Page 14 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Other Control OPS Power Disable OPS power 4F 50 43 Down Check down check Enable OPS power down check HDMI RGB Auto Detect 48 43 52 Color Range Full Range Limited Range...
  • Page 15 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Other Control Remote P-SOURCE Key 52 43 55 Control PIP Key P-POSITION Key SWAP Key SCALING Key FREEZE Key MUTE Key BRIGHT Key CONTRAST Key AUTO Key VOLUME+ Key VOLUME- Key Preset1 Recall...
  • Page 16 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Other Control Remote 6 bytes Read Firmware Version 47 56 45 Control Current value Read RS232 table 52 54 56 Version Ethernet Network 4E 57 45 Setup Enable Dynamic IP...
  • Page 17 RS232 Codes Value Main Item Control Item Type Reply (DEC) Content Remark (DEC) (HEX) Ethernet Static IP 0~255 0~255 Gateway 4 47 57 34 Setup Settings 0~255 0~255 DNS Address 1 46 44 31 0~255 0~255 DNS Address 2 46 44 32 0~255 0~255 DNS Address 3...

  • Page 18: Power Control And Input Source

    Example Example Power Control and Input Source Turn monitor power off [CMD: POW] [Transmit] : PC → 07 01 02 50 4F 57 00 08 → Monitor [Return] : Monitor → 07 01 00 50 4F 57 00 08 → PC Turn monitor power on [CMD: POW] [Transmit] : PC →...

  • Page 19: Scaling Adjustment

    Scaling Adjustment Scaling Adjustment Set monitor to Pillar box [CMD: ASP] [Transmit] : PC → 07 01 02 41 53 50 02 08 → Monitor [Return] : Monitor → 07 01 00 41 53 50 02 08 → PC Other Control Adjust up to monitor [CMD: RCU] [Transmit] : PC →...

  • Page 20: Accessing Planar's Technical Support Website

    Website Go to www.planar.com/support to locate the following support documents and resources: • User Guide • RS232 User Manual • Touchscreen drivers • Standard warranties • Planar support hotline number and email EP-Series Ultra HD LCD Displays RS232 User Guide...
