Planar Dome E4c Quick Reference Manual

Windows xp windows 2000
Hide thumbs Also See for Dome E4c:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Dome E4c Display
Quick Reference
Windows XP
Windows 2000

Advertisement

Table of Contents
loading

Related Manuals for Planar Dome E4c

Summary of Contents for Planar Dome E4c

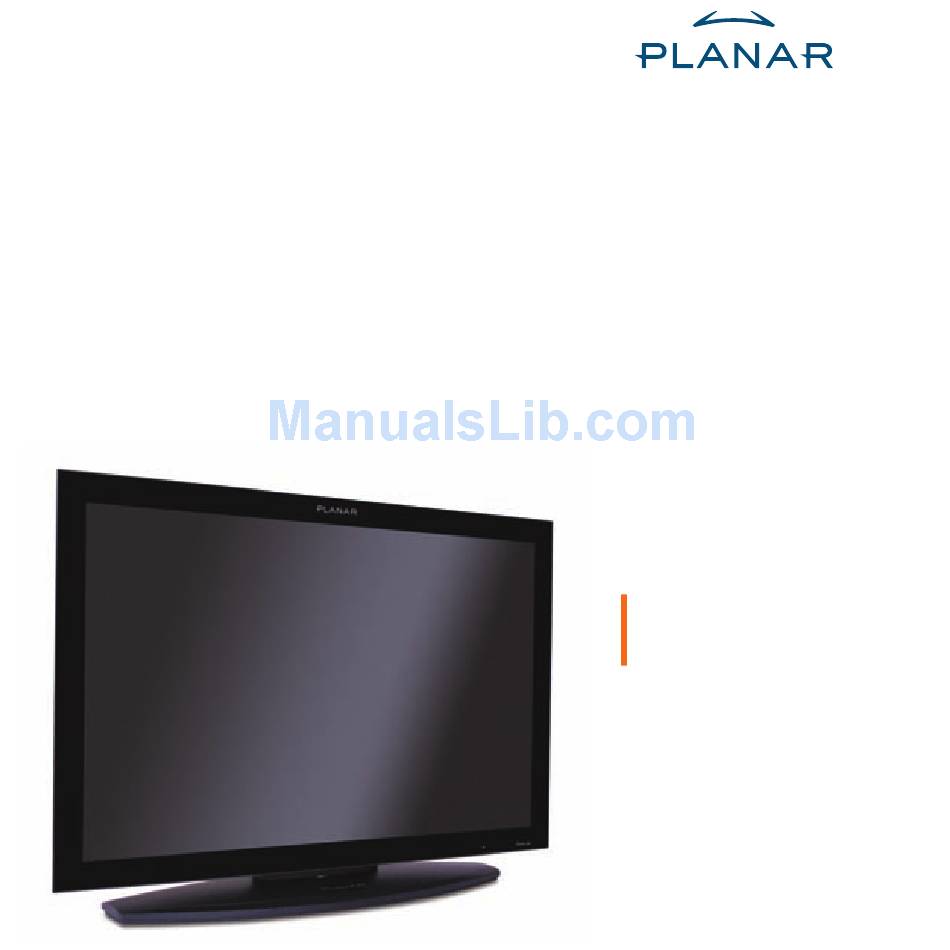

  • Page 1 Dome E4c Display Quick Reference Windows XP Windows 2000...
  • Page 2 Read all instructions before setting up the Dome E4c display. Improper use of the display can result in electric shock, fi re, or damage to display components. Go to www.planar.com/support for more product documentation. Display Features • AMLCD color panel designed for widescreen diagnostic imaging.

  • Page 3: Unpacking The Display

    Unpacking the Display Check the contents of your Dome E4c display package for all the items shown here. Save the original packaging materials for storage and shipping. IMPORTANT: Read “Handling the Display” on page 10 before you set up the display.

  • Page 4: Display Components

    Display Components The LED on the display front indicates display status. Green, the display is connected and running properly. Amber, the video signal is not being received. The integrated video cable and input power port are located on the back. NOTE: You can connect the video cable to either port of the graphics card.
  • Page 5 (bottom view without stand) Power Integrated port DVI cable...

  • Page 6: Installing The Display Controller

    Installing the Display Controller Remove any existing graphics card and its driver from your computer system before you install the AX5 controller and driver. Also disable any onboard graphics capability on the motherboard. See safety precautions on page 2. To install the controller 1 Turn off your computer and all peripherals.

  • Page 7: Connecting The Display

    1 Connect the DVI cable to either port of the installed controller board. NOTE: The AX5 board provides dual-head functionality: You can run two Dome E4c displays from one AX5 board. Both DVI ports provide dual- link functionality and support each Dome E4c display with the full, non-scaled 2560 x 1600 resolution.

  • Page 8: Installing The Display Driver

    4 Click Yes to the license agreement. The installation starts. 5 Follow the onscreen instructions to complete the installation. Planar recommends that you select the Express installation option. 6 When the Setup complete message appears, select Yes, I want to restart my computer now and click Finish.

  • Page 9: Adjusting The Display Properties

    Adjusting the Display Properties Use the Display Properties dialog to make changes to the video settings. To confi gure the display 1 Right-click the desktop and select Properties > Settings. 2 Use the native resolution of the display. 3 Click OK until you return to the desktop. To set the brightness You must have the Dome CXtra software installed to change the display brightness.

  • Page 10: Handling The Display

    Handling the Display • Set up your display on a stable, level surface away from any direct light or heat source, but near a grounded AC outlet. • Choose a well-ventilated location with an adequate amount of space. Do not block the vents on the back of the display.

  • Page 11: Cleaning The Display

    • Two-year backlight warranty* • Typical repair turnaround time of 10 business days * If, within 2 years of initial purchase, the maximum output of the Dome E4c display is determined by Planar Systems to be less than 175 cd/m •...
  • Page 12 Visit www.planar.com E-mail: medicalsupport@planar.com Call (866) PLANAR1 © 2006 Planar Systems, Inc. Planar, Dome, Dome CXtra, and RightLight are either registered trademarks or trademarks of Planar Systems, Inc. Technical information in this document is subject to change without notice. 020-0437-03A...
