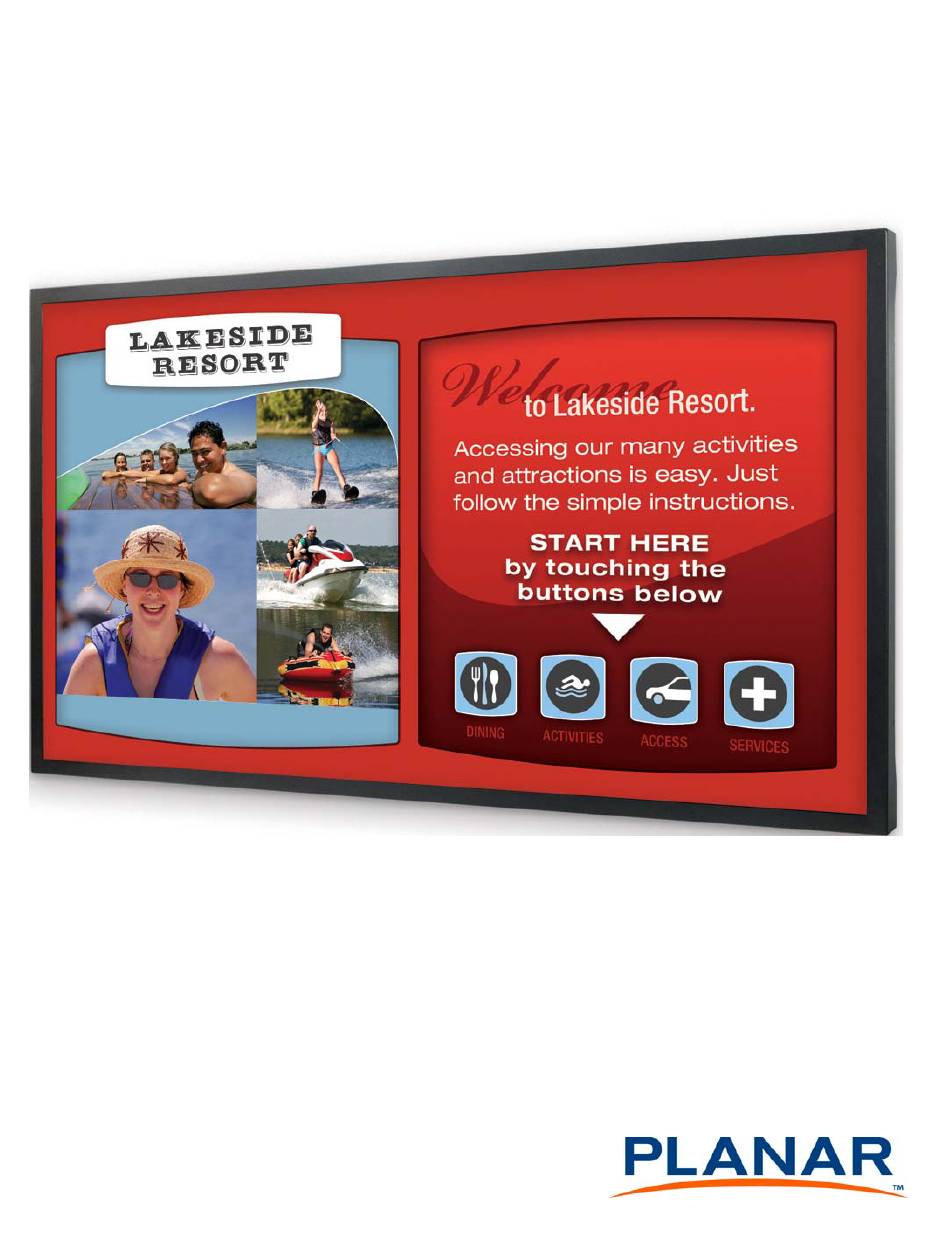

- Page 1 EP Series Touch User Guide...
- Page 2 Planar employees. When you purchase a Planar product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planarcontrolroom.com/support...
-
Page 3: Table Of Contents
Table of Contents EP Series Touch User Guide ............... . i Table of Contents . - Page 4 Table of Contents EP Series Touch User Guide...
-
Page 5: Table Of Contents
Introduction This document details setup and calibration information for Planar’s EP series optical touch screen. Designed for large-format display applications, the EP series supports basic mouse use, as well as Windows 7 multi-touch functions, such as zoom, rotate, tap and press-and-tap. -
Page 6: Connecting The Touch Screen
Connecting the Touch Screen Connect the USB cable from the USB port on the display to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. EP Series Touch User Guide... -
Page 7: Using The Touch Screen
Tap the screen once. Double-click Tap the screen twice. Right-click Press on the target. Hold and wait for a blue ring to appear. Release your finger. Drag or select Drag one finger left or right. EP Series Touch User Guide... -
Page 8: Multi-Touch Functions
Function Action Right-click Press on the target. Tap the screen with another finger. Release the second finger. Scrolling Drag one or two fingers up or down. Zoom Move two fingers apart or toward each other. EP Series Touch User Guide... - Page 9 • Move two fingers in opposing specific directions. applications • Use one finger to pivot around the other. Supported by Tap two fingers simultaneously. specific The target should be the applications midpoint between the fingers. EP Series Touch User Guide...
-
Page 10: Dimensions
Front Dimensions Front The dimensions are in millimeters unless otherwise noted. 42.2” 1072.3mm 40.2” 1021.5mm 24.7” 627.1mm 46.0” 1168.4mm 22.7” 576.0mm EP Series Touch User Guide... -
Page 11: Rear
Rear Rear The dimensions are in millimeters unless otherwise noted. Optional HD-SDI EP Series Touch User Guide... -
Page 12: Side
Side The dimensions are in millimeters unless otherwise noted. 2.6” 66.0mm 2.4” 62.0mm 1.9” 47.7mm 1.7” 43.7mm 0.9” 21.9mm Side Side Optional Touch Landscape Touch Portrait HD-SDI 0.9” 21.9mm Optional HD-SDI 1.5” 38.7mm 1.9” 47.7mm EP Series Touch User Guide... -
Page 13: Ambient Light Recommendations
Due to the optical nature of touch screens, installations close to windows and/or glass doors are not recommended. Doing so may reduce touch reliability due to direct and/or indirect sunlight interference. Note: Avoid installation close to windows. Direct and indirect sunlight may affect touch performance. EP Series Touch User Guide... -
Page 14: Calibrating The Touch Screen Module
Install “Microsoft .NET Framework 4 only if the PC is running the XP operating system. Run the Calibration Utility by selecting Calibration Utility via the Windows Task bar (Start > All Programs > NextWindow > NextWindow folder). EP Series Touch User Guide... - Page 15 Touch each remaining cross for two seconds as it appears. Once the Calibration Utility has captured the positions of the pointers on the screen, it will close down and the display is ready to operate in touch screen mode. EP Series Touch User Guide...
-
Page 16: Specifications
Width by height Bezel width 1.0” (2.5cm) Screen brightness (typical) 600 cd/m Response time (typical) 10ms Frame rate 120 Hz Contrast ratio (full field) 3000:1 Full viewing angle ° Color gamut 72% NTSC Backlight type Edge-Lit LED EP Series Touch User Guide... - Page 17 Speakers 10W x 2 built-in Auto brightness control Ambient light sensor Mounting 400 x 400 mm VESA; 8 holes Backlight life 50,000 hours (1/2 brightness) Optional accessories Flat wall mount, tilting wall mount, table stand EP Series Touch User Guide...
- Page 18 Side EP Series Touch User Guide...
