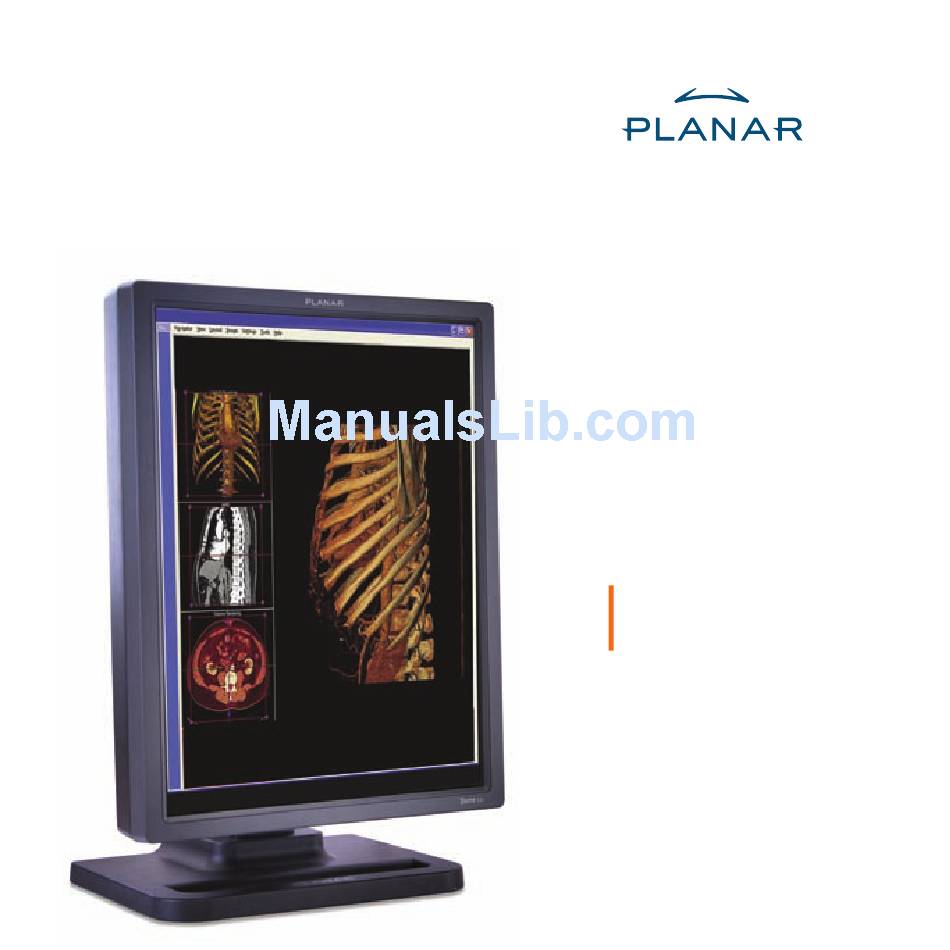

- Page 1 Dome E2c Display Quick Reference Windows XP Windows 2000...
- Page 2 Read all instructions before setting up the Dome E2c display. Improper use of the display can result in electric shock, fi re, or damage to display components. For more product information, go to www.planar.com/support. System Requirements • Intel Pentium 4/Xeon;...
-
Page 3: Unpacking The Display
Unpacking the Display Check the contents of your Dome E2c display package for all the items shown here. Save the original packaging materials for storage and shipping. Video card DVI cable Dome E2c display Power adapter Power cord Software CDs... -
Page 4: Display Components
No other user-accessible controls are available. You can change the brightness of the Dome E2c display in the Display Properties dialog of the Windows operating system. However, when DICOM auto-calibration is running, you must control display bright- ness via the Dome CXtra software. - Page 5 Back view Legend Reset. Restores default display setting. LED indicator. Shows display status. DIN 8-pin port. Drives power to the display. S-Video, separate video analog input port. Requires a 4-pin mini-DIN connector. C-Video, composite video analog input port. Requires an RCA or phono connector.
- Page 6 Installing the Display Controller Remove any existing graphics card and its driver from your computer system before you install the controller and driver. Also disable any onboard graphics capability on the motherboard. See safety precautions on page 2. To install the controller 1 Turn off your computer and all peripherals.
-
Page 7: Connecting The Display
Connecting the Display Use only the cables and power cord supplied with your display. To connect the display 1 Plug one end of the DVI signal cable to the DVI port on the display. Tighten the thumbscrews to secure the connection. 2 Plug the power cord into the power connector on the connector plate. -
Page 8: Installing The Display Driver
To install the display driver 1 Start the system. Click Cancel on the Found New Hardware Wizard dialog box. 2 Insert the Planar Installation CD and run the SETUP.EXE utility. 3 Click Next on the Welcome dialog. 4 Click Yes to the license agreement. The installation starts. - Page 9 Adjusting the Display Properties Use the Display Properties dialog to make changes to the video settings or to set up dual-display confi guration. To set the display orientation 1 Right-click the desktop and select Properties > Settings. 2 Select the monitor that you want to change. Then click Advanced. 3 Click the Monitor tab.
-
Page 10: Handling The Display
Never remove the back cover or disassemble the display. There are no user-serviceable parts inside. • In locations where 240V outlets are used, connect the Dome E2c display only to a center-tapped, 240V, single-phase supply. • When troubleshooting, check that... -
Page 11: Cleaning The Lcd Screen
Cleaning the LCD Screen Do not spray or use acetone, toluene, or harsh solvents on the display case or screen. Chemical cleansers may cause damage to the display. Use a dry, clean, lint-free cotton cloth to remove surface dust from the display screen. Do not use chemically treated dust cloths. - Page 12 For more information, download the Dome E2c display manual from the Planar web site. © 2006 Planar Systems, Inc. Planar, Dome, Dome E2c, and Dome CXtra are either registered trademarks or trademarks of Planar Systems, Inc. Technical information in this document is subject to change without notice.
