Planar C3 User Manual

The portability of the Dome Surgery Review Cart allows you to implement a DICOM-compliant, PACS referral
viewing station—on demand—in any area of a healthcare facility. When it is fully integrated, the cart consists of
the computer unit that you supply and these components:
• Review cart for attaching computer and display
• One or two displays for side-by-side image review
• Display controller and driver
The displays available in dual-unit cart configurations include the Dome C3i, Dome E2, Dome E2c, Dome E3,
Dome E3c, Dome P2, and Dome Q2 displays. The Dome E4c display, designed for widescreen diagnostic imaging,
is also available in a single-unit cart configuration.
To facilitate integration at your location, Planar has partially assembled the review cart by prerouting power and
video cables. You need only to install the display controller into your computer, attach the computer and the
Dome displays to the cart, and connect the power and video cables. Check the display documentation for safety
guidelines on handling the components.

System Requirements

Check that the computer unit you are mounting to the
cart has the following bus interface per configuration:
Dome RP2 or Dome RQ2 using the AX1 or EX2 board
Dome RE2c using the AX1 board
• AX1 board PCIe bus with full-height 16x slot
–
• EX2 board AGP 8X/4X bus with full-height
–
AGP slot: H 4.2"
Dome RE3, Dome RE3c, or Dome RE4c using
the AX3 board
PCIe bus with full-height 16x slot
Dome RC3, Dome RE2, Dome RE3, or
Dome RE3c using the DX2 board
Full height half length PCI slot: H 4.2" x L 6.95"
(PCI64/66 slot recommended)
Your computer unit must also meet the following
requirements:
• Size (W x H x D) – No larger than 7.5" x 18" x 20"
(190 mm x 406 mm x 508 mm)
• Weight – No heavier than 35 lb (16 kg)
• Intel Pentium 4/Xeon clocked at 2.0 GHz (or faster),
AMD Athlon/Opteron with 2000+ rating (or faster),
or equivalent CPU
• CD-ROM drive
• Microsoft Windows XP or Windows 2000 with
Service Pack 4 or higher
• 256 MB or more system memory
• 350 Watt (or greater) power supply
Dome Surgery Review Cart
• Dome CXtra software for DICOM compliance
• Cleanable keyboard and mouse
• Power adapters (display dependent)

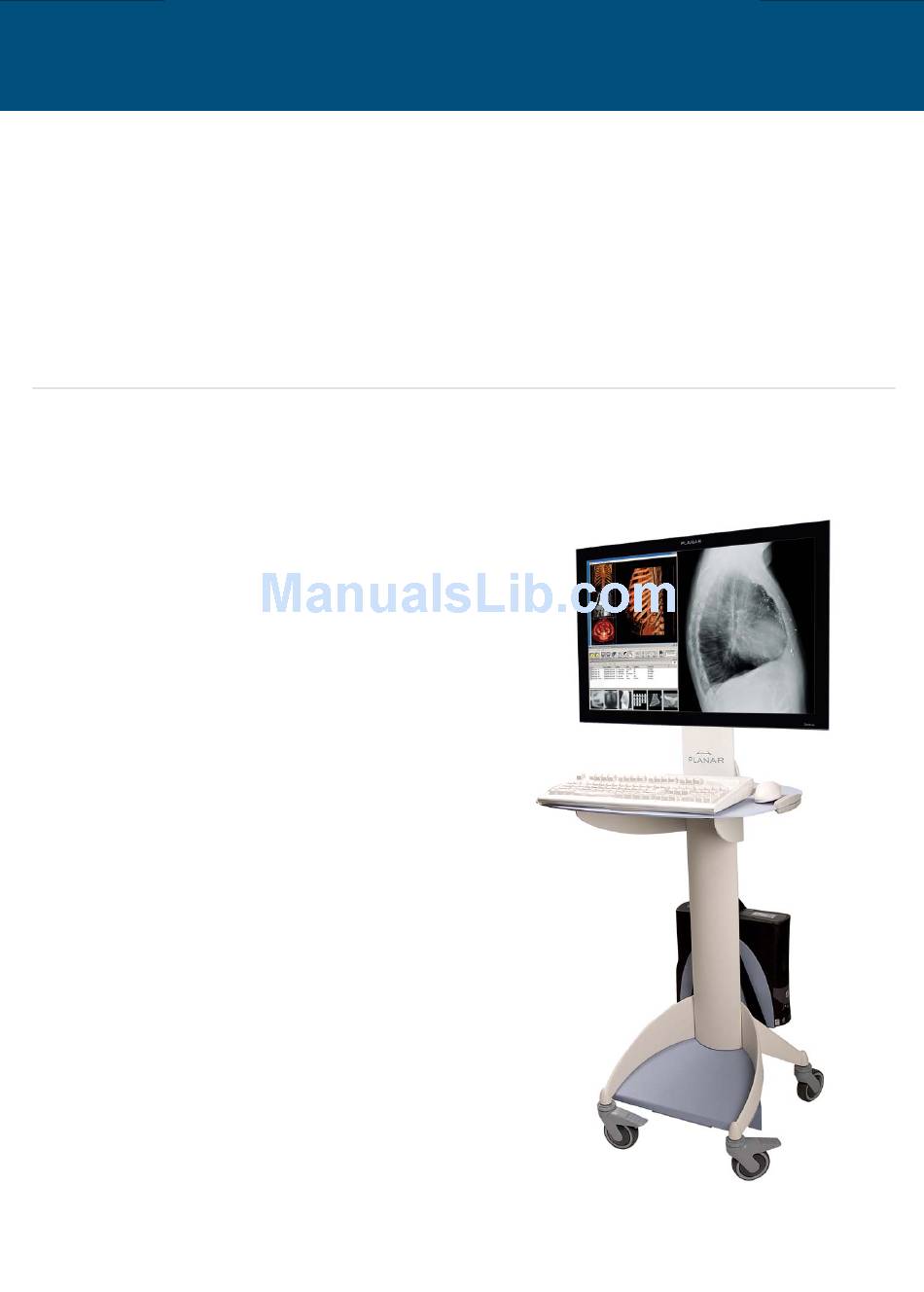

The Dome E4c display mounted to the cart. Other display
configurations may have variations for power supply
connection and peripherals.
