In-bottom/Out-back Cooling Kit for FA09-FA10
Installation Guide
2. Seat the clip-on nuts into the 6 holes around the opening.
3.
Affix 2 back vent gaskets to the flange of the back vent, placing 1 gasket on the inner side and 1 gasket on the outer side of
the flange.
4.
Slide the back vent into the opening in the back plate.
5. Fasten the M6x12 screws around the inner edge of the back vent.
The FA09 kit requires 6 screws, and the FA10 kit requires 8 screws.
6. Secure the M5x18 screws in the flange of the back vent, attaching the vent to the back plate.
The FA09 kit requires 6 screws, and the FA10 kit requires 8 screws.
1
2
3
4
5
6

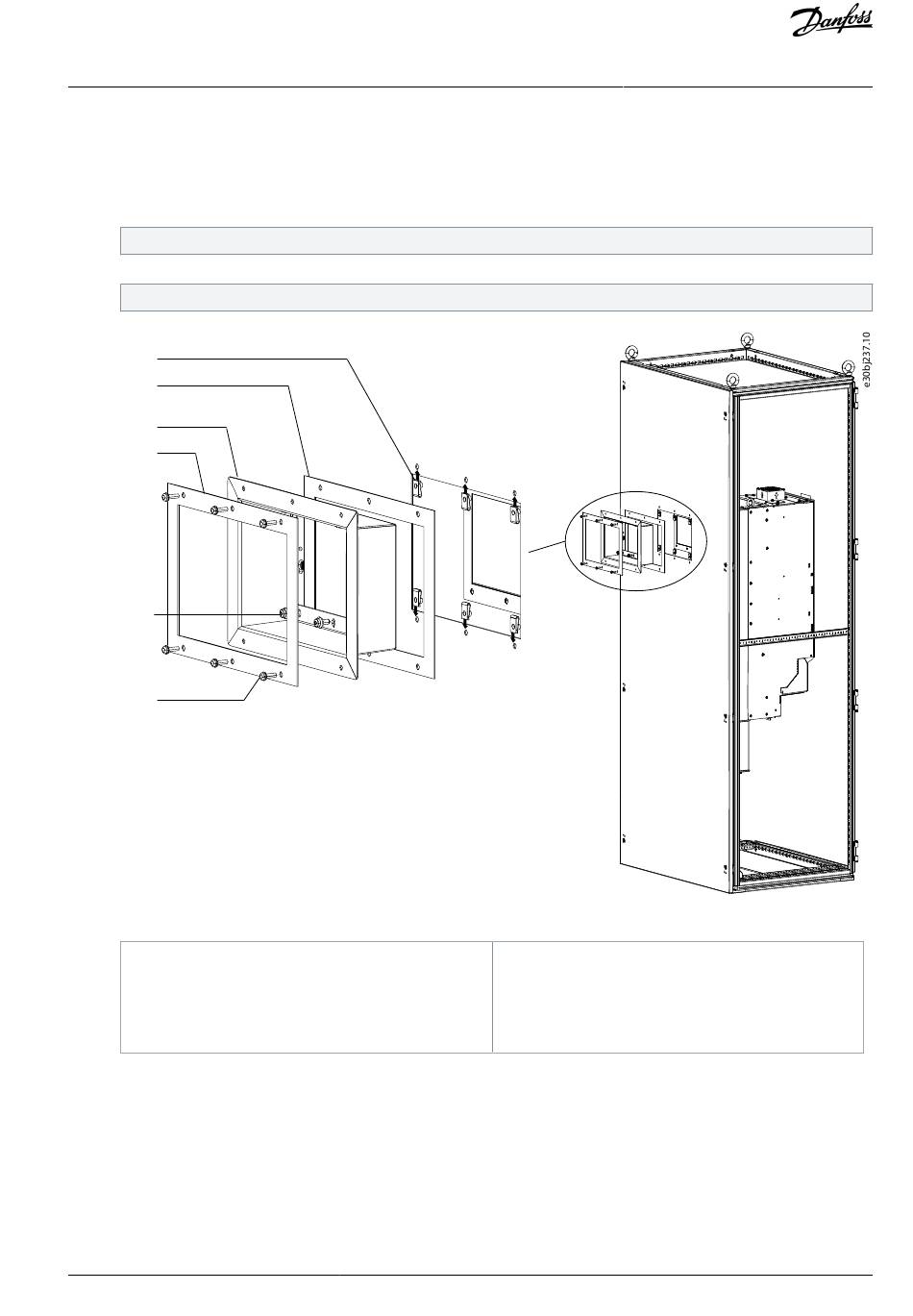

Illustration 14: Installation of Back Vent
1 Clip-on nut
2 Back vent gasket (inner)
3 Back vent
Danfoss A/S © 2022.03
4 Back vent gasket (outer)
5 M6x12 screw
6 M5x18 screw
