In-bottom/Out-back Cooling Kit for FA09-FA10
Installation Guide
5. Extend the duct upward and fasten with 6 M5 hex nuts, securing it to the duct support plate.
1
2
3
4

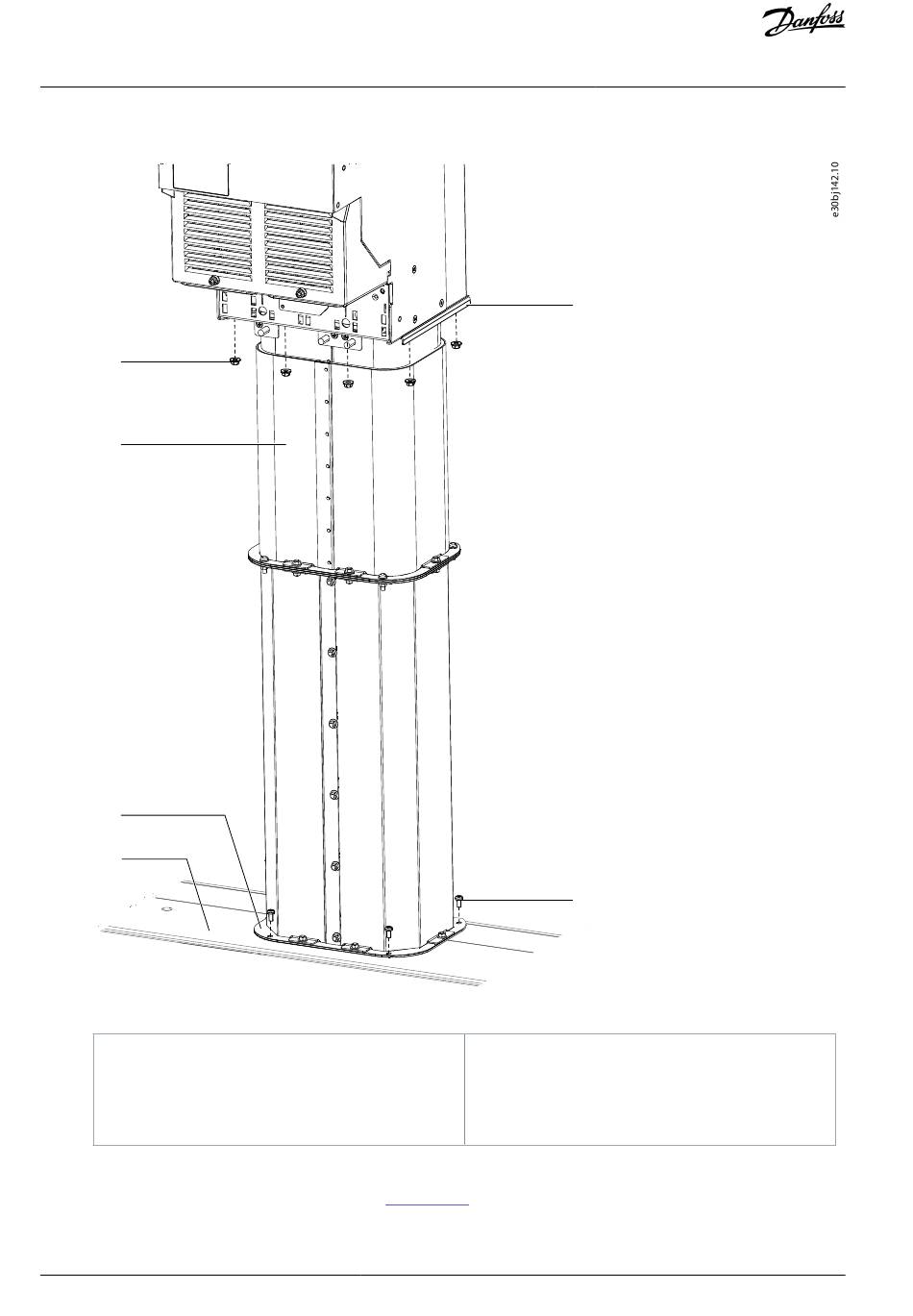

Illustration 13: Installation of the Bottom Duct
1 M5 hex nut
2 Bottom telescopic duct
3 M5x16 screw
2.11 Installing the Back Vent
To install the back vent, use the following steps. Refer to
Procedure
1. Slide 6 clip-on nuts over the edge of the vent opening in the backplate of the cabinet.
16 | Danfoss A/S © 2022.03
4 Base plate
5 Duct support plate
6 Lower flange of duct
Illustration 14.
5
6
