Danfoss iC7 Series Installation Manual page 15

In-bottom/Out-back Cooling Kit for FA09-FA10
Installation Guide
4. With the rubber seals in place, carefully slide the inner sleeve of the duct into the outer sleeve
1
2
3

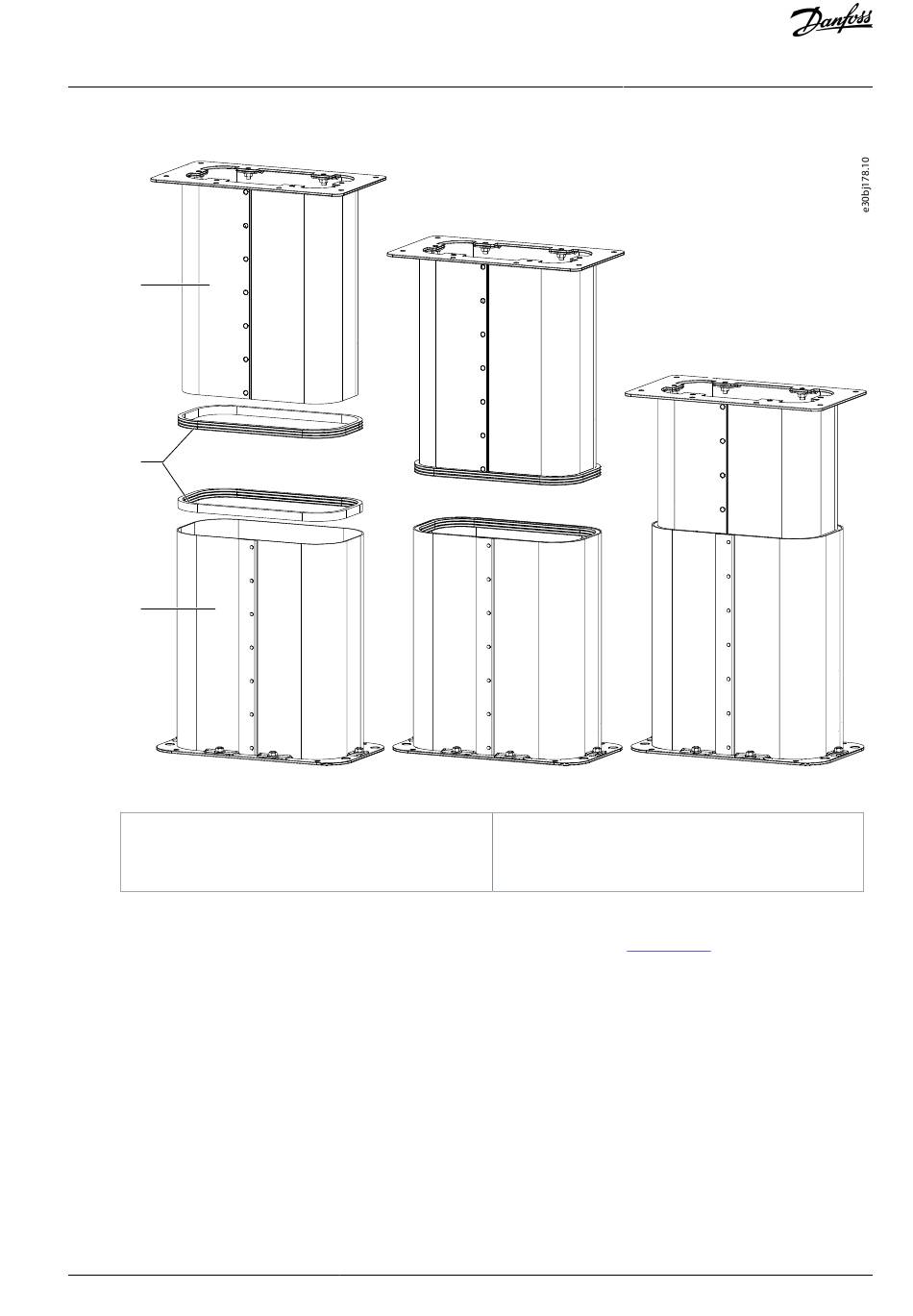

Illustration 12: Assembly of Telescopic Duct
1 Inner sleeve of duct
2 Ribbed EPDM rubber seal
2.10 Installing the Bottom Duct
To attach the bottom duct to the base plate of the cabinet, use the following steps. Refer to
Procedure
1.
Install the base plate in the Rittal cabinet using the existing fasteners.
2. Collapse the bottom duct and position it over the vent cutout in the base plate.
3.
Place the holes in the lower flange of the duct over the holes surrounding the opening in the plate.
4. Fasten 4 M5x10 screws (T25) through the holes in the lower flange of the duct, securing it to the base plate.
Danfoss A/S © 2022.03
3 Outer sleeve of duct
Illustration
AN371942757356en-000101 / 136R0252 | 15
Installation
13.
