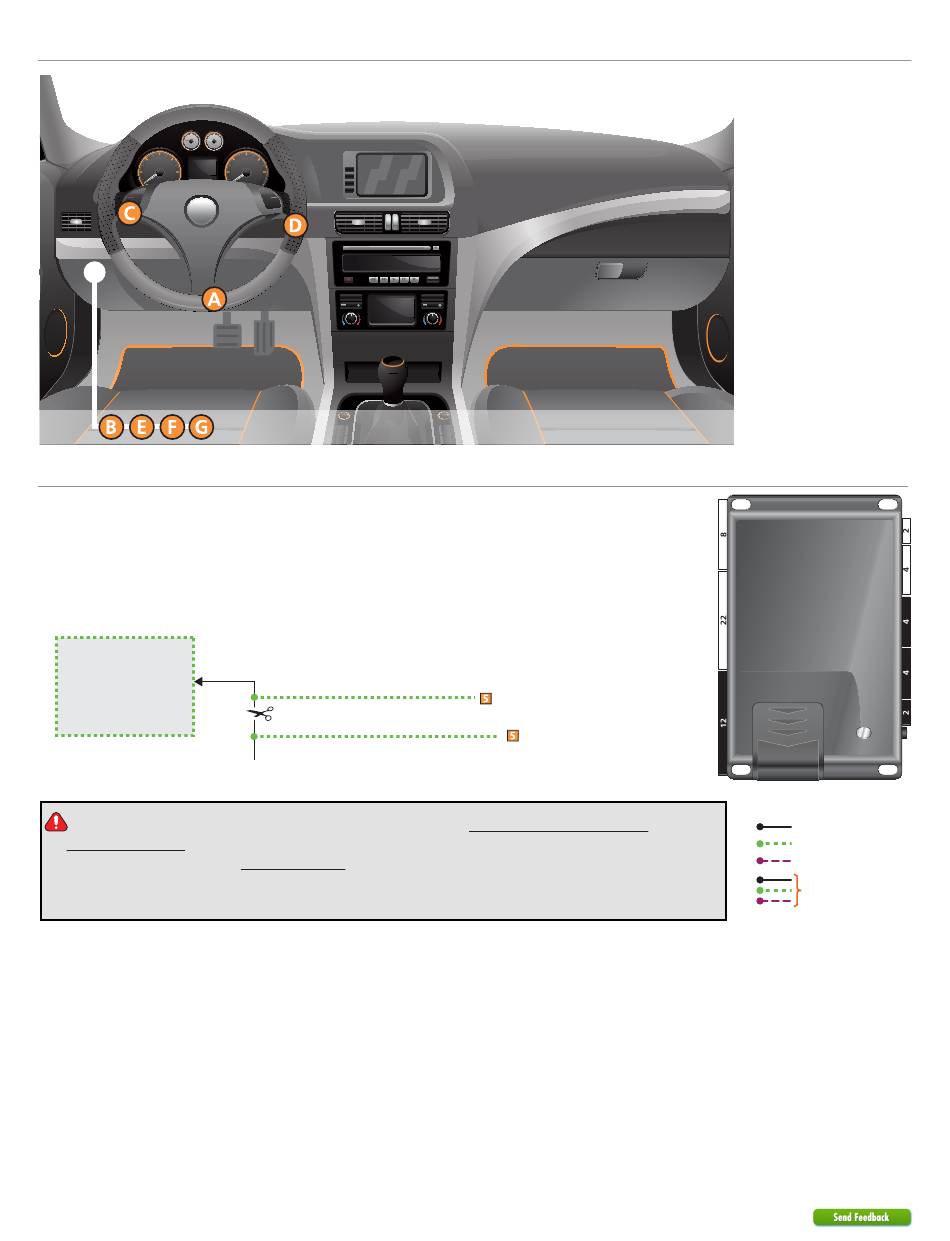

Locating components in the vehicle

Optional starter disable connection
Refer to the
Vehicle connections
section for wire
and connector
details.
Important: When flashing your module for Security Only, Relay 3 must be manually
configured to the Starter Kill function. When flashing your module for Remote Start & Security,
you must manually assign a GWA Output for starter disable.
An external relay is required.
(Applicable to CORE 194+.)
9
933.TL15 1.13.198.9 2023 Toyota RAV4 Hybrid (Smart Key)
©2023 VOXX•DEI LLC. All rights reserved.
Starter (connector side)
Cut
Starter (vehicle side)
Starter Disable (connector side) : White/Brown: 4
Starter Disable (vehicle side): White: 5 & 11
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
