TASKING iSYSTEM iC5700 BlueBox User Manual page 8

Both the 10/100 Ethernet Socket (E) and the USB 3.0 Socket (F) can be connected to a network/PC
simultaneously. The active interface will be determined by whichever interface winIDEA connects to
first.

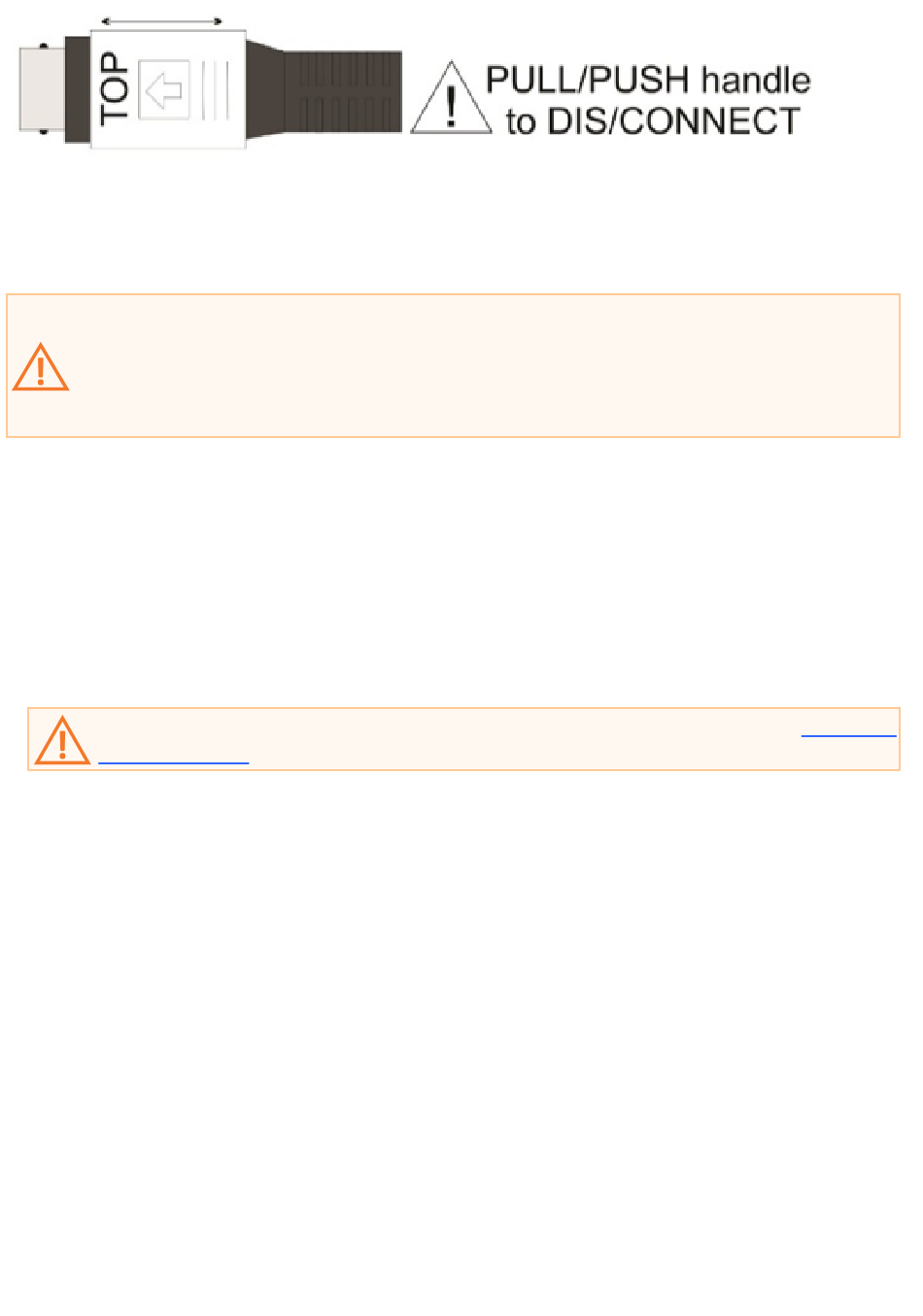

When powering on the system, switch the BlueBox unit on before powering on the Target.
When powering down the system, power off the Target before powering off the BlueBox unit!
FBridge port is not Ethernet port!
Use only original iSYSTEM accessories for powering and connecting with the BlueBox unit.
Consult with iSYSTEM before attempting to use any other accessory.
iC5700 with IOM6 Hub (optional):
I – Three additional FNet ports
J – System port
K – FBridge port (not Ethernet port!) provides synchronization between two iC5700 units
IOM6 Hub extends iC5700 with additional three FNet ports and one FBridge port. Through the
FBridge port run/stop control of two iC5700 can be synchronized. 1m long FBridge (Ethernet alike)
cable comes along the IOM6 HUB and connects to the FBridge port on each iC5700.
If you ordered the IOM6 Hub to extend the operation, please refer to the
installation guide that came with your IOM6 Hub package.
IOM6 Hub
