Summary of Product parts

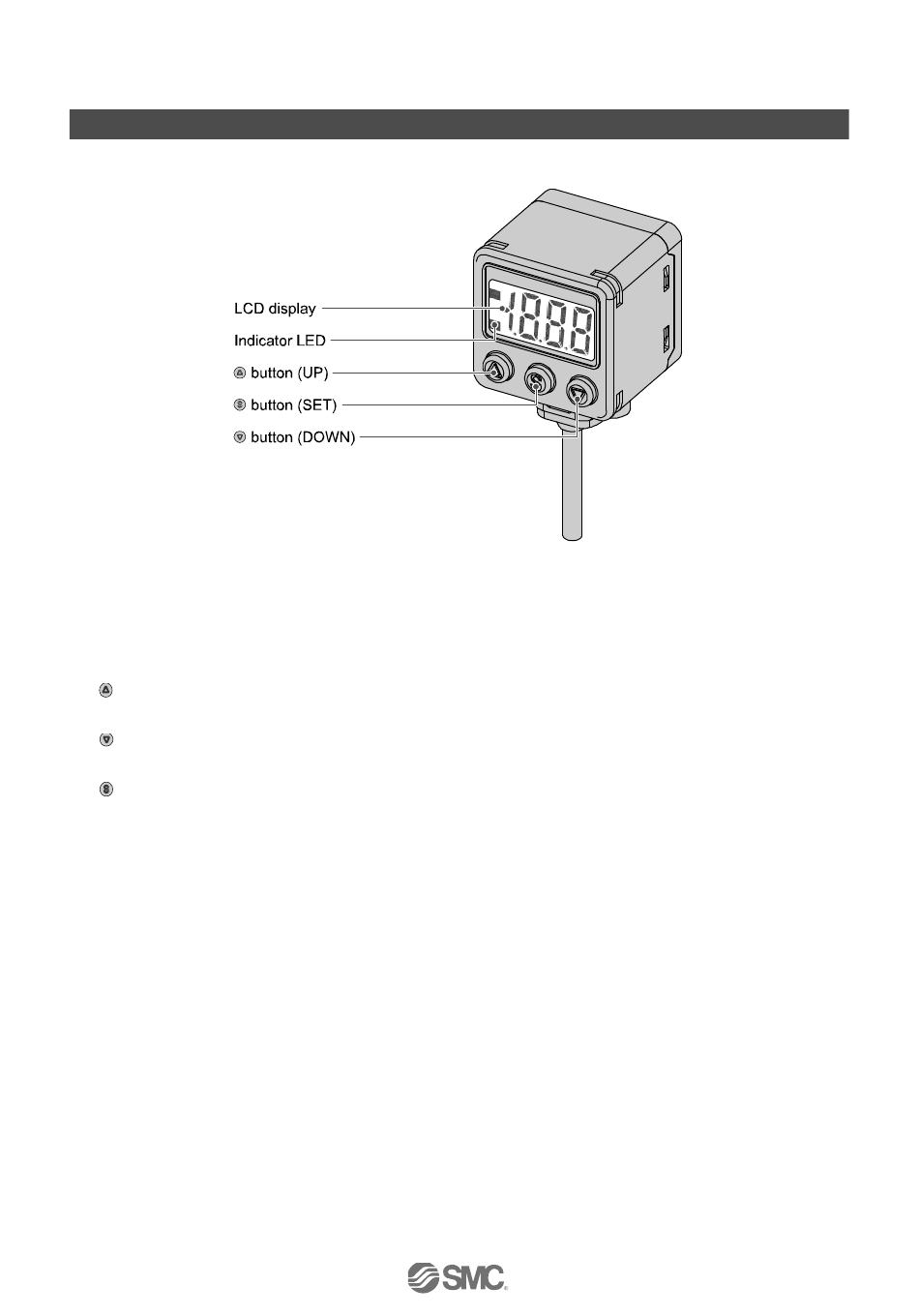

○Names of individual parts
Indicator LED (Orange LED): Displays the switch output condition.
LCD display: Displays the current status of pressure, setting mode and error code.
Four display modes can be selected: display always in red or green, or display changing
from green to red, or red to green, according to the output status.
button (UP): Selects the mode or increases the ON/OFF set value.
Press this button to change to the peak display mode.
button (DOWN): Selects the mode or decreases the ON/OFF set value.
Press this button to change to the bottom display mode.
button (SET): Press this button to change to another mode and to set a value.
