<Operation>

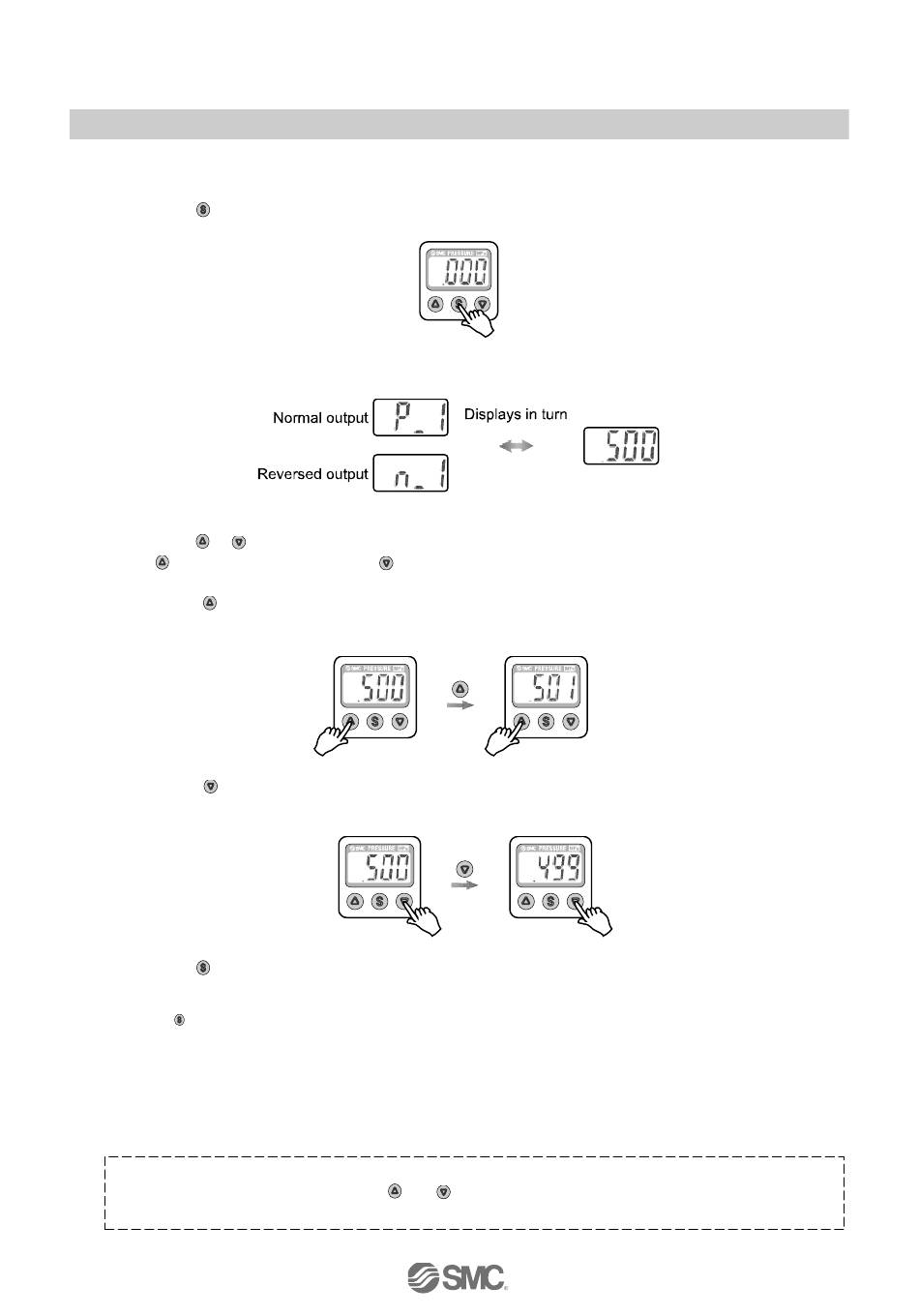

[Hysteresis mode]
1, Press the button once in measurement mode.
2, [P_1] or [n_1] and set value are displayed in turn.
3, Press the or button to change the set value.
The button is to increase and the
• Press the
button once to increase by one digit, and press it continuously to keep increasing the set
value.
•Press the
button once to decrease by one digit, and press it continuously to keep increasing the
set value.
4, Press the button to finish the setting of OUT1.
For models with 2 outputs, [P_2] or [n_2] will be displayed. Set as above.
∗: If the
button is pressed for 2 seconds or longer, the setting is fixed and measurement mode returns.
The switch operates within a set pressure range (from P1L to P1H) during window comparator mode. Set
P1L (switch lower limit) and P1H (switch upper limit) with the setting procedure above.
When reversed output is selected, [n1L] and [n1H] are displayed.
Zero clear of Display
The display is reset to zero when the
For the first operation, always perform zero clear with no pressure applied.
button is to decrease.
and buttons are pressed simultaneously for 1 second.
