Summary of Contents for SMC Networks ZSE2 Series

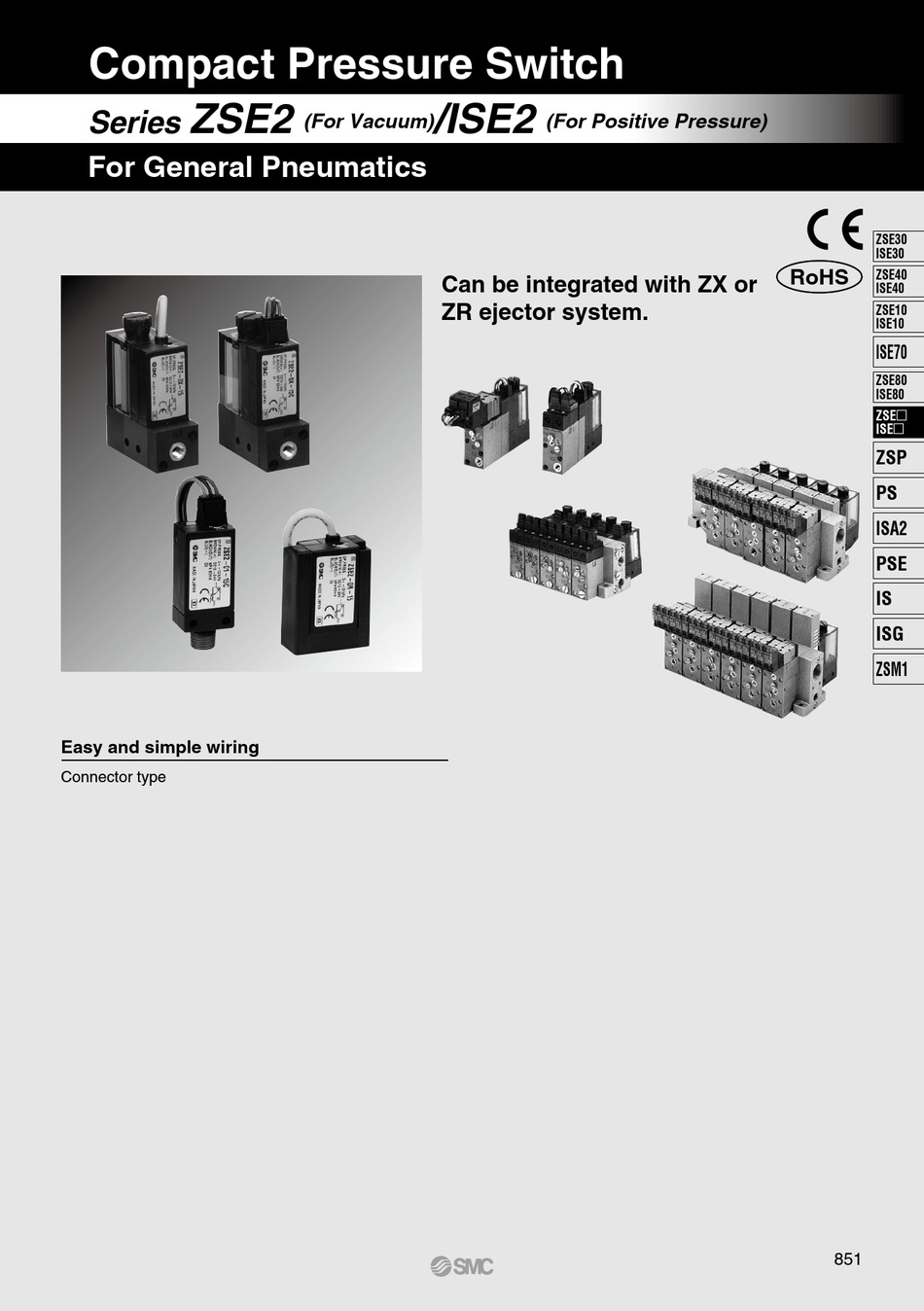

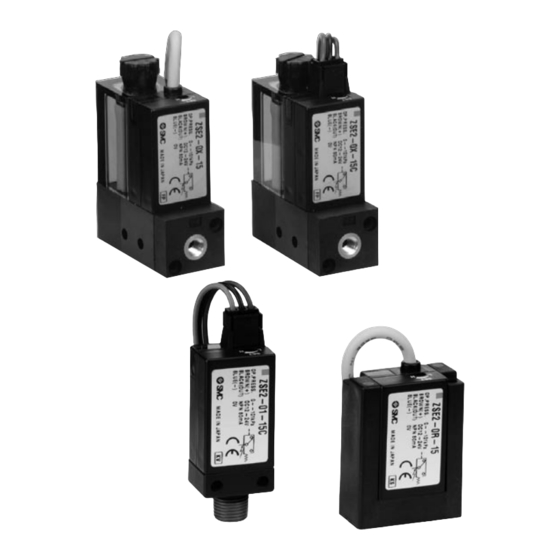

- Page 1 Compact Pressure Switch ZSE2 /ISE2 Series (For Vacuum) (For Positive Pressure) For General Pneumatics ZSE30 ISE30 RoHS ZSE40 Can be integrated with ZX or ISE40 ZR ejector system. ZSE10 ISE10 ISE70 ZSE80 ISE80 ZSE ZSE ISE ISE ISA2 ZSM1 Easy and simple wiring Connector type...
-
Page 2: How To Order
Compact Pressure Switch RoHS ZSE2/ISE2 Series How to Order Piping specifications Operating pressure range/ Setting pressure range Note 1) Single mounting R Note 1) Single mounting NPTF 0 to 1 MPa 0 to 100 kPa Note 1) M5 x 0.8 (female) threaded. Positive ISE2 pressure... -
Page 3: Output Specifications
ZSE2/ISE2 Series Compact Pressure Switch For details about the Pressure Switch Precautions, refer to pages 763 and 764. For details about the Specific Product Precautions, refer to the Operation Manual at SMC website. Click here for details. Specifications ZSE2 ISE2L ISE2 Model For vacuum... -
Page 4: Calibration Procedure
ZSE2/ISE2 Series Calibration Procedure How to Use Connector Internal Circuits and Wiring Examples • 1. Attaching and detaching connectors Set the ON-pressure by the pressure setting trimmer. Turning clockwise can set the high • When assembling the connector to the switch NPN (1 output) pressure/high vacuum pressure. - Page 5 ZSE2/ISE2 Series Compact Pressure Switch Dimensions With Suction Filter: ZSE2-0X Grommet type: ZSE2-0X -15 Indicator light (Red) ZSE30 ISE30 ZSE40 Vacuum pad Vacuum ISE40 connection port supply port ZSE10 35.6 Pressure setting trimmer ISE10 Pneumatic circuit ISE70 ZSE80 ISE80 ZSE...
- Page 6 ZSE2/ISE2 Series Dimensions Standard Type: ZSE2- Grommet type: ZSE2- Connector type: ZSE2- -15C Pressure setting trimmer Pressure setting trimmer Indicator light (Red) Indicator light (Red) 2 x ø3.5 Piping port 2 x ø3.5 Piping port 01: R 1/8 01: R 1/8 Mounting hole M5 x 0.8 depth 5 Mounting hole...
- Page 7 ZSE2/ISE2 Series Compact Pressure Switch Dimensions ISE2- Grommet type: ISE2- Connector type: ISE2- -15C ZSE30 ISE30 Pressure setting trimmer Pressure setting trimmer ZSE40 ISE40 ZSE10 ISE10 Indicator light (Red) Indicator light (Red) ISE70 ZSE80 ISE80 ZSE ZSE ISE ISE ISA2 2 x ø3.5 2 x ø3.5 Piping port...
